01 - Cooktop Parts

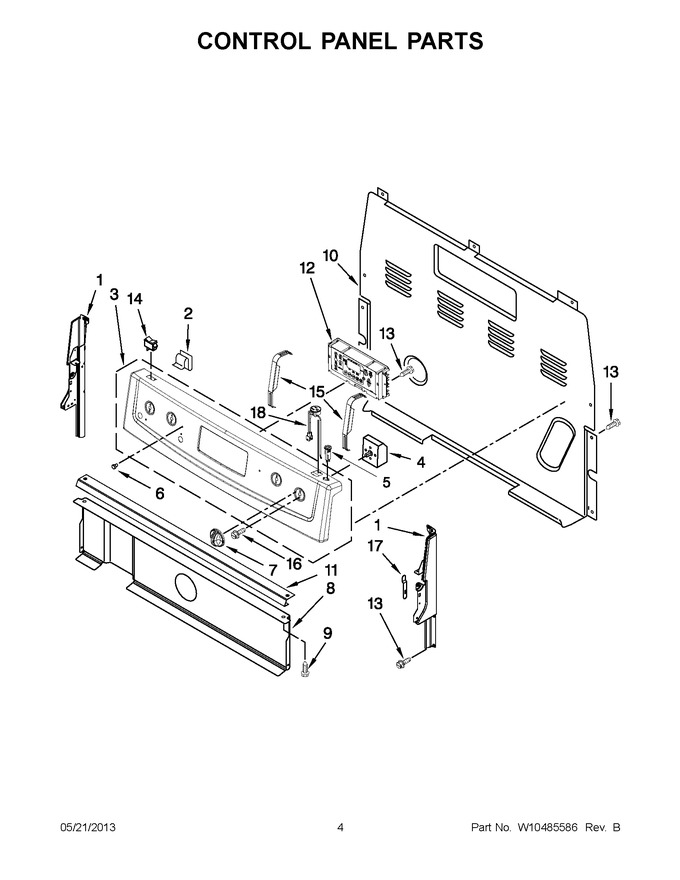

02 - Control Panel Parts
03 - Drawer And Broiler Parts
04 - Chassis Parts
05 - Door Parts
06 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11219365 | Endcap (white (left Hand)) (Replaces: W10184433) |
|
$ 42.45 | |||||
| 1 | W11219665 | Endcap (black (right Hand)) (Replaces: W10184438) |
|
$ 45.17 | |||||
| 1 | W11219664 | Endcap (black (left Hand)) (Replaces: W10184437) |
|
$ 153.83 | |||||
| 1 | W11219370 | Endcap (white (right Hand)) (Replaces: W10184434) |
|
$ 60.83 | |||||
| 2 | WP8273564 | Clip, Rear Upper Cover (Replaces: 8273564) |
|
$ 12.66 | |||||
| 3 | W10292028 | Panel, Control (stainless) |
|
$ 156.60 | |||||
| 3 | W10292026 | Panel, Control (white) |
|
$ 105.45 | |||||
| 3 | W10292027 | Panel, Control (black) |
|
$ 93.05 | |||||
| 4 | WPW10434452 | Switch, Infinite Dual (left Front & Right Front) (Replaces: W10434452) |
|
Immediately | $ 140.84 | ||||
| 4 | 5500-287 | Switch, Infinite (right Rear & Left Rear) (Replaces: 3148951) |
|
Immediately | $ 52.39 | ||||
| 5 | W10849725 | Receptacle (white) (Replaces: W10203476) |
|
Immediately | $ 80.79 | ||||
| 5 | W10861164 | Receptacle (black) (Replaces: W10203475) |
|
Immediately | $ 18.47 | ||||
| 6 | WP3196068 | Lens, Indicator (Replaces: 3196068) |
|
Immediately | $ 6.26 | ||||
| 7 | WPW10211371 | Knob, Infinite (white) (Replaces: W10211371) |
|
Immediately | $ 21.23 | ||||
| 7 | W11193834 | Knob, Infinite (black) (Replaces: W10211372) |
|
$ 88.98 | |||||
| 8 | W10134247 | Shield, Heat |
|
Immediately | $ 358.82 | ||||
| 9 | WP3196175 | Screw (Replaces: 3196165) |
|
Immediately | $ 7.55 | ||||
| 10 | WP8272473 | Cover, Upper Rear (Replaces: 8272473) |
|
$ 219.04 | |||||
| 11 | W10525121 | Bracket, Console Mounting |
|
$ 98.85 | |||||
| 12 | WPW10476388 | Control, Range (white) (Replaces: W10476388) |
|
$ 332.09 | |||||
| 12 | WPW10476387 | Control, Range (black) (Replaces: W10476387) |
|
$ 433.90 | |||||
| 13 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 14.72 | ||||
| 14 | WP4314961 | Switch, Rocker (black) (Replaces: 3148564) |
|
$ 93.95 | |||||
| 14 | 3149360 | Switch, Rocker (white) |
|
$ 89.01 | |||||
| 15 | W11230932 | Bracket, Control (Replaces: W10324410) |
|
Immediately | $ 84.81 | ||||
| 16 | WP3400882 | Screw (Replaces: 3400882) |
|
Immediately | $ 7.55 | ||||
| 17 | 3196200 | Clip, Spring |
|
$ 10.45 | |||||
| 18 | WP9757602 | Breaker, Circuit (black) (Replaces: 9757602) |
|
Immediately | $ 53.81 | ||||
| 18 | WP9757601 | Breaker, Circuit (white) (Replaces: 9757601) |
|
Immediately | $ 65.55 |
