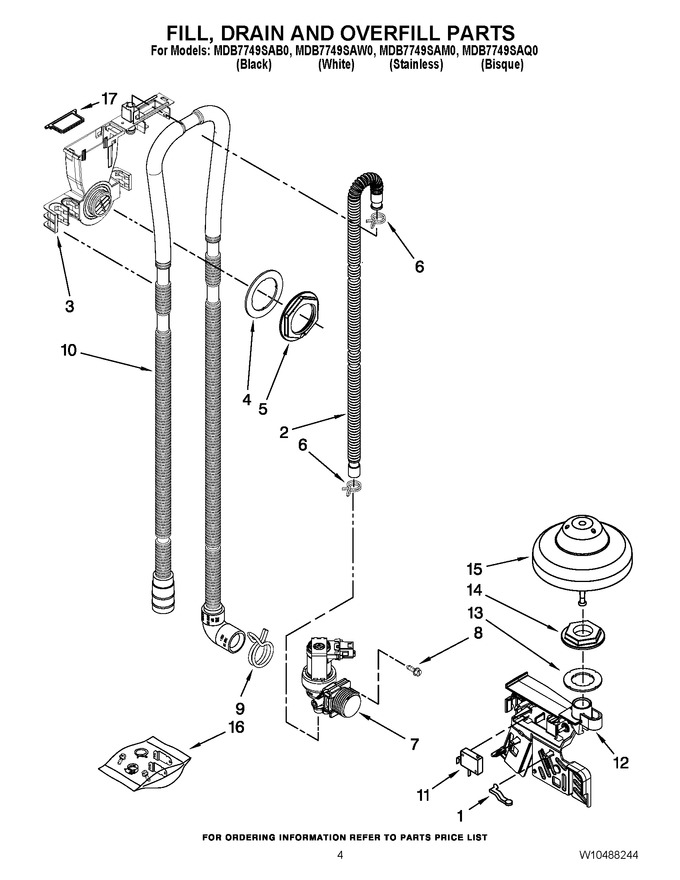

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10195037 | Lever, Overflow Switch (Replaces: W10195037) |
|
Immediately | $ 11.18 | ||||
| 2 | W10878507 | Hose, Inlet (Replaces: 8531412) |
|
Immediately | $ 77.06 | ||||
| 3 | W10316375 | Water Inlet (also Order Item 4) |
|
$ 86.40 | |||||
| 4 | WP8531323 | Gasket (Replaces: 8531323) |
|
Immediately | $ 39.11 | ||||
| 5 | WPW10213825 | Nut, Inlet (also Order Item 4) (Replaces: W10213825) |
|
$ 7.79 | |||||
| 6 | WP596669 | Clamp, Hose (Replaces: 371505) |
|
Immediately | $ 8.40 | ||||
| 7 | W11175771 | Fill Valve Assembly (Replaces: W10195047) |
|
Immediately | $ 73.69 | ||||
| 8 | WP489069 | Screw (Replaces: 304392) |
|
Immediately | $ 7.86 | ||||
| 9 | WP285655 | Clamp, Hose (Replaces: 370445) |
|
Immediately | $ 8.39 | ||||
| 10 | WPW10545278 | Drain Loop With Check Valve (Replaces: W10195750) |
|
Immediately | $ 74.41 | ||||
| 11 | WPW10195039 | Switch, Overfill (Replaces: W10195039) |
|
Immediately | $ 73.73 | ||||
| 12 | W10873429 | Housing, Overfill (Replaces: W10195035) |
|
Immediately | $ 24.20 | ||||
| 13 | WP8531743 | Gasket, Flat (Replaces: 8531743) |
|
Immediately | $ 47.27 | ||||
| 14 | WPW10195038 | Nut, Standpipe (Replaces: W10195038) |
|
Immediately | $ 7.82 | ||||
| 15 | WPW10195036 | Float & Retainer Assembly (Replaces: W10195036) |
|
Immediately | $ 84.17 | ||||
| 16 | WPW10292152 | Miscellaneous Parts Bag (incl. 2 Screws, 2 Hose Clamps, & Undercounter Brkt) (Replaces: W10292152) |
|
Immediately | $ 43.90 | ||||
| 17 | W10316376 | Flapper |
|
$ 21.09 |
