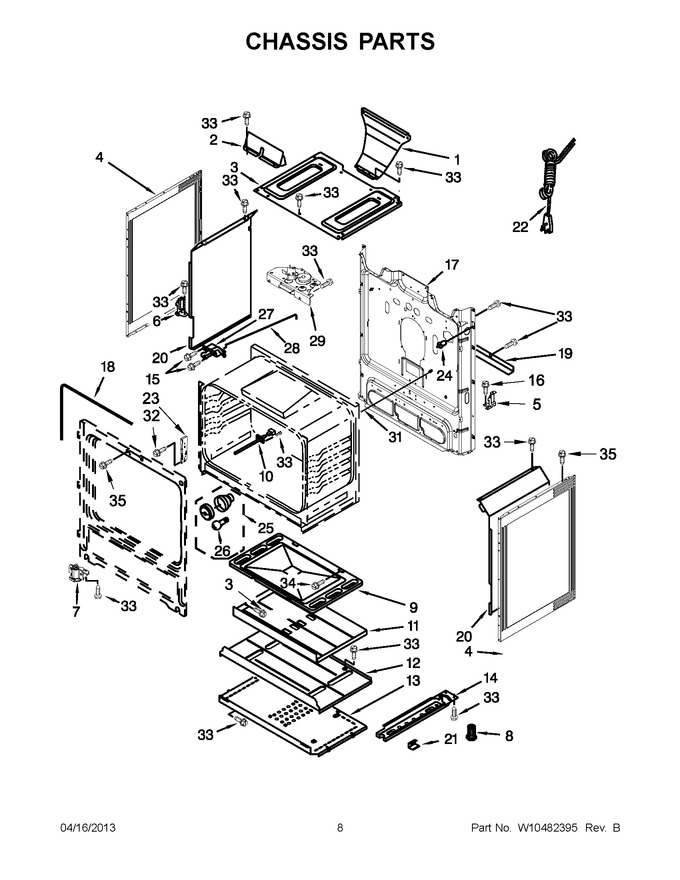

01 - Cooktop Parts
02 - Control Panel Parts
03 - Manifold Parts
04 - Chassis Parts
05 - Door Parts
06 - Drawer Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11457094 | Box, Flue (Replaces: W10153186) |
|
$ 157.80 | |||||
| 2 | WP8272747 | Shield, Flue (Replaces: 8272747) |
|
$ 74.51 | |||||
| 3 | W11379351 | Box, Burner (Replaces: 8273036) |
|
$ 64.19 | |||||
| 4 | WPW10575396 | Panel, Side (white) (Replaces: W10322769) |
|
$ 148.71 | |||||
| 4 | W10295597 | Panel, Side (black) |
|
- | |||||
| 4 | W10162246 | Panel, Side (biscuit) (Replaces: W10388548) |
|
$ 205.91 | |||||
| 5 | 8523249 | Bracket, Manifold |
|
- | |||||
| 6 | W11233072 | Screw (Replaces: 3196176) |
|
Immediately | $ 14.72 | ||||
| 7 | WPW10341186 | Assembly, Front Foot (Replaces: W10341186) |
|
Immediately | $ 32.59 | ||||
| 8 | WPW10058460 | Foot, Leveling (Replaces: W10058460) |
|
Immediately | $ 8.24 | ||||
| 9 | W11730226 | Bottom, Oven (Replaces: 3195097) |
|
$ 231.05 | |||||
| 10 | WPW10181986 | Sensor, Oven (Replaces: W10181986) |
|
Immediately | $ 106.83 | ||||
| 11 | 8053967 | Baffle, Burner Oven |
|
$ 315.96 | |||||
| 12 | 8053969 | Shield, Heat |
|
$ 113.04 | |||||
| 13 | 8053968 | Shield, Lower |
|
- | |||||
| 14 | W11818353 | Assembly, Base Rail (left) (Replaces: W10390008) |
|
$ 62.66 | |||||
| 14 | W11818353 | Assembly, Base Rail (right) (Replaces: W10390007) |
|
$ 62.66 | |||||
| 15 | W11169708 | Screw (Replaces: 3196560) |
|
$ 13.36 | |||||
| 16 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.95 | ||||
| 17 | W10224919 | Back, Main |
|
$ 256.41 | |||||
| 18 | W11542153 | Seal, Door (Replaces: 8522416) |
|
Immediately | $ 50.20 | ||||
| 19 | W10435470 | Brace, Main Back |
|
$ 81.74 | |||||
| 20 | 9761448 | Retainer, Insulation Right |
|
- | |||||
| 20 | 9761449 | Retainer, Insulation Left |
|
$ 333.51 | |||||
| 21 | W10137382 | Clip, Glass |
|
Immediately | $ 48.42 | ||||
| 22 | W11582239 | Cord, Power (Replaces: 9757891) |
|
$ 17.59 | |||||
| 23 | W10647259 | Receiver, Hinge (Replaces: W10289077) |
|
Immediately | $ 9.32 | ||||
| 24 | WP9757262 | Switch, Door (Replaces: 9757262) |
|
Immediately | $ 144.44 | ||||
| 25 | W11594027 | Socket, Light (Replaces: 3196701) |
|
Immediately | $ 87.01 | ||||
| 26 | 8009 | Bulb, Oven Light (Replaces: 311255) |
|
Immediately | $ 18.67 | ||||
| 27 | WP9761013 | Assembly, Door Latch (front) (Replaces: 9761013) |
|
$ 256.36 | |||||
| 28 | W10078370 | Rod, Push (latch) |
|
$ 95.24 | |||||
| 29 | WPW10107820 | Assembly, Latch Rear (Replaces: W10107820) |
|
$ 309.55 | |||||
| 31 | 9757239 | Rod, Door Switch |
|
$ 96.37 | |||||
| 32 | W10777162 | Screw (Replaces: W10031780) |
|
Immediately | $ 8.26 | ||||
| 33 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 14.72 | ||||
| 34 | W10379120 | Screw |
|
- | |||||
| 35 | WP3196175 | Screw (Replaces: 3196165) |
|
Immediately | $ 7.55 | ||||
| NI | W11684915 | Insulation, Wrap (Replaces: 8524099) |
|
$ 123.64 | |||||
| NI | W11688737 | Insulation, Back (Replaces: W10180437) |
|
$ 122.73 |
