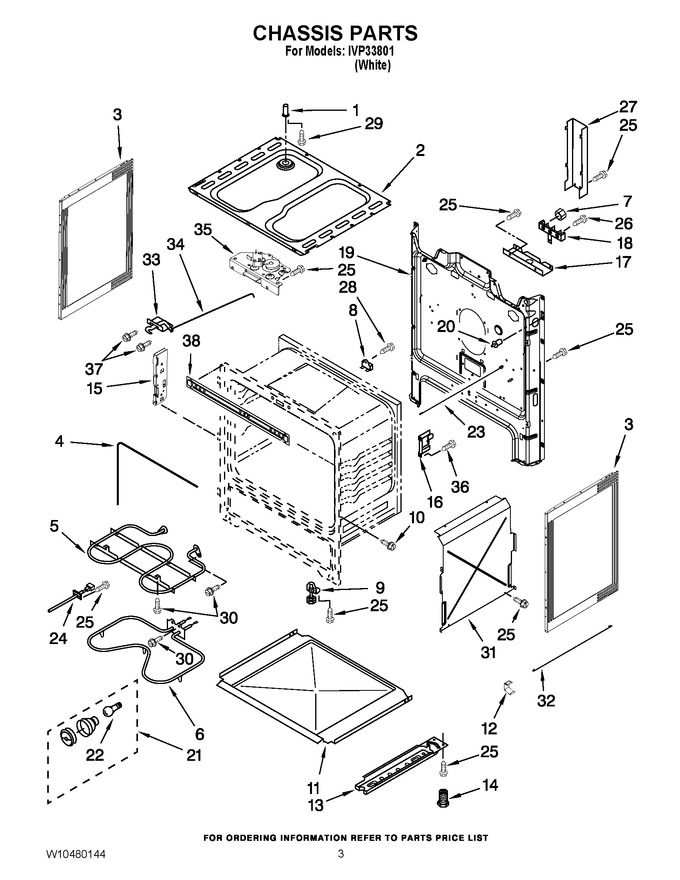

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11222268 | Vent Tube (Replaces: 9755804) |
|
$ 104.30 | |||||
| 2 | W11699791 | Box, Burner (Replaces: W10209613) |
|
$ 262.30 | |||||
| 3 | WPW10575396 | Panel, Side (white-textured) (Replaces: W10322769) |
|
$ 148.71 | |||||
| 4 | W11542153 | Seal, Oven Door (Replaces: 8522416) |
|
Immediately | $ 50.20 | ||||
| 5 | W10856603 | Element, Broil (Replaces: W10308476) |
|
Immediately | $ 154.62 | ||||
| 6 | WPW10308477 | Element, Bake (Replaces: W10308477) |
|
Immediately | $ 71.86 | ||||
| 7 | WP7103P027-60 | Nut (Replaces: 7103P027-60) |
|
Immediately | $ 7.55 | ||||
| 8 | WP3196548 | Fuse, Thermal (Replaces: 3196548) |
|
Immediately | $ 50.10 | ||||
| 9 | WPW10341186 | Foot, Front (Replaces: W10341186) |
|
Immediately | $ 32.59 | ||||
| 10 | WPW10067840 | Screw (Replaces: W10067840) |
|
$ 8.30 | |||||
| 11 | WP8054068 | Tray, Insulation (Replaces: 8054068) |
|
$ 104.36 | |||||
| 12 | W10137382 | Clip, Panel |
|
Immediately | $ 48.42 | ||||
| 13 | W11818353 | Rail, Base (right Hand) (Replaces: W10390007) |
|
$ 62.66 | |||||
| 13 | W11818353 | Rail, Base (left Hand) (Replaces: W10390008) |
|
$ 62.66 | |||||
| 14 | WPW10058460 | Foot, Rear (Replaces: W10058460) |
|
Immediately | $ 8.24 | ||||
| 15 | W10647259 | Brkt-mntg,dr Hinge (Replaces: W10289077) |
|
Immediately | $ 9.32 | ||||
| 16 | W10404688 | Support, Oven (Replaces: W10355173) |
|
$ 17.69 | |||||
| 17 | W11763591 | Bracket, Service (Replaces: 3186034) |
|
- | |||||
| 18 | WP8203546 | Block, Terminal (Replaces: W10246624) |
|
Immediately | $ 30.13 | ||||
| 19 | W10289149 | Back, Main |
|
$ 72.39 | |||||
| 20 | WP9757262 | Switch, Door (Replaces: 9757262) |
|
Immediately | $ 144.44 | ||||
| 21 | W11594027 | Light Socket Assy (Replaces: W10454648) |
|
Immediately | $ 87.01 | ||||
| 22 | 8009 | Bulb, Oven Light (Replaces: 311255) |
|
Immediately | $ 18.67 | ||||
| 23 | 9757239 | Rod - Door Switch, Rear Mount |
|
$ 96.37 | |||||
| 24 | WPW10181986 | Sensor, Oven (Replaces: W10181986) |
|
Immediately | $ 106.83 | ||||
| 25 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 14.72 | ||||
| 26 | WP3400016 | Screw (Replaces: 3400016) |
|
$ 8.39 | |||||
| 27 | WPW10326122 | Cover, Box (Replaces: W10326122) |
|
$ 139.60 | |||||
| 28 | 3196172 | Screw |
|
Immediately | $ 13.47 | ||||
| 29 | WP3196567 | Screw (Replaces: 3196567) |
|
$ 8.06 | |||||
| 30 | WP3196174 | Screw (Replaces: 3196174) |
|
Immediately | $ 8.44 | ||||
| 31 | W10450380 | Retainer, Side (Replaces: 9758238) |
|
- | |||||
| 32 | W10727426 | Rod, Insl Retainer (Replaces: W10196451) |
|
Immediately | $ 85.10 | ||||
| 33 | WP9761013 | Latch, Door (Replaces: 9761013) |
|
$ 256.36 | |||||
| 34 | W10078380 | Rod, Latch |
|
$ 94.91 | |||||
| 35 | WPW10107820 | Latch Asy, Rear (Replaces: W10107820) |
|
$ 309.55 | |||||
| 36 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.95 | ||||
| 37 | W11169708 | Screw (Replaces: 3196560) |
|
$ 13.36 | |||||
| 38 | 9780585 | Guard, Wire |
|
$ 35.21 | |||||
| NI | WPW10208653 | Insulation, Wrap (Replaces: W10208653) |
|
Immediately | $ 55.47 | ||||
| NI | W11311894 | Insulation, Back (Replaces: 8272612) |
|
$ 115.11 |
