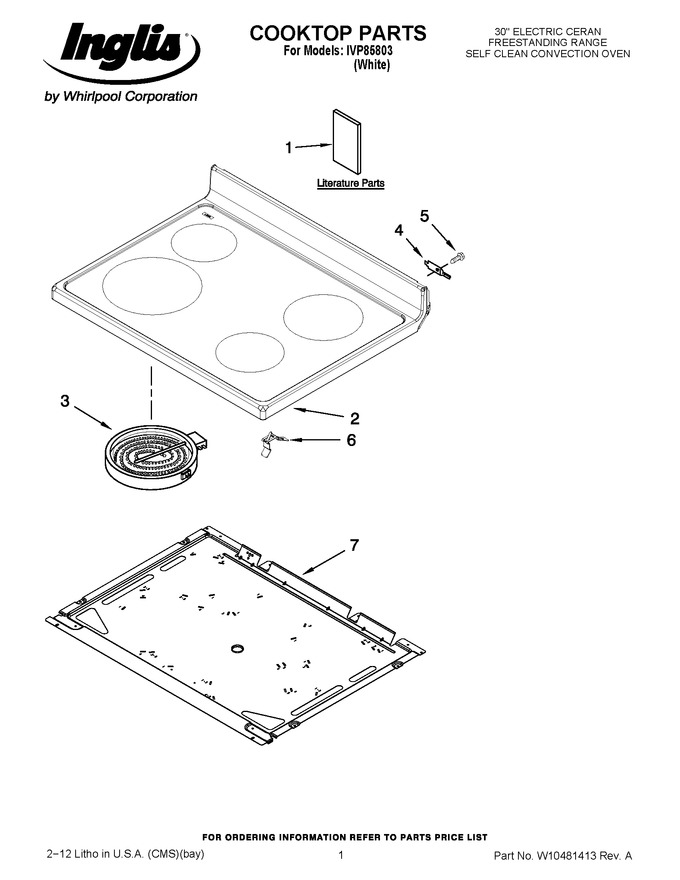

01 - Cooktop Parts
02 - Control Panel Parts
03 - Chassis Parts
04 - Drawer & Rack Parts
05 - Door Parts
06 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10419397 | Owners Manual |
|
- | |||||
| 1 | W10434979 | Tech Sheet (english) |
|
- | |||||
| 1 | W10434980 | Tech Sheet (french) |
|
- | |||||
| 1 | W10403812 | Installation Instructions (english/french) |
|
- | |||||
| 1 | 9762761 | Brochure, Tips Safe Cooking (english) |
|
- | |||||
| 1 | W10065852 | Brochure, Tips Safe Cooking (french) |
|
- | |||||
| 2 | WPW10254671 | Cooktop (Replaces: W10202166) |
|
$ 715.27 | |||||
| 3 | W11517959 | Element, Surface (2400/1200 W - Lf) (Replaces: W10275048) |
|
Immediately | $ 134.44 | ||||
| 3 | W10823711 | Element, Surface (1200w Rf-lr) (Replaces: 8523698) |
|
Immediately | $ 204.39 | ||||
| 3 | WP8273993 | Element, Surface (1800 W - Lr) (Replaces: 8273993) |
|
Immediately | $ 244.51 | ||||
| 4 | WP3195060 | Hinge, Cooktop (Replaces: 3195060) |
|
Immediately | $ 13.18 | ||||
| 5 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.95 | ||||
| 6 | WPW10225448 | Spring, Locator (Replaces: W10225448) |
|
Immediately | $ 10.40 | ||||
| 7 | W11728329 | Pan, Radiant Element (Replaces: W10106409) |
|
Immediately | $ 143.49 |
