Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart

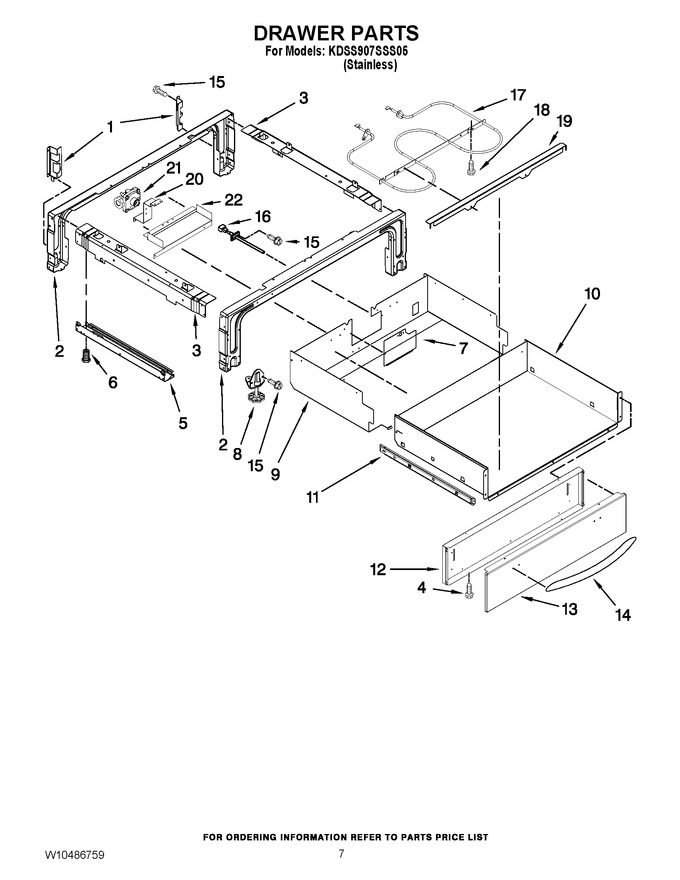

1	9757686		Support, Drawer Rail (left)				$ 38.48
1	9757687		Support, Drawer Rail (right)				$ 38.36
2	9763501BL		Support, Front & Rear				$ 43.72
3	4453721		Brace, Drawer (left)				$ 34.27
3	4453720		Brace, Drawer (right)				$ 34.27
4	WP3196557		Screw   (Replaces: 3196537)			Immediately	$ 7.95
5	9759954		Side, Base (left)				$ 88.47
5	9759953		Side, Base (right)				$ 108.70
6	WPW10058460		Foot   (Replaces: W10058460)			Immediately	$ 8.24
7	W10153099		Cover, Access		Appelez-nous	-
8	WP3196037		Foot Assembly   (Replaces: 3196037)				$ 87.12
9	9761796		Enclosure, Warming Drawer				$ 78.12
10	W10164163		Drawer				$ 163.91
11	W10155633		Guide, Roller Includes Roller (right)				$ 60.39
11	WPW10155632		Guide, Roller Includes Roller (left)   (Replaces: W10155632)				$ 108.71
12	W10164169		Panel, Drawer		Appelez-nous	-
13	W10203763		Front, Drawer				$ 99.87
14	W10292374		Handle, Drawer				$ 100.87
15	WP7101P434-60		Screw   (Replaces: 7101P434-60)				$ 7.30
16	WP8274149		Thermistor   (Replaces: 8274149)			Immediately	$ 192.05
17	W10207401		Element, Warming				$ 105.28
18	7101P436-60		Screw		Appelez-nous	-
19	9758676		Support, Element		Appelez-nous	-
20	W10171411		Bracket, Regulator				$ 36.66
21	W10108850		Regulator				$ 202.17
22	W10153100		Cover, Terminal		Appelez-nous	-
