00 - Cover Page

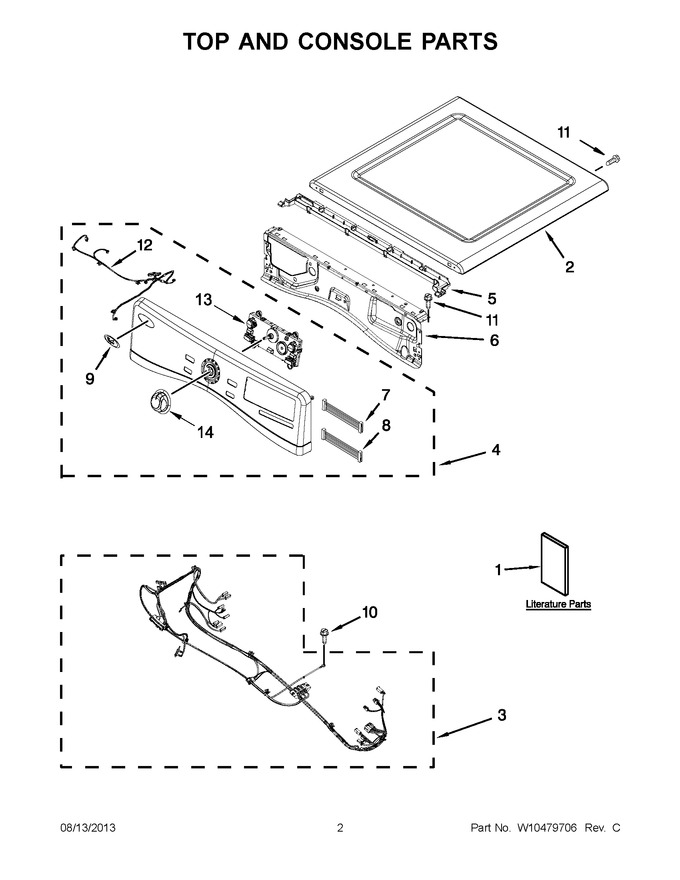

01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts


04 - Door Parts


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10267280		Wiring Diagram		Appelez-nous	-
1	W10420005		Tech Sheet		Appelez-nous	-
1	W10423118		Installation, Instruction		Appelez-nous	-
1	W10305730		Use And Care Guide		Appelez-nous	-
2	WPW10316282		Top (silver)   (Replaces: W10316282)				$ 346.19
2	WPW10208383		Top (white)   (Replaces: W10208383)				$ 323.93
2	W10337792		Top (red)				$ 136.71
3	W10441589		Harness, Main		Appelez-nous	-
4	W10464682		Panel, Console (white)		Appelez-nous	-
4	WPW10464684		Panel, Console (red)   (Replaces: W10464684)				$ 613.37
4	WPW10464683		Panel, Console (silver)   (Replaces: W10464683)				$ 757.66
5	WPW10653575		Water Channel   (Replaces: W10259210)				$ 90.94
6	W11480682		Bracket, Console   (Replaces: W10208198)				$ 81.21
7	W10267938		Harness, Jumper Ui		Appelez-nous	-
8	W10267937		Harness, Jumper		Appelez-nous	-
9	W10117943		Badge		Appelez-nous	-
10	WP693995		Screw   (Replaces: 693995)			Immediately	$ 7.55
11	WP488729		Screw   (Replaces: 3390647)			Immediately	$ 8.28
12	W10450060		Cable, User Interface		Appelez-nous	-
13	W10389281		Ui, Center (includes Knob)		Appelez-nous	-
14	WPW10251394		Knob Assembly (chrome)   (Replaces: W10251394)				$ 55.94
