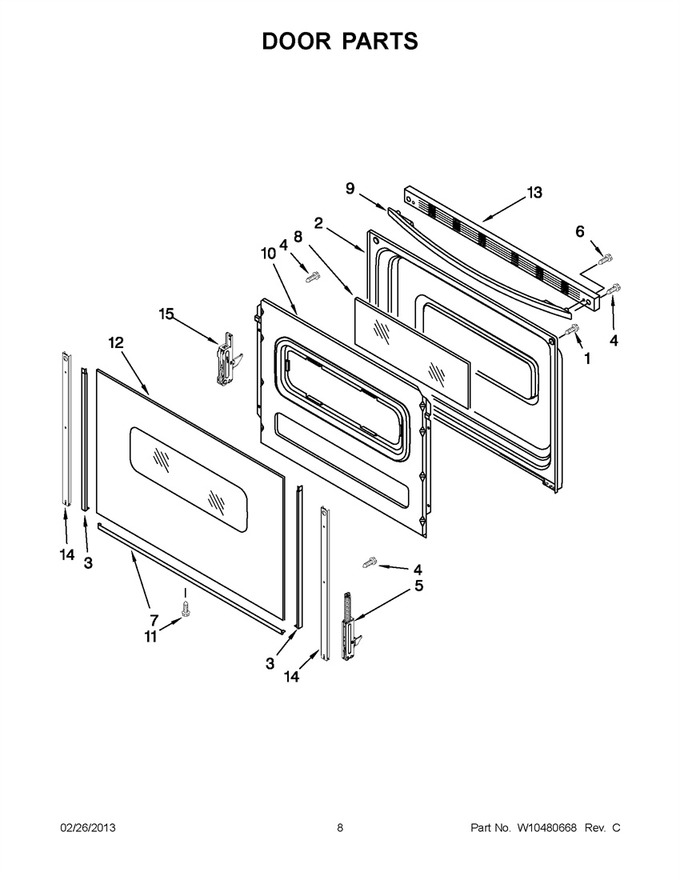

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10031790		Screw   (Replaces: W10031790)			Immediately	$ 8.74
2	9761340		Liner, Door				$ 361.12
3	W10761018		Trim, Door (black Left Hand)   (Replaces: 8523171)			Immediately	$ 53.77
3	W10761014		Trim, Door (black Right Hand)   (Replaces: 8523165)			Immediately	$ 72.96
3	WP8523172		Trim, Door (white Left Hand)   (Replaces: 8523172)			Immediately	$ 69.93
3	WP8523166		Trim, Door (white Right Hand)   (Replaces: 8523166)			Immediately	$ 84.23
4	WPW10200660		Screw   (Replaces: W10200660)			Immediately	$ 8.24
5	WPW10299225		Hinge (active)   (Replaces: W10299225)			Immediately	$ 52.34
5	WPW10299227		Hinge (passive)   (Replaces: W10299227)			Immediately	$ 70.74
6	WPW10465148		Screw   (Replaces: W10465148)			Immediately	$ 8.79
7	W11594186		Trim, Lower Door (white)   (Replaces: 8523175)			Immediately	$ 61.37
7	WP8523177		Trim, Lower Door (black)   (Replaces: 8523177)			Immediately	$ 165.86
8	WP9758163		Inner, Glass   (Replaces: 9758163)				$ 162.12
9	W10300489		Handle, Oven Door (white)			Immediately	$ 244.88
9	W10300490		Handle, Oven Door (black)			Immediately	$ 156.75
10	9761500		Reatiner, Insul.				$ 325.62
11	WP3196175		Screw   (Replaces: 3196165)			Immediately	$ 7.55
12	WP9762477		Glass, Window (black)   (Replaces: 9762477)				$ 330.12
12	WP9762476		Glass, Window (white)   (Replaces: 9762476)				$ 332.66
13	WPW10310922		Trim, Oven Door Vent (black)   (Replaces: W10310922)			Immediately	$ 175.37
13	W10817433		Trim, Oven Door Vent (white)   (Replaces: W10310920)			Immediately	$ 103.27
14	W11502236		Strap, Door   (Replaces: W10113759)			Immediately	$ 27.68
