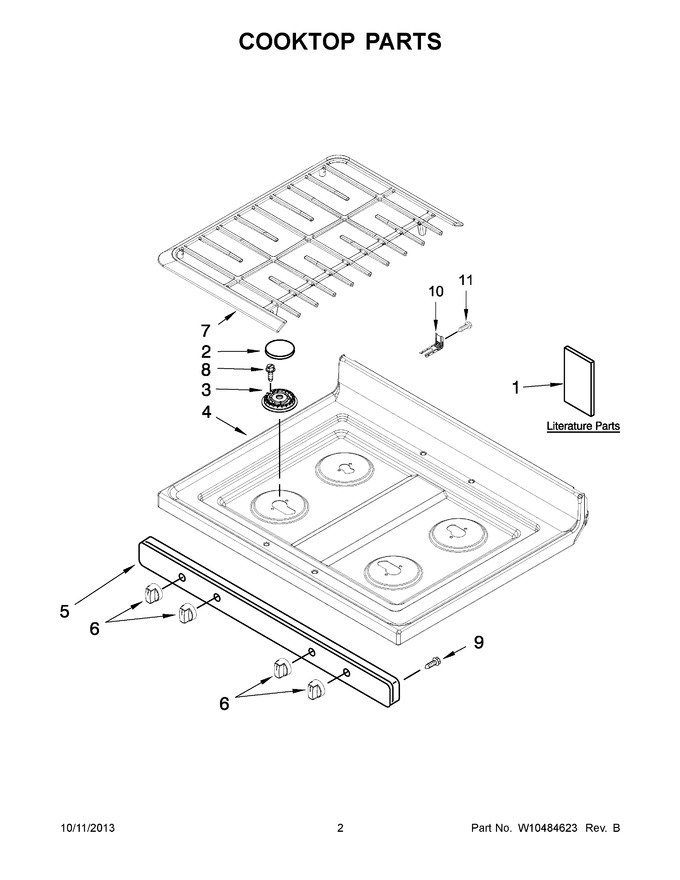

02 - Cooktop Parts


03 - Control Panel Parts


04 - Manifold Parts


05 - Chassis Parts


06 - Drawer And Broiler Parts


07 - Door Parts


08 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10394387		Guide, Use And Care		Appelez-nous	-
1	W10357517		Tech Sheet (english)		Appelez-nous	-
1	9762761		Tips, Safe Cooking (english)		Appelez-nous	-
1	W10526974		Installation Instructions		Appelez-nous	-
2	WPW10183375		Set, Burner Cap (black)   (Replaces: W10183375)				$ 154.94
3	WPW10406243		Burner Head, Auxiliary (6k) (right Rear)   (Replaces: W10406243)			Immediately	$ 39.08
3	WPW10406283		Burner Head, Semi (9.5k) (left Rear)   (Replaces: W10406283)				$ 78.02
3	WPW10406878		Burner Head, Ultra Rapid (17.5k) (left Front & Right Front)   (Replaces: W10406878)				$ 107.48
4	W10366732		Cooktop (black)		Appelez-nous	-
4	W10366731		Cooktop (white)		Appelez-nous	-
5	W10444446		Panel, Manifold (white)				$ 292.47
5	W10444447		Panel, Manifold (black)		Appelez-nous	-
6	WPW10339442		Knob, Control (black)   (Replaces: W10339442)			Immediately	$ 18.09
6	WPW10339443		Knob, Control (white)   (Replaces: W10339443)				$ 21.54
7	W11394363		Grate, Set (black)   (Replaces: W10447923)				$ 369.06
8	WP3368921		Screw   (Replaces: 3400701)			Immediately	$ 8.56
9	WP3196557		Screw   (Replaces: 3196557)			Immediately	$ 7.95
10	W11839019		Bracket, Anti-tip   (Replaces: W10306542)			Immediately	$ 28.54
11	WP7101P485-60		Screw, Anti-tip   (Replaces: 7101P485-60)				$ 30.72
