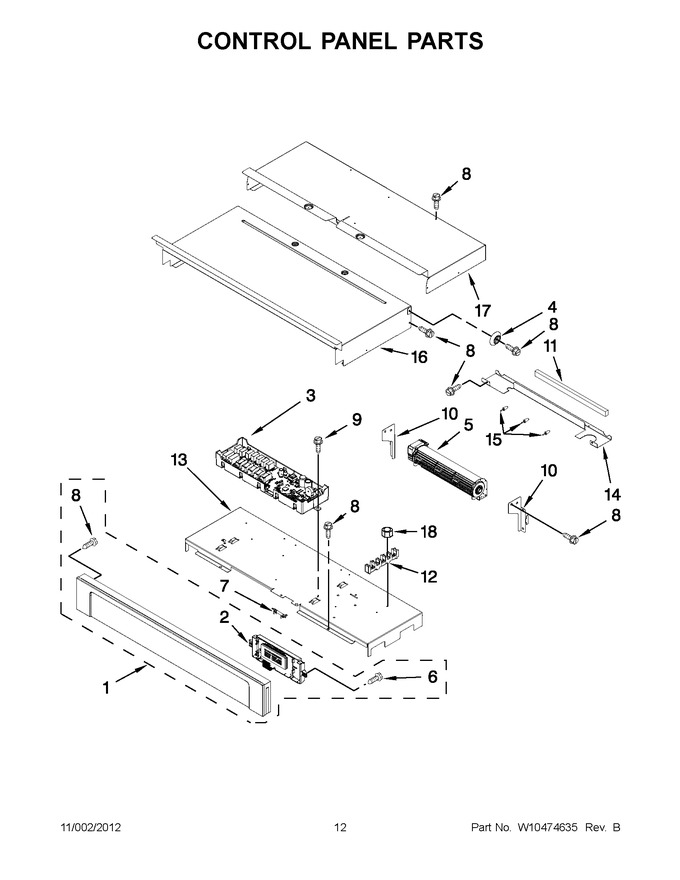

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10861649		Assembly, Control Panel (includes Overlay) (black)   (Replaces: W10329395)				$ 748.72
1	WPW10329396		Assembly, Control Panel (includes Overlay) (white)   (Replaces: W10329396)				$ 346.70
1	W10329397		Assembly, Control Panel (includes Overlay) (biscuit)		Appelez-nous	-
1	W10864422		Assembly, Control Panel (includes Overlay) (stainless)   (Replaces: W10329394)		Appelez-nous	-
2	W10286216		Board, Mrc2 Display		Appelez-nous	-
3	W10550509		Board, Mrc2 Main   (Replaces: W10527851)				$ 529.92
4	W10363824		Spacer, Lateral		Appelez-nous	-
5	W10286217		Blower				$ 208.35
6	WP12990527		Screw   (Replaces: 7101P403-60)			Immediately	$ 8.76
7	WPW10545291		Fuse, Thermal   (Replaces: W10436435)			Immediately	$ 35.50
8	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 8.25
9	WP7101P434-60		Screw   (Replaces: 7101P434-60)				$ 7.30
10	W10351257		Bracket, Blower (left)		Appelez-nous	-
10	W10283078		Bracket, Blower (right)		Appelez-nous	-
11	W10491987		Block, Foam   (Replaces: 4451758)			Immediately	$ 8.14
12	WPW10245259		Block, Terminal   (Replaces: 7401P038-60)			Immediately	$ 35.17
13	W10347650		Tray, Electronic				$ 126.08
14	W10509164		Chassis, Divider Back		Appelez-nous	-
15	W10351295		Bumper (lower Model Only)				$ 22.12
16	W10318192		Chassis, Cover Top Front 30``				$ 138.81
17	W10904156		Chassis, Cover Top Back 30``   (Replaces: W10318194)		Appelez-nous	-
18	WP7103P027-60		Nut   (Replaces: 7103P027-60)			Immediately	$ 7.55
