SELECT A DIAGRAM

01 - Oven Parts


02 - Oven Door Parts


03 - Internal Oven Parts

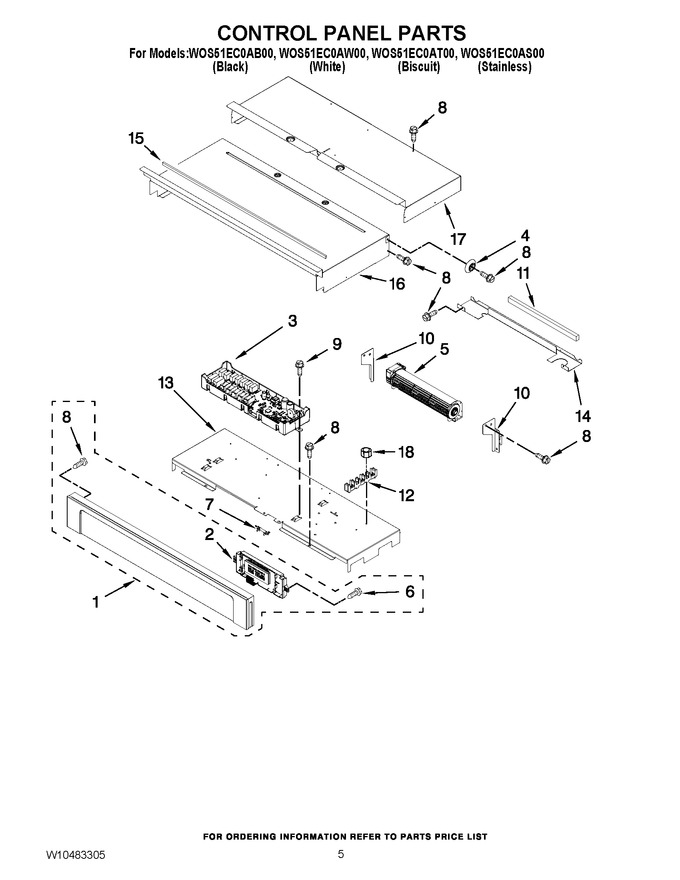

04 - Control Panel Parts


05 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10329404		Assembly, Control Panel (includes Overlay) (stainless)		Appelez-nous	-
1	W10861485		Assembly, Control Panel (includes Overlay) (black)   (Replaces: W10329405)				$ 739.91
1	W10861487		Assembly, Control Panel (includes Overlay) (white)   (Replaces: W10329406)				$ 720.02
1	W10329407		Assembly, Control Panel (includes Overlay) (biscuit)		Appelez-nous	-
2	W10803991		Board, Mrc2 Display   (Replaces: W10286213)			Immediately	$ 420.04
3	W10550508		Board, Mrc2 Main   (Replaces: W10286212)			Immediately	$ 695.30
4	W10363824		Spacer, Lateral		Appelez-nous	-
5	W10286217		Blower				$ 208.35
6	WP12990527		Screw   (Replaces: 7101P403-60)			Immediately	$ 8.76
7	WPW10545255		Fuse, Thermal   (Replaces: W10436434)			Immediately	$ 27.91
8	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 8.25
9	WP7101P434-60		Screw   (Replaces: 7101P434-60)				$ 7.30
10	W10351257		Bracket, Blower (left)		Appelez-nous	-
10	W10283078		Bracket, Blower (right)		Appelez-nous	-
11	W10491987		Block, Foam   (Replaces: 4451758)			Immediately	$ 8.14
12	WPW10245259		Block, Terminal   (Replaces: 7401P038-60)			Immediately	$ 35.17
13	W10347650		Tray, Electronic				$ 126.08
14	WPW10318191		Chassis, Divider Back   (Replaces: W10318191)				$ 81.94
15	WPW10657548		Gasket, Rubber   (Replaces: W10351292)				$ 89.66
16	W10318192		Chassis, Cover Top Front 30``				$ 138.81
17	W10904156		Chassis, Cover Top Back 30``   (Replaces: W10318194)		Appelez-nous	-
18	WP7103P027-60		Nut, Terminal Block   (Replaces: 7103P027-60)			Immediately	$ 7.55

    View Diagram in Separate Window       Print Part List
