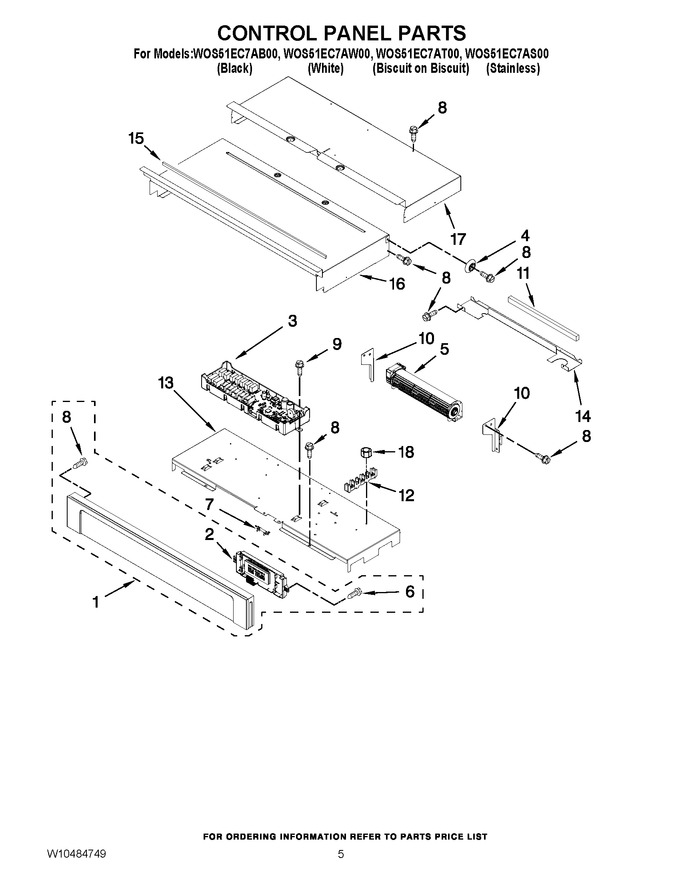

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10861488		Assembly, Control Panel (includes Overlay) (black)   (Replaces: W10363089)				$ 572.16
1	W10864145		Assembly, Control Panel (includes Overlay) (white)   (Replaces: W10363090)				$ 505.93
1	W10363091		Assembly, Control Panel (includes Overlay) (biscuit)		Appelez-nous	-
1	W10861490		Assembly, Control Panel (includes Overlay) (stainless)   (Replaces: W10363088)				$ 879.03
2	W10803991		Board, Mrc2 Display   (Replaces: W10286213)			Immediately	$ 420.04
3	W10550508		Board, Mrc2 Main   (Replaces: W10286212)			Immediately	$ 695.30
4	W10363824		Spacer, Lateral		Appelez-nous	-
5	W10286217		Blower				$ 208.35
6	WP12990527		Screw   (Replaces: 7101P403-60)			Immediately	$ 8.76
7	WPW10545255		Fuse, Thermal   (Replaces: W10436434)			Immediately	$ 28.25
8	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 8.25
9	WP7101P434-60		Screw   (Replaces: 7101P434-60)				$ 7.30
10	W10283078		Bracket, Blower (right)		Appelez-nous	-
10	W10351257		Bracket, Blower (left)		Appelez-nous	-
11	W10491987		Block, Foam   (Replaces: 4451758)			Immediately	$ 8.14
12	WPW10245259		Block, Terminal   (Replaces: 7401P038-60)			Immediately	$ 35.17
13	W10283005		Tray, Electronic		Appelez-nous	-
14	WPW10318191		Chassis, Divider Back   (Replaces: W10318191)				$ 81.94
15	W10351291		Gasket, Rubber		Appelez-nous	-
16	W10318193		Chassis, Cover Top Front 27``				$ 136.08
17	W10318195		Chassis, Cover Top Back 27``				$ 111.04
18	WP7103P027-60		Nut, Terminal Block   (Replaces: 7103P027-60)			Immediately	$ 7.55

    View Diagram in Separate Window       Print Part List
