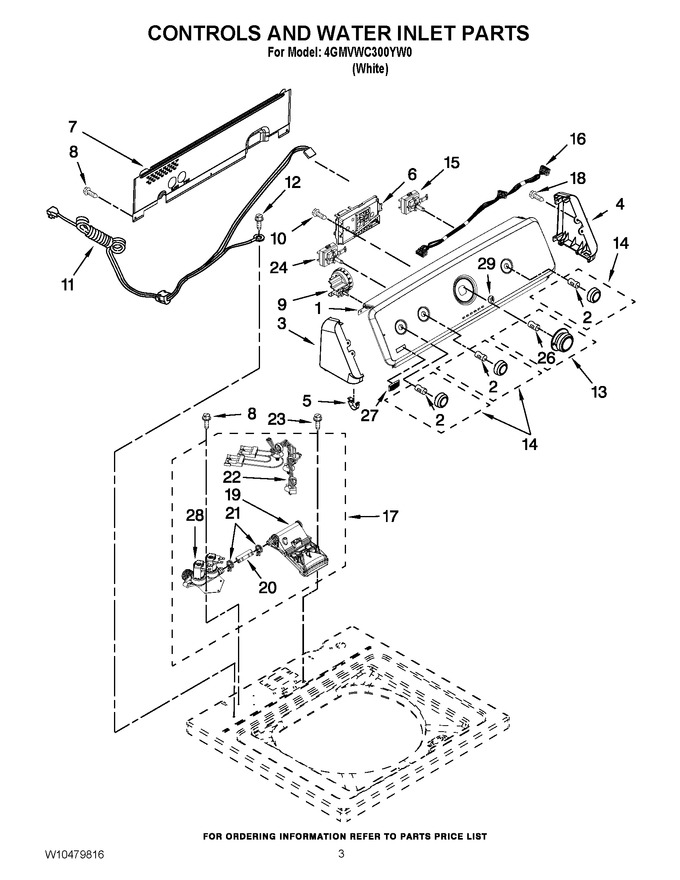

02 - Controls And Water Inlet Parts
03 - Basket And Tub Parts
04 - Gearcase, Motor And Pump Parts
05 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10365085 | Panel, Console |
|
- | |||||
| 2 | WP8536939 | Clip, Knob (Replaces: 8536939) |
|
Immediately | $ 7.81 | ||||
| 3 | WPW10193824 | Cap, End (l.h.) (includes Item 5) (Replaces: W10193824) |
|
$ 70.85 | |||||
| 4 | WPW10193821 | Cap, End (r.h.) (includes Item 5) (Replaces: W10193821) |
|
$ 71.16 | |||||
| 5 | WP8312709 | Clip-console (Replaces: 8312709) |
|
Immediately | $ 16.35 | ||||
| 6 | W11086988 | Control Unit Assembly, (Replaces: W10453176) |
|
- | |||||
| 7 | WPW10420985 | Panel, Console Rear Cover (Replaces: W10420985) |
|
$ 251.29 | |||||
| 8 | WP489069 | Screw, 8-18 X 3/8 (Replaces: 1157158) |
|
Immediately | $ 7.86 | ||||
| 9 | WPW10268911 | Switch, Water Level (Replaces: W10268911) |
|
Immediately | $ 181.57 | ||||
| 10 | WP90767 | Screw, 8-18 X 3/8 (Replaces: 90767) |
|
Immediately | $ 7.82 | ||||
| 11 | W10422755 | Cord-power |
|
- | |||||
| 12 | W10846509 | Screw, Power (cord Ground) (Replaces: 3400076) |
|
Immediately | $ 8.20 | ||||
| 13 | WPW10317454 | Knob, Timer (Replaces: W10317454) |
|
$ 60.45 | |||||
| 14 | WPW10317455 | Knob, Control (Replaces: W10317455) |
|
$ 60.31 | |||||
| 15 | WPW10285511 | Switch, Rotary Encoder (Replaces: W10285511) |
|
Immediately | $ 173.43 | ||||
| 16 | W10291175 | Harness, Upper |
|
$ 171.94 | |||||
| 17 | WPW10345523 | Inlet Assembly, Water (Replaces: W10345523) |
|
$ 199.75 | |||||
| 18 | W11693756 | Screw, 8-18 X 1/2 (Replaces: 359625) |
|
Immediately | $ 14.76 | ||||
| 19 | WPW10441423 | Vacuum Break (Replaces: W10441423) |
|
$ 86.03 | |||||
| 20 | W10238347 | Hose, Vacuum Break |
|
$ 25.86 | |||||
| 21 | WP596669 | Clamp, Hose (Replaces: W10117298) |
|
Immediately | $ 8.40 | ||||
| 22 | WPW10344775 | Harness, Valve (Replaces: W10344775) |
|
$ 163.34 | |||||
| 23 | WP8281163 | Screw, 8-16 X 1/2 (Replaces: 8281163) |
|
Immediately | $ 10.19 | ||||
| 24 | WPW10285512 | Switch, Rotary Encoder (Replaces: W10285512) |
|
Immediately | $ 181.40 | ||||
| 26 | WP688805 | Clip, Knob (Replaces: 688805) |
|
Immediately | $ 7.81 | ||||
| 27 | W10323734 | Badge |
|
$ 63.95 | |||||
| 28 | WPW10339585 | Valve, Water Mixing (Replaces: W10339585) |
|
$ 224.53 | |||||
| 29 | WPW10251309 | Push Button, Start (Replaces: W10251309) |
|
Immediately | $ 72.38 |
