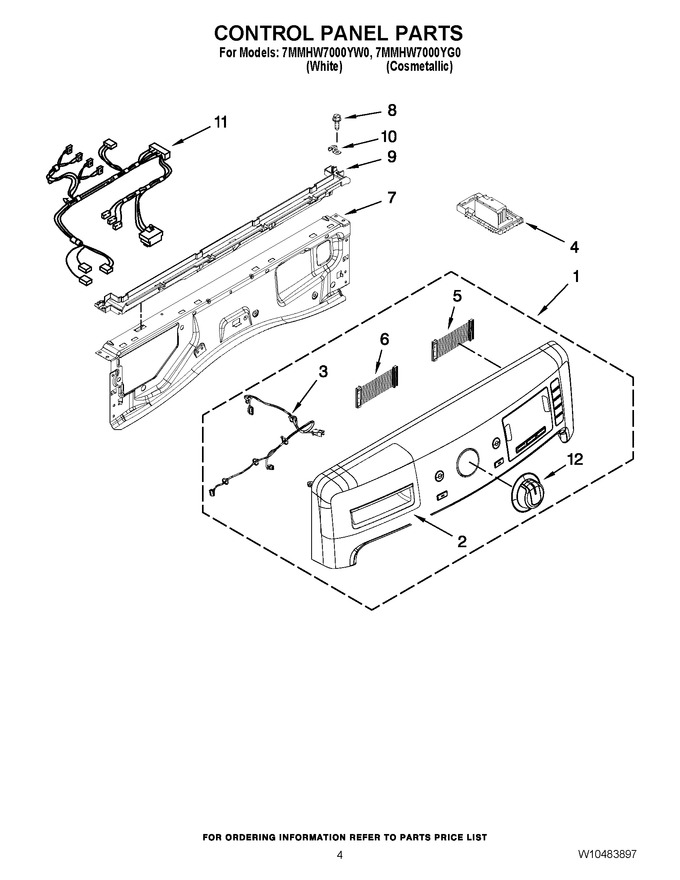

03 - Control Panel Parts
04 - Dispenser Parts
05 - Tub And Basket Parts
06 - Pump Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10387859 | Console Asssembly (cosmetallic) |
|
$ 419.18 | |||||
| 1 | W10387856 | Console Asssembly (white) |
|
- | |||||
| 2 | W10281852 | Handle, Dispenser Drawer (also Shown On Page 5) (white) |
|
- | |||||
| 2 | W10315748 | Handle, Dispenser Drawer (also Shown On Page 5) (cosmetallic) |
|
$ 74.13 | |||||
| 3 | W10271988 | Harness, Main Ui |
|
$ 253.51 | |||||
| 4 | W10410762 | Control Unit, Central |
|
- | |||||
| 5 | W10309986 | Harness, Jumper |
|
$ 16.85 | |||||
| 6 | W10309987 | Harness, Ui Jumper |
|
$ 13.08 | |||||
| 7 | W10208197 | Bracket, Console |
|
$ 174.54 | |||||
| 8 | WP489464 | Screw, 8-18 X 1/2 (Replaces: W10142290) |
|
Immediately | $ 8.38 | ||||
| 9 | WPW10653575 | Channel, Water (includes Item 10) (Replaces: W10317570) |
|
$ 90.94 | |||||
| 10 | W10317566 | Clip, Spring |
|
$ 9.16 | |||||
| 11 | W10271980 | Harness, Wiring (upper Main) |
|
$ 260.43 | |||||
| 12 | W10514146 | Knob, Control (Replaces: W10370392) |
|
Immediately | $ 109.90 |
