SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Motor And Ice Container Parts


06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Dispenser Front Parts

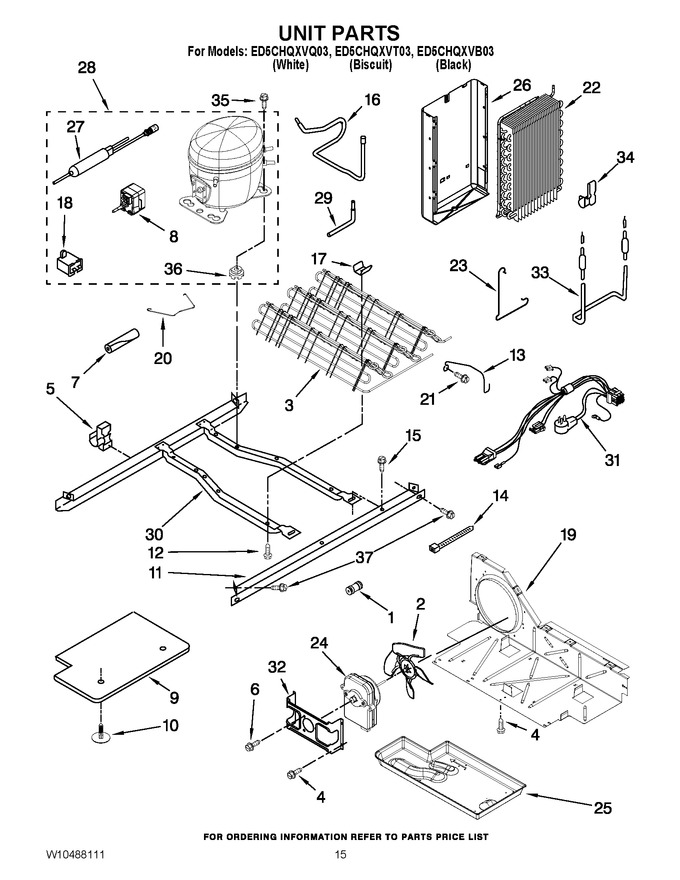

09 - Unit Parts


10 - Air Flow Parts


11 - Control Parts


12 - Icemaker Parts


13 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10334458		Connector   (Replaces: W10334458)				$ 22.67
2	W11458267		Fan, Blade   (Replaces: 2225834)			Immediately	$ 25.19
3	2324712		Condenser Assembly   (Replaces: W10222349)				$ 323.45
4	WP489464		Screw   (Replaces: 489464)			Immediately	$ 8.38
5	2208280		Clip, Wire		Appelez-nous	-
6	WP8533993		Screw   (Replaces: 8533993)				$ 11.21
7	W11751592		Sleeve   (Replaces: 2161302)			Immediately	$ 21.32
8	WPW10240344		Start Device, Combination (start Relay And Overload) (service)   (Replaces: W10240344)				$ 189.32
9	2304891		Unit Cover, Bottom		Appelez-nous	-
10	489396		Clip				$ 11.26
11	W10196313		Unit Mounting Rail		Appelez-nous	-
12	W11544659		Screw   (Replaces: 8281232)				$ 14.35
13	1110663		Guard, Fan		Appelez-nous	-
14	WPW10339879		Strap   (Replaces: 2263990)				$ 8.30
15	WP489427		Screw   (Replaces: 489427)				$ 7.84
16	2313230		Tube Suction		Appelez-nous	-
17	W10683556		Clip, Condenser(2)   (Replaces: 2311725)				$ 19.38
18	WP65889-4		Capacitor (service Only)   (Replaces: 2252799)			Immediately	$ 61.14
19	W10332806		Air Baffle				$ 102.82
20	W11661170		Clip   (Replaces: W10174384)			Immediately	$ 11.87
21	WP489478		Screw   (Replaces: 489478)				$ 8.18
22	WP2188823		Evaporator   (Replaces: 2188823)			Immediately	$ 381.49
23	2161324		Clamp		Appelez-nous	-
24	W10124096		Fan, Motor   (Replaces: W10204250)			Immediately	$ 112.20
25	WPW10614158		Tray, Evaporator   (Replaces: 1105523)			Immediately	$ 113.18
26	W10194475		Heat Shield		Appelez-nous	-
27	WPW10143759		Drier (production)   (Replaces: W10177049)			Immediately	$ 30.78
27	WPW10143759		Drier (service)   (Replaces: W10143759)			Immediately	$ 30.78
28	W10355489		Compressor (includes Items 8, 18, 27, & 36) (also Order 876765 Tube Kit)   (Replaces: W10240420)				$ 678.50
29	2325479		Process Tube		Appelez-nous	-
30	W10196321		Unit Mounting Frame		Appelez-nous	-
31	W10281341		Unit, Harness (includes Power Cord)				$ 240.86
32	WP2181929		Fan, Motor Bracket   (Replaces: 2181929)				$ 12.93
33	WP2323198		Heater, Defrost   (Replaces: 2188175)			Immediately	$ 90.70
34	2161324		Clip (2)		Appelez-nous	-
35	W11661574		Screw   (Replaces: 489473)				$ 14.29
36	W11661108		Grommet (4) (service)   (Replaces: 2183042)				$ 15.21
37	489340		Screw (5)		Appelez-nous	-
NI	978029		Valve, Access (5/8``)				$ 93.85
NI	978030		Valve, Access (3/4``)				$ 137.25
NI	876764		Valve, Access (3/16``)			Immediately	$ 95.92
NI	N/P		Refrigerant Charge (5.0oz. (r-134a))		Appelez-nous	-
NI	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 110.51
NI	978026		Valve, Access (5/16``)			Immediately	$ 134.49
NI	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 21.64
NI	978028		Valve, Access (1/2``)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
