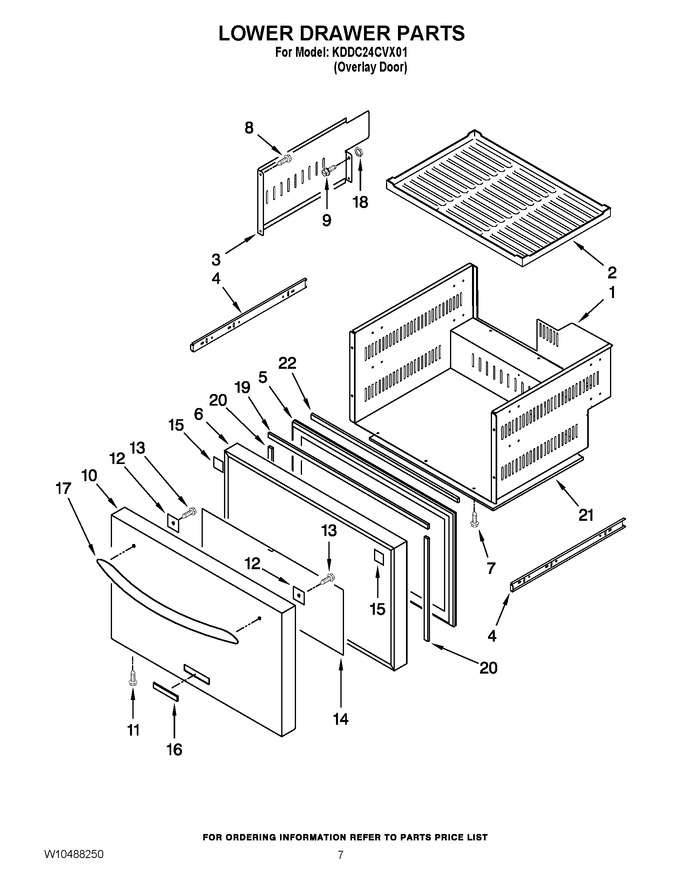

01 - Cabinet Parts
02 - Liner Parts
03 - Upper Drawer Parts
04 - Lower Drawer Parts
05 - Unit Parts
06 - Icemaker Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10281505 | Drawer Box Assy. |
|
- | |||||
| 2 | W10204922 | Bottom Mat |
|
- | |||||
| 3 | W10204923 | Drawer Partition |
|
- | |||||
| 4 | WPW10233777 | Rail Assy. (Replaces: W10233777) |
|
$ 349.36 | |||||
| 5 | WPW10204700 | Gasket (Replaces: W10204700) |
|
Immediately | $ 308.06 | ||||
| 6 | W10489375 | Formed Door Assy. |
|
- | |||||
| 7 | W10204808 | Screw |
|
- | |||||
| 8 | W10204809 | Screw |
|
- | |||||
| 9 | W10204810 | Screw |
|
- | |||||
| 10 | W10204926 | Overlay Parts Kit |
|
$ 34.57 | |||||
| 11 | W10837731 | Screw (Replaces: W10204865) |
|
$ 8.30 | |||||
| 12 | 4344809 | Plate, Door Handle |
|
- | |||||
| 13 | W10859467 | Screw (Replaces: W10204866) |
|
$ 80.23 | |||||
| 14 | W10204867 | Wrap Spacer |
|
- | |||||
| 15 | W10204868 | Wrap Gap Spacer |
|
- | |||||
| 16 | W10239386 | Name Plate |
|
- | |||||
| 17 | W10204888 | Handle |
|
- | |||||
| 18 | W10204920 | Nut |
|
- | |||||
| 19 | W10204889 | Door Gasket, Long |
|
- | |||||
| 20 | W10204897 | Door Gasket, Short |
|
- | |||||
| 21 | W10281500 | Drawer Bottom Seal |
|
- | |||||
| 22 | W10281317 | Cold Air Seal |
|
- |
