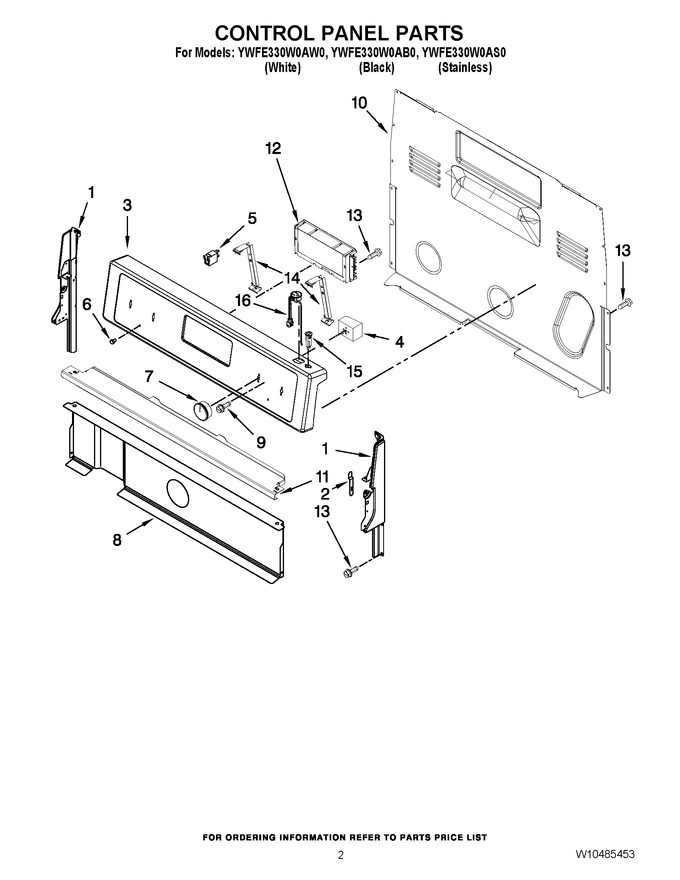

02 - Control Panel Parts
03 - Chassis Parts
04 - Drawer & Broiler Parts
05 - Door Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11219365 | Endcap (white Lh) (Replaces: W10184433) |
|
$ 42.45 | |||||
| 1 | W11219370 | Endcap (white Rh) (Replaces: W10184434) |
|
$ 60.83 | |||||
| 1 | W11219664 | Endcap (black Lh) (Replaces: W10184437) |
|
$ 153.83 | |||||
| 1 | W11219665 | Endcap (black Rh) (Replaces: W10184438) |
|
$ 45.17 | |||||
| 2 | 3196200 | Clip, Spring |
|
$ 10.45 | |||||
| 3 | W10714879 | Panel, Backguard (stainless) (Replaces: W10339406) |
|
$ 191.95 | |||||
| 3 | W10370105 | Panel, Backguard (black) |
|
- | |||||
| 3 | W10714870 | Panel, Backguard (white) (Replaces: W10370107) |
|
$ 164.18 | |||||
| 4 | 5500-287 | Switch, Infinite (left - Right Rear) (Replaces: 3148951) |
|
Immediately | $ 52.39 | ||||
| 4 | 5500-287 | Switch, Infinite (right Front) (Replaces: 3148953) |
|
Immediately | $ 52.39 | ||||
| 4 | WPW10167742 | Switch, Infinite (left Front) (Replaces: W10167742) |
|
Immediately | $ 118.20 | ||||
| 5 | WP8523265 | Light, Indicator (Replaces: 8523265) |
|
Immediately | $ 86.31 | ||||
| 6 | WP3196068 | Lens, Light (Replaces: 3196068) |
|
Immediately | $ 6.26 | ||||
| 7 | WPW10490037 | Knob (white) (Replaces: W10339426) |
|
Immediately | $ 7.55 | ||||
| 7 | WPW10490038 | Knob (black) (Replaces: W10339425) |
|
$ 21.54 | |||||
| 8 | W10134247 | Shield, Heat |
|
Immediately | $ 358.82 | ||||
| 9 | WP3400882 | Screw (Replaces: 3400882) |
|
Immediately | $ 7.55 | ||||
| 10 | WP8272473 | Cover, Upper (Replaces: 8272473) |
|
$ 219.04 | |||||
| 11 | W10525121 | Brkt-mntg,console (Replaces: W10182322) |
|
$ 98.85 | |||||
| 12 | W10424885 | Control, Range (lcc190) (stainless) |
|
$ 444.43 | |||||
| 12 | W10813969 | Control, Range (lcc190) (black) (Replaces: W10348617) |
|
$ 485.89 | |||||
| 12 | W10813969 | Control, Range (lcc190) (white) (Replaces: W10348618) |
|
$ 485.89 | |||||
| 13 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 14.72 | ||||
| 14 | W11230932 | Brkt-mntg, Eoc (Replaces: W10324410) |
|
Immediately | $ 84.81 | ||||
| 15 | WP9757601 | Breaker, Circuit (white) (Replaces: 9757601) |
|
Immediately | $ 65.55 | ||||
| 15 | WP9757602 | Breaker, Circuit (black) (Replaces: 9757602) |
|
Immediately | $ 53.81 | ||||
| 16 | W10849725 | Receptacle, Fused (white) (Replaces: W10203476) |
|
Immediately | $ 80.79 | ||||
| 16 | W10861164 | Receptacle, Fused (black) (Replaces: W10203475) |
|
Immediately | $ 18.47 |
