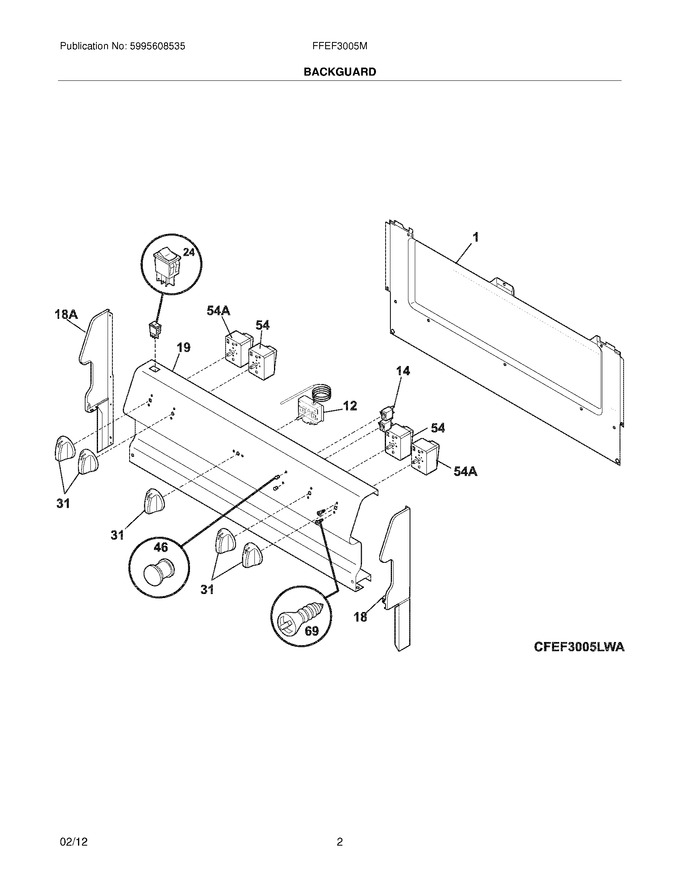

03 - Backguard
05 - Body
07 - Top/drawer
09 - Door
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303289640 | Shield-backguard,rear Wall |
|
$ 144.64 | |||||
| 14 | 316022503 | Light/lamp,indicator ,surface ,250 V |
|
Immediately | $ 77.96 | ||||
| 18 | 316263404 | End Cap,white ,rh |
|
- | |||||
| 19 | 316263375 | Panel,backguard ,white |
|
$ 181.44 | |||||
| 31 | 316543800 | Knob,control ,white ,(4) |
|
Immediately | $ 30.32 | ||||
| 46 | 316557300 | Lens-light/lamp,indicator ,clear |
|
Immediately | $ 18.63 | ||||
| 69 | 5303288565 | Screw,truss Sqdr `8-32 X 3/16 ,switch Mtg |
|
$ 3.47 | |||||
| 18A | 316263405 | End Cap,white ,lh |
|
- | |||||
| F12 | 316215900 | Thermostat |
|
Immediately | $ 208.52 | ||||
| F24 | 5304527842 | Switch,rocker ,white ,oven Light (Replaces: 316448701) |
|
Immediately | $ 17.92 | ||||
| F54 | 316436000 | Switch,infinite ,small Element |
|
Immediately | $ 89.27 | ||||
| F54A | 316436001 | Switch,infinite ,large Element |
|
Immediately | $ 57.42 | ||||
| NI | 316021109 | Screw,hex Head Cup Pt ,8-18 X 0.375 ,black (Replaces: 316021105) |
|
Immediately | $ 30.55 |
