SELECT A DIAGRAM

01 - Cooktop Parts


02 - Control Panel Parts


03 - Chassis Parts


04 - Drawer & Broiler Parts

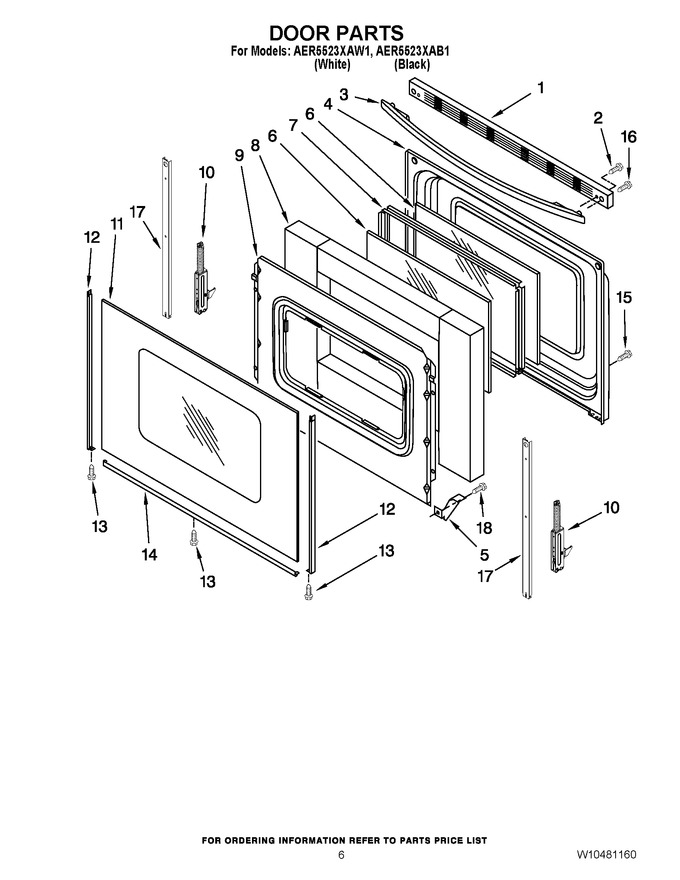

05 - Door Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10016380		Trim, Top (black)				$ 80.76
1	W10016370		Trim, Top (white)				$ 79.85
2	WP3196164		Screw   (Replaces: 3196164)			Immediately	$ 11.03
3	WPW10202216		Handle, Door (white)   (Replaces: W10202216)				$ 370.67
3	WPW10202217		Handle, Door (black)   (Replaces: W10202217)				$ 270.65
4	9761340		Liner-door				$ 361.12
5	W10137382		Clip, Panel			Immediately	$ 48.42
6	WP9758164		Glass, Inner   (Replaces: 9758164)				$ 159.93
7	W10316951		Frame, Glass		Appelez-nous	-
8	WPW10278991		Insulation, Door   (Replaces: W10278991)			Immediately	$ 101.37
9	9761499		Retainer, Insul.				$ 325.33
10	WPW10299224		Hinge, Door (active)   (Replaces: W10299224)			Immediately	$ 73.47
10	WPW10299227		Hinge, Door (passive)   (Replaces: W10299227)			Immediately	$ 70.74
11	WP9762477		Glass, Outer (black)   (Replaces: 9762477)				$ 330.12
11	WP9762476		Glass, Outer (white)   (Replaces: 9762476)				$ 332.66
12	W10761014		Trim, Side (rh, Black)   (Replaces: 8523165)			Immediately	$ 72.96
12	WP8523172		Trim, Side (lh, White)   (Replaces: 8523172)			Immediately	$ 69.93
12	WP8523166		Trim, Side (rh, White)   (Replaces: 8523166)			Immediately	$ 84.23
12	W10761018		Trim, Side (lh, Black)   (Replaces: 8523171)			Immediately	$ 53.77
13	W10491985		Screw   (Replaces: 3196160)			Immediately	$ 7.55
14	W11594186		Trim, Lower (white)   (Replaces: 8523175)			Immediately	$ 61.37
14	WP8523177		Trim, Lower (black)   (Replaces: 8523177)			Immediately	$ 165.86
15	WPW10031790		Screw   (Replaces: W10031790)			Immediately	$ 8.74
16	WPW10200660		Screw   (Replaces: W10200660)			Immediately	$ 8.24
17	W11502236		Strap, Door   (Replaces: W10113759)			Immediately	$ 27.68
18	WP3196175		Screw   (Replaces: 3196165)			Immediately	$ 7.55

    View Diagram in Separate Window       Print Part List
