View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet

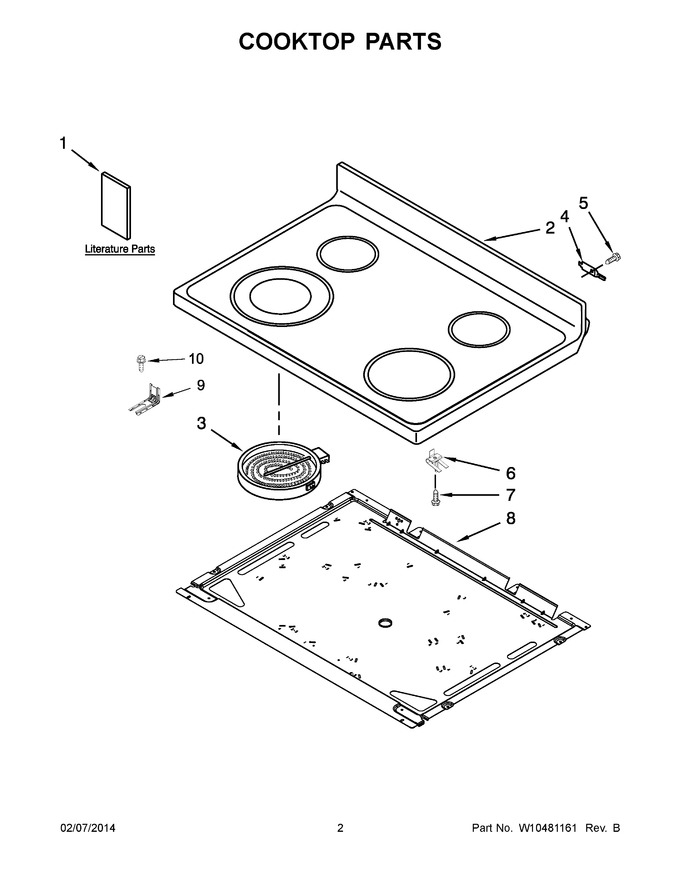

02 - Cooktop Parts
03 - Control Panel Parts
04 - Chassis Parts
05 - Door Parts
06 - Drawer And Rack Parts
07 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10419394 | Owners Manual |
|
- | |||||
| 1 | W10384447 | Tech Sheet (english) |
|
- | |||||
| 1 | W10403811 | Instructions, Installation |
|
- | |||||
| 1 | 9762761 | Tips, Safe Cooking (english) |
|
- | |||||
| 2 | W10245805 | Cooktop (black) (Replaces: W10172294) |
|
$ 553.83 | |||||
| 2 | W10219141 | Cooktop (white) (Replaces: W10172293) |
|
$ 505.81 | |||||
| 3 | W11171119 | Element (1200w) (right Rear And Left Rear) (Replaces: 8273994) |
|
Immediately | $ 225.62 | ||||
| 3 | W11047722 | Element (2500w) (left Front & Right Front) (Replaces: 8273992) |
|
Immediately | $ 132.46 | ||||
| 4 | WP3195060 | Hinge, Cooktop (Replaces: 3195060) |
|
Immediately | $ 13.18 | ||||
| 5 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.95 | ||||
| 6 | WPW10225448 | Spring, Element (Replaces: W10225448) |
|
Immediately | $ 10.40 | ||||
| 7 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 14.72 | ||||
| 8 | W11728329 | Pan, Radiant Element (Replaces: W10106409) |
|
Immediately | $ 143.49 | ||||
| 9 | W11839019 | Bracket, Anti-tip (Replaces: W10306542) |
|
Immediately | $ 28.54 | ||||
| 10 | 3148604 | Screw |
|
- |
