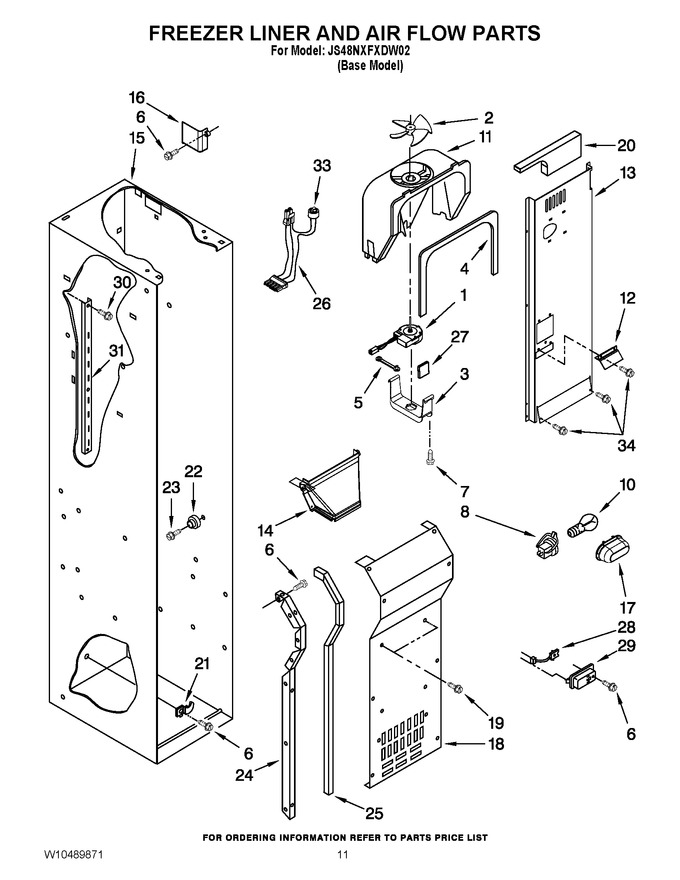

08 - Freezer Liner And Air Flow Parts


09 - Refrigerator Door Parts


10 - Freezer Door Parts


11 - Upper Unit Parts


12 - Lower Unit And Tube Parts


13 - Icemaker Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2259385		Fan Motor				$ 84.74
2	WP2169142		Fan Blade   (Replaces: 2169142)			Immediately	$ 43.41
3	8201663		Retainer, Fan Motor   (Replaces: 2223733)				$ 159.27
4	W10203260		Gasket, Cover				$ 75.47
5	W11669856		Grommet   (Replaces: W10449920)			Immediately	$ 15.93
6	W11624204		Screw   (Replaces: 486194)				$ 14.72
7	WPW10141604		Screw, Ground   (Replaces: W10141604)				$ 8.85
8	WPW10191429		Socket, Light   (Replaces: W10191429)				$ 8.80
10	WPA3073101		Light Bulb   (Replaces: 2326255)			Immediately	$ 12.72
11	W10170114		Scroll, Fan		Appelez-nous	-
12	2266801		Deflector, Air		Appelez-nous	-
13	W10170085		Air Duct		Appelez-nous	-
14	W10170112		Cover, Fan Scroll		Appelez-nous	-
15	N/P		Liner (not A Serviceable Part)		Appelez-nous	-
16	W10170101		Cover, Air Outlet		Appelez-nous	-
17	2307751		Light Shield				$ 17.27
18	W10428008		Cover, Evaporator		Appelez-nous	-
19	WP8281163		Screw   (Replaces: 8281163)			Immediately	$ 10.70
20	2266801		Deflector, Air Duct		Appelez-nous	-
21	1112260		Support, Evaporator		Appelez-nous	-
22	W11527119		Shelf, Stud   (Replaces: W10173127)		Appelez-nous	-
23	W10191952		Screw				$ 5.65
24	W10135766		Evaporator, Cover Rail (lh)		Appelez-nous	-
24	W10141474		Evaporator, Cover Rail (rh)		Appelez-nous	-
25	2220904		Gasket Evaporator Cover				$ 23.55
26	W10139189		Harness, Evap Fan (includes Item 33)				$ 168.77
27	W10267707		Insulation		Appelez-nous	-
28	WP2188820		Thermistor   (Replaces: 2188820)			Immediately	$ 30.85
29	WP2317844		Cover, Thermistor   (Replaces: 2317105)				$ 11.38
30	W10678207		Screw   (Replaces: 2001377)				$ 16.43
31	W10213473		Ladder, Shelf		Appelez-nous	-
33	WPW10160570		Defrost, Bi-metal   (Replaces: W10160570)			Immediately	$ 138.98
34	WPW10142283		Screw   (Replaces: W10142283)				$ 10.33
