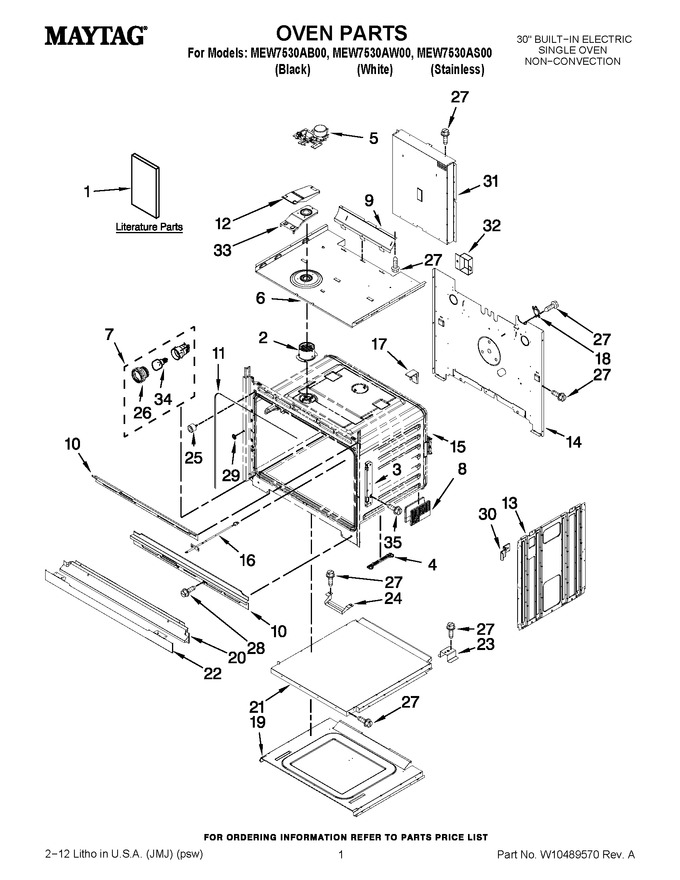

01 - Oven Parts
02 - Oven Door Parts
03 - Internal Oven Parts
04 - Control Panel Parts
05 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10354192 | Use & Care Guide |
|
- | |||||
| 1 | W10075750 | Installation Instructions (french) |
|
- | |||||
| 1 | W10351318 | Undercounter, Installation Instructions |
|
- | |||||
| 1 | W10351242 | Installation Instructions (english) |
|
- | |||||
| 1 | W10425193 | Tech Sheet (english) |
|
- | |||||
| 1 | W10425194 | Tech Sheet (french) |
|
- | |||||
| 2 | W11240525 | Tube, Cavity Vent (Replaces: W10282946) |
|
$ 25.54 | |||||
| 3 | W11613828 | Receiver, Hinge (Replaces: W10282975) |
|
Immediately | $ 57.49 | ||||
| 4 | WPW10318220 | Spacer, Base (Replaces: W10318220) |
|
$ 26.76 | |||||
| 5 | W10883049 | Latch, Motorized (Replaces: W10314880) |
|
Immediately | $ 306.46 | ||||
| 6 | W10282980 | Top, Chassis |
|
$ 123.95 | |||||
| 7 | WPW10734063 | Light, Indicator (Replaces: W10260262) |
|
$ 89.05 | |||||
| 8 | W10821321 | Foot, Base (Replaces: W10318219) |
|
$ 33.51 | |||||
| 9 | W10351258 | Bracket, Blower Deflector |
|
- | |||||
| 10 | W10283036 | Vent, Top 30`` |
|
$ 63.87 | |||||
| 11 | W11623080 | Gasket (Replaces: W10282960) |
|
Immediately | $ 72.35 | ||||
| 12 | W10616810 | Exhaust, Vent Cover (Replaces: W10282985) |
|
$ 69.95 | |||||
| 13 | W10318190 | Side, Chassis |
|
$ 117.20 | |||||
| 14 | W10282990 | Back, Chassis |
|
- | |||||
| 15 | N/P | Liner, Oven (not Serviceable) |
|
- | |||||
| 16 | WP74008369 | Sensor (Replaces: 7430P043-60) |
|
Immediately | $ 132.94 | ||||
| 17 | WPW10392683 | Bumper, Rail (Replaces: W10392683) |
|
$ 10.12 | |||||
| 18 | WP4449751 | Thermostat (Replaces: 4449751) |
|
Immediately | $ 111.84 | ||||
| 19 | W11238787 | Base, Chassis (Replaces: W10282900) |
|
$ 349.65 | |||||
| 20 | WPW10351279 | Assembly, Bottom Vent (stainless) (Replaces: W10351279) |
|
Immediately | $ 280.30 | ||||
| 20 | WPW10327373 | Assembly, Bottom Vent (black) (Replaces: W10327373) |
|
$ 324.01 | |||||
| 21 | WPW10283008 | Chassis, Bottom Duct (Replaces: W10283008) |
|
$ 220.05 | |||||
| 22 | WPW10327377 | Trim, Bottom Vent (stainless) (Replaces: W10327377) |
|
$ 180.08 | |||||
| 22 | WPW10351236 | Trim, Bottom Vent (black) (Replaces: W10351236) |
|
Immediately | $ 151.96 | ||||
| 23 | W10213759 | Support, Air Channel |
|
- | |||||
| 24 | W10351308 | Chassis, Bottom Duct Spacer |
|
$ 58.73 | |||||
| 25 | WPW10351278 | Bumper & Screw (Replaces: W10351278) |
|
$ 11.01 | |||||
| 26 | WPW10412722 | Lens, Light (Replaces: W10412722) |
|
Immediately | $ 19.65 | ||||
| 27 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 8.25 | ||||
| 28 | WP4450038 | Screw (Replaces: 4450038) |
|
$ 8.30 | |||||
| 29 | W10759525 | Grommet, Front Frame (Replaces: W10283016) |
|
$ 8.21 | |||||
| 30 | W10347649 | Spacers, Front |
|
$ 15.02 | |||||
| 31 | W10318196 | Chassis, Back Duct Upper |
|
$ 218.89 | |||||
| 32 | W11819303 | Cover, Connector (Replaces: 8285593) |
|
- | |||||
| 33 | W10616809 | Base, Exhaust Vent (Replaces: W10282984) |
|
$ 32.24 | |||||
| 34 | WPW10412711 | Bulb, Light (Replaces: W10412711) |
|
Immediately | $ 22.61 | ||||
| 35 | WPW10254050 | Screw (Replaces: W10254050) |
|
$ 9.22 | |||||
| NI | W11688731 | Insulation, Wrap (Replaces: W10282942) |
|
$ 124.87 | |||||
| NI | W11684789 | Insulation, Cavity (Replaces: W10282944) |
|
$ 124.04 |
