SELECT A DIAGRAM

01 - Lower Oven Parts


02 - Upper Oven Parts


03 - Lower Oven Door Parts


04 - Upper Oven Door Parts


05 - Internal Oven Parts

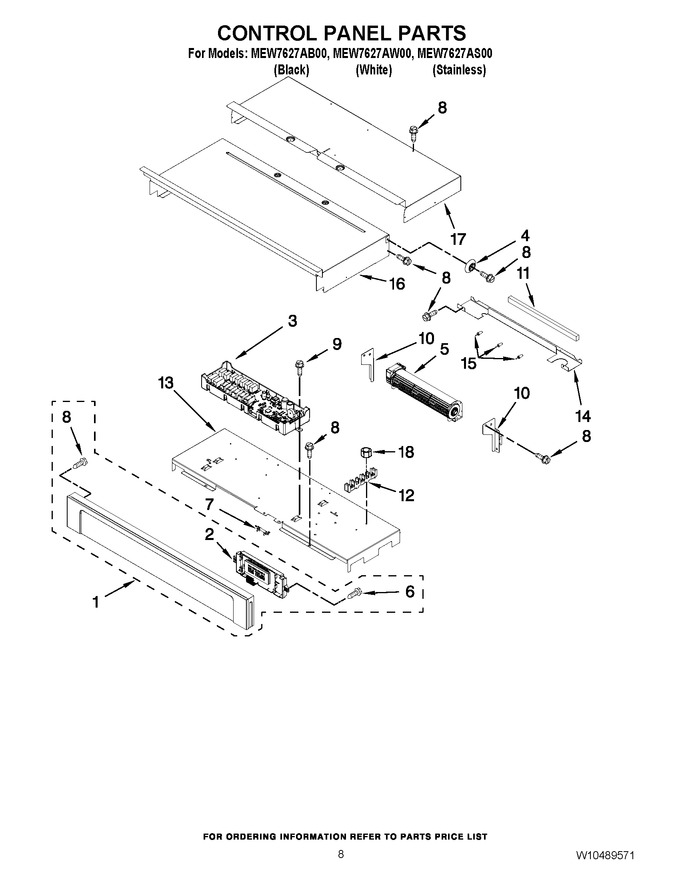

06 - Control Panel Parts


07 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10364115		Assembly, Control Panel (includes Overlay) (black)		Appelez-nous	-
1	W10364116		Assembly, Control Panel (includes Overlay) (white)		Appelez-nous	-
1	W10364114		Assembly, Control Panel (includes Overlay) (stainless)		Appelez-nous	-
2	W10286216		Board, Mrc2 Display		Appelez-nous	-
3	W10550509		Board, Mrc2 Main   (Replaces: W10286215)				$ 529.92
4	W10363824		Spacer, Lateral		Appelez-nous	-
5	W10286217		Blower				$ 208.35
6	WP12990527		Screw   (Replaces: 7101P403-60)			Immediately	$ 8.76
7	WPW10545291		Fuse, Thermal   (Replaces: W10436435)			Immediately	$ 35.50
8	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 8.25
9	WP7101P434-60		Screw   (Replaces: 7101P434-60)				$ 7.30
10	W10283078		Bracket, Blower (right)		Appelez-nous	-
10	W10351257		Bracket, Blower (left)		Appelez-nous	-
11	W10491987		Block, Foam   (Replaces: 4451758)			Immediately	$ 8.14
12	WPW10245259		Block, Terminal   (Replaces: 7401P038-60)			Immediately	$ 35.17
13	W10283005		Tray, Electronic		Appelez-nous	-
14	WPW10318191		Chassis, Divider Back (upper Model Only)   (Replaces: W10318191)				$ 81.94
15	W10351295		Bumper (lower Model Only)				$ 22.12
16	W10318193		Chassis, Cover Top Front 30``				$ 136.08
17	W10318195		Chassis, Cover Top Back 30``				$ 111.04
18	WP7103P027-60		Nut, Terminal Block   (Replaces: 7103P027-60)			Immediately	$ 7.55
