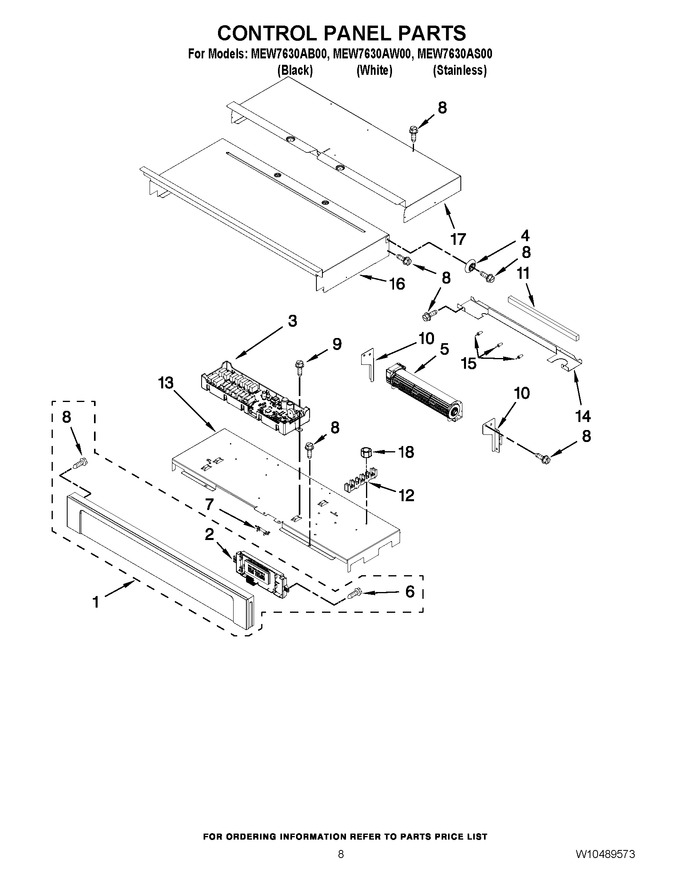

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10354530 | Assembly, Control Panel (includes Overlay) (black) |
|
- | |||||
| 1 | W10354531 | Assembly, Control Panel (includes Overlay) (white) |
|
- | |||||
| 1 | W10354529 | Assembly, Control Panel (includes Overlay) (stainless) |
|
- | |||||
| 2 | W10286216 | Board, Mrc2 Display |
|
- | |||||
| 3 | W10550509 | Board, Mrc2 Main (Replaces: W10286215) |
|
$ 529.92 | |||||
| 4 | W10363824 | Spacer, Lateral |
|
- | |||||
| 5 | W10286217 | Blower |
|
$ 208.35 | |||||
| 6 | WP12990527 | Screw (Replaces: 7101P403-60) |
|
Immediately | $ 8.76 | ||||
| 7 | WPW10545291 | Fuse, Thermal (Replaces: W10436435) |
|
Immediately | $ 35.50 | ||||
| 8 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 8.25 | ||||
| 9 | WP7101P434-60 | Screw (Replaces: 7101P434-60) |
|
$ 7.30 | |||||
| 10 | W10283078 | Bracket, Blower (right) |
|
- | |||||
| 10 | W10351257 | Bracket, Blower (left) |
|
- | |||||
| 11 | W10491987 | Block, Foam (Replaces: 4451758) |
|
Immediately | $ 8.14 | ||||
| 12 | WPW10245259 | Block, Terminal (Replaces: 7401P038-60) |
|
Immediately | $ 35.17 | ||||
| 13 | W10347650 | Tray, Electronic |
|
$ 126.08 | |||||
| 14 | WPW10318191 | Chassis, Divider Back (upper Model Only) (Replaces: W10318191) |
|
$ 81.94 | |||||
| 15 | W10351295 | Bumper (lower Model Only) |
|
$ 22.12 | |||||
| 16 | W10318192 | Chassis, Cover Top Front 30`` |
|
$ 138.81 | |||||
| 17 | W10904156 | Chassis, Cover Top Back 30`` (Replaces: W10318194) |
|
- | |||||
| 18 | WP7103P027-60 | Nut, Terminal Block (Replaces: 7103P027-60) |
|
Immediately | $ 7.55 |
