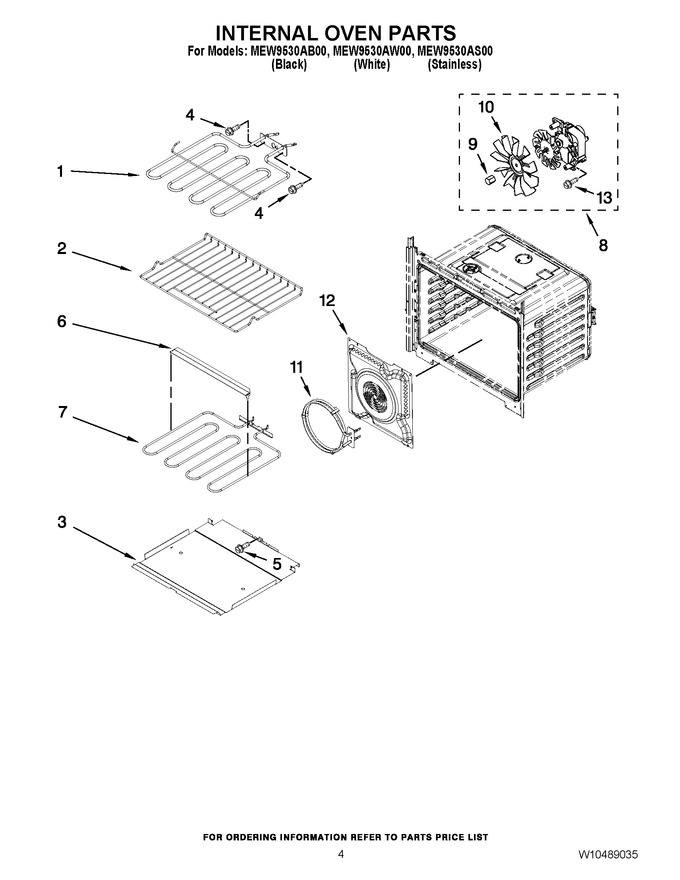

03 - Internal Oven Parts
04 - Control Panel Parts
05 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10260252 | Element, (Replaces: W10260252) |
|
$ 132.83 | |||||
| 2 | W10282967 | Rack, Oven |
|
$ 139.81 | |||||
| 2 | W11718046 | Rack, Sliding (Replaces: W10282973) |
|
Immediately | $ 173.45 | ||||
| 3 | W10318198 | Tray, Hidden Bake |
|
$ 195.83 | |||||
| 4 | W11347848 | Screw (Replaces: 7101P376-60) |
|
$ 14.23 | |||||
| 5 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 8.25 | ||||
| 6 | W10282957 | Tray, Hidden Bake Crossbar |
|
$ 47.47 | |||||
| 7 | W11545804 | Element, Bake (Replaces: W10282948) |
|
Immediately | $ 102.53 | ||||
| 8 | W10794022 | Motor, Convection Fan (Replaces: W10196895) |
|
Immediately | $ 214.63 | ||||
| 9 | WPW10116349 | Nut (Replaces: W10116349) |
|
$ 21.78 | |||||
| 10 | W10758272 | Blade, Fan (Replaces: W10116351) |
|
Immediately | $ 7.91 | ||||
| 11 | WPW10260248 | Element, Ring (Replaces: W10260248) |
|
$ 309.67 | |||||
| 12 | W10359278 | Baffle |
|
$ 249.22 | |||||
| 13 | WP4449154 | Screw (Replaces: 4449154) |
|
$ 8.16 |
