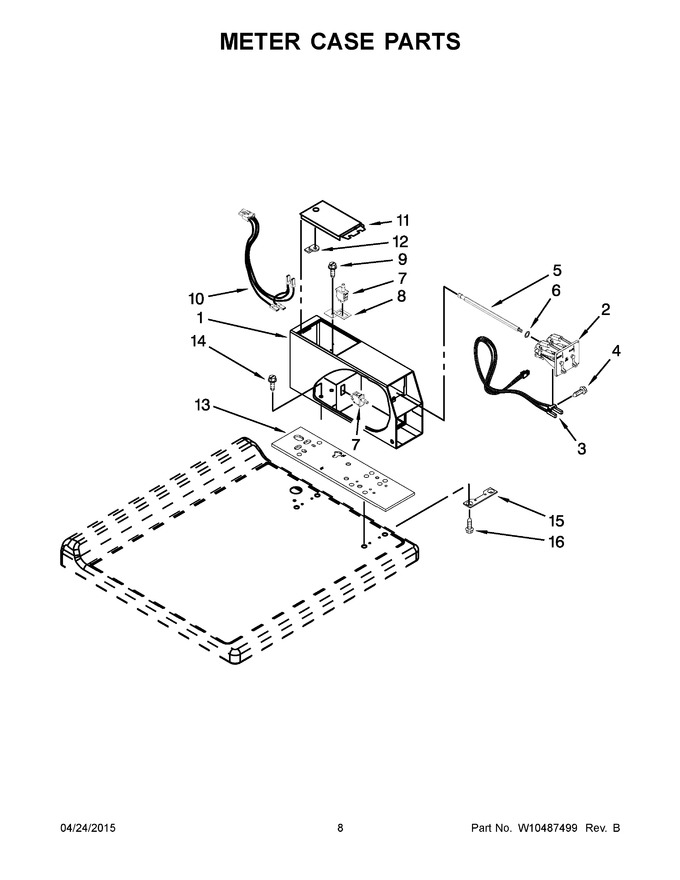

04 - Control Panel Parts


05 - Meter Case Parts


06 - Dispenser Parts


07 - Tub And Basket Parts


08 - Pump And Motor Parts


09 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10171128		Meter Case   (Replaces: W10171128)				$ 359.38
2	W11643135		Assembly, Dual Coin Drop   (Replaces: W10198395)				$ 597.42
3	W10247388		Sensor Assembly, Coin Optic (black)		Appelez-nous	-
4	WP3395530		Screw   (Replaces: W10142655)				$ 8.57
5	WPW10137319		Bolt, Hex Bar   (Replaces: W10137319)				$ 85.37
6	W11170663		Washer, Lock   (Replaces: W10068270)				$ 4.54
7	WPW10131838		Switch, Vault Service Door   (Replaces: W10131838)				$ 25.11
8	W11204533		Bracket, Service Switch   (Replaces: W10133508)		Appelez-nous	-
9	WPW10139210		Screw   (Replaces: W10139210)				$ 8.03
10	W10847806		Wire Harness, Sensor Switch   (Replaces: W10139456)				$ 119.49
11	W11283272		Assembly, Service Door   (Replaces: 3351136)				$ 111.17
12	W11401086		Cam, Commercial Lock   (Replaces: W10145154)				$ 6.17
13	W10137448		Cushion, Meter Case		Appelez-nous	-
14	W11715721		Bolt   (Replaces: 3349065)				$ 7.48
15	3347825		Plate, Mounting		Appelez-nous	-
16	W10841059		Screw   (Replaces: 98445)		Appelez-nous	-
3A	WPW10247389		Sensor Assembly, Coin Optic (white)   (Replaces: W10247389)			Immediately	$ 121.70
