SELECT A DIAGRAM

01 - Cabinet Parts


02 - Liner Parts

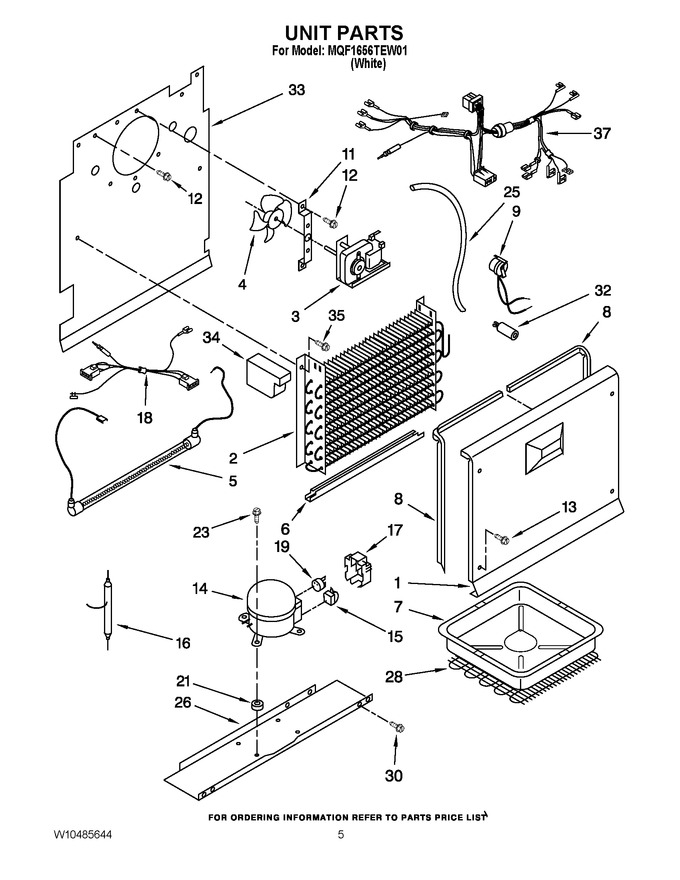

03 - Unit Parts


04 - Door Parts


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4-82699-001		Cover, Evaporator				$ 92.84
2	WP4-81546		Evaporator   (Replaces: 4-81546)				$ 449.41
3	WP3-60336-001		Motor, Fan   (Replaces: 3-60336-001)			Immediately	$ 339.78
4	WPW10445742		Blade, Fan   (Replaces: W10445742)			Immediately	$ 10.55
5	WP3-80405-003		Heater, Defrost   (Replaces: 3-80405-003)				$ 210.29
6	3-82697-001		Shield, Heater		Appelez-nous	-
7	4-82674-001		Pan, Drain		Appelez-nous	-
8	4390663		Gasket, Cover Evaporator   (Replaces: 3-60180-001)				$ 250.95
9	WP1-81801-001		Bi-metal Defrost   (Replaces: 1-81801-001)			Immediately	$ 129.87
11	2-80028-101		Bracket, Motor				$ 98.68
12	60001022		Screw, Motor   (Replaces: 3-80732-004)				$ 66.41
13	WP489478		Screw (4)   (Replaces: 3-24004-107)				$ 8.18
14	W10309990		Compressor   (Replaces: 4-32972-142)			Immediately	$ 632.81
15	WPW10466655		Relay   (Replaces: W10466655)				$ 135.11
16	W10843121		Drier   (Replaces: W10459086)			Immediately	$ 57.13
17	WP61002138		Cover   (Replaces: W10462677)				$ 9.21
18	4-81785-001		Harness, Fan		Appelez-nous	-
19	WP2187145		Overload   (Replaces: 2-34286-038)				$ 153.92
21	WP2163786		Compressor, Grommet   (Replaces: 13146462)				$ 8.36
23	8210220		Bolt, Compressor   (Replaces: 2-82082-001)		Appelez-nous	-
25	2-82072-003		Exchanger, Heat		Appelez-nous	-
26	W10470130		Pan, Compressor		Appelez-nous	-
28	W10451951		Condenser   (Replaces: 4-82234-002)				$ 300.73
30	WP3-24838-048		Screw   (Replaces: 3-24838-048)				$ 8.33
32	1-80275-101		Grommet		Appelez-nous	-
33	4-80504-101		Plate, Evaporator Mount				$ 109.02
34	1-80252-101		Block, Foam				$ 6.84
35	WP489491		Screw   (Replaces: 3-24004-079)				$ 7.30
37	4-82408-001		Wire Harness		Appelez-nous	-
NI	N/P		Refrigerant Charge (6.2 Oz. (r-134a))		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
