SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Motor And Ice Container Parts


06 - Refrigerator Door Parts


07 - Freezer Door Parts

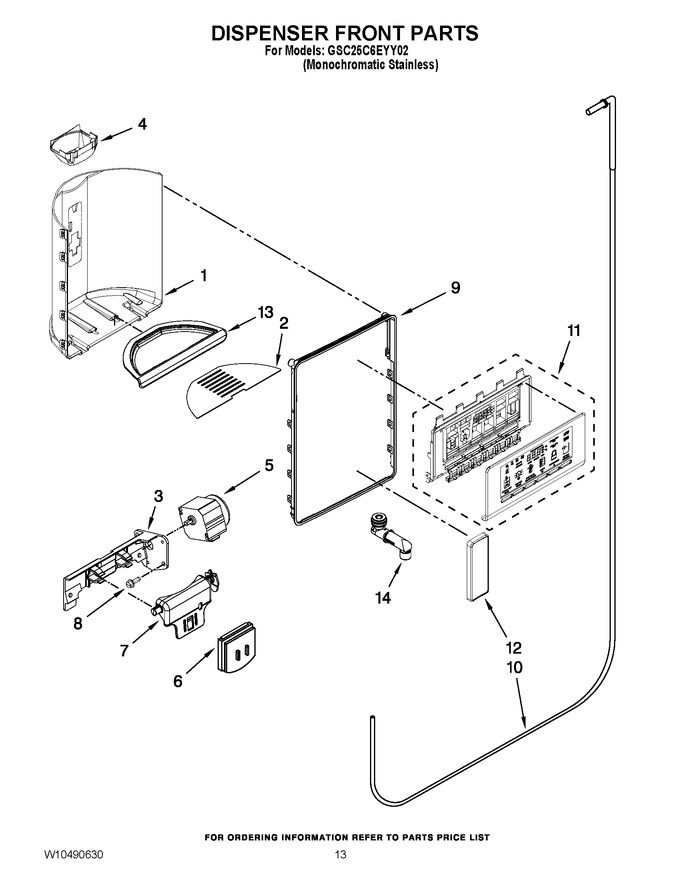

08 - Dispenser Front Parts


09 - Unit Parts


10 - Icemaker Parts


11 - Air Flow Parts


12 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Housing, Dispenser (not Serviced)		Appelez-nous	-
2	WPW10276209		Grate, Drip Tray   (Replaces: W10276209)				$ 81.55
3	W10174827		Bracket, Ice Door				$ 76.42
4	WPW10435760		Chute, Door   (Replaces: W10339578)				$ 23.94
5	WPW10205978		Motor, Ice Door   (Replaces: W10205978)				$ 104.12
6	W10838126		Ice Door Assembly (includes Items 3, 5, 7, & 8)   (Replaces: W10353566)				$ 164.33
7	WPW10346124		Support, Ice Door   (Replaces: W10346124)				$ 41.85
8	WP4449745		Screw   (Replaces: 4449745)				$ 7.98
9	W10448931		Trim Ring   (Replaces: W10254252)		Appelez-nous	-
10	WPW10279849		Water Tube   (Replaces: W10279849)				$ 119.42
11	W11027664		Electronic Control Assy   (Replaces: W10388236)				$ 290.47
12	WPW10370594		Pad, Ice & Water   (Replaces: W10370594)				$ 310.61
13	W10276225		Drip Tray, Insert				$ 74.06
14	WP2305235		Spigot   (Replaces: 2305235)				$ 147.07
