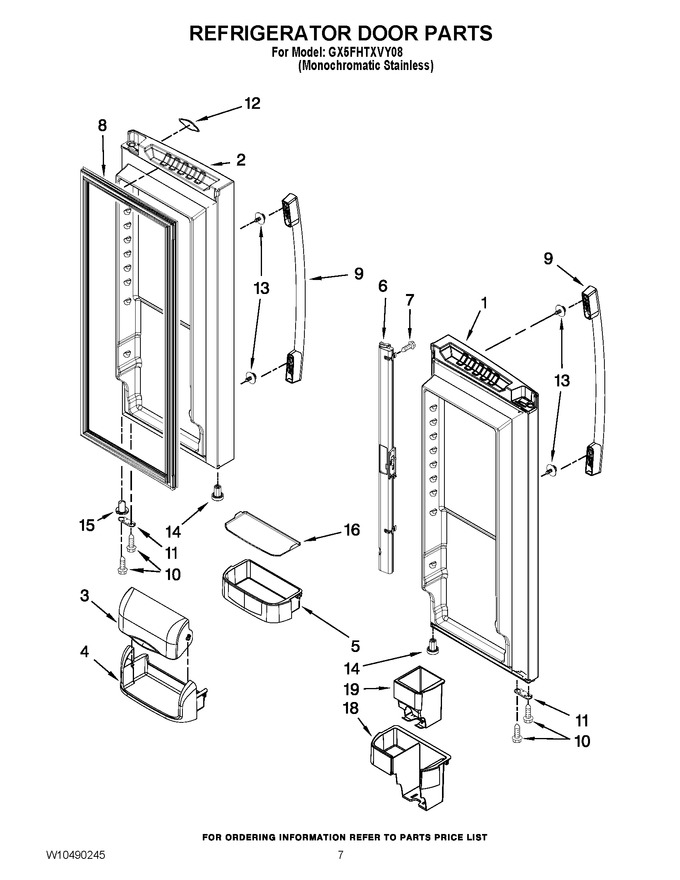

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 13107852SQ | Door, Left (stainless) (Replaces: 13107852S) |
|
$ 1,093.26 | |||||
| 2 | 13107855SQ | Door, Right (stainless) (Replaces: 13107855S) |
|
$ 1,143.87 | |||||
| 3 | WP67003637 | Door, Dairy (Replaces: 12804701SP) |
|
Immediately | $ 82.67 | ||||
| 4 | WP67001279 | Tray, Dairy (Replaces: 12369502SP) |
|
Immediately | $ 88.01 | ||||
| 5 | WPW10289497 | Bucket, Door (gallon (1)) (Replaces: W10289497) |
|
Immediately | $ 81.09 | ||||
| 5 | WPW10371194 | Bucket, Door (medium (3)) (Replaces: W10371194) |
|
Immediately | $ 77.23 | ||||
| 6 | WP12722803AP | Mullion, Door (apollo Grey) (Replaces: 12732501AP) |
|
Immediately | $ 177.93 | ||||
| 7 | W11311945 | Screw (Replaces: 12990204) |
|
$ 14.72 | |||||
| 8 | W10830162 | Gasket, Door (apollo Grey) (Replaces: W10443225) |
|
Immediately | $ 212.57 | ||||
| 9 | W11351147 | Handle, Door (stainless) (Replaces: W10223019N) |
|
$ 198.22 | |||||
| 10 | WP98165 | Screw (Replaces: 12990504) |
|
$ 8.57 | |||||
| 11 | W11703060 | Stop, Door (apollo Grey) (Replaces: 12968202AP) |
|
$ 15.46 | |||||
| 12 | WPW10393265 | Nameplate (Replaces: W10393265) |
|
Immediately | $ 73.15 | ||||
| 13 | WPW10288153 | Mount, Handle (Replaces: W10288153) |
|
Immediately | $ 9.65 | ||||
| 14 | 12028601AP | Bushing (bottom Right) |
|
$ 5.71 | |||||
| 14 | 12699301AP | Bushing (bottom Left) |
|
$ 13.44 | |||||
| 15 | WP12028505AP | Closure, Door (apollo Grey) (Replaces: 12028505AP) |
|
Immediately | $ 61.46 | ||||
| 16 | 12567309SP | Gripper-bucket |
|
- | |||||
| 18 | WP13005401SP | Sleeve, Can Dispenser (Replaces: 13005401SP) |
|
Immediately | $ 79.12 | ||||
| 19 | W10169346 | Bucket, Can Dispenser |
|
$ 49.22 |
