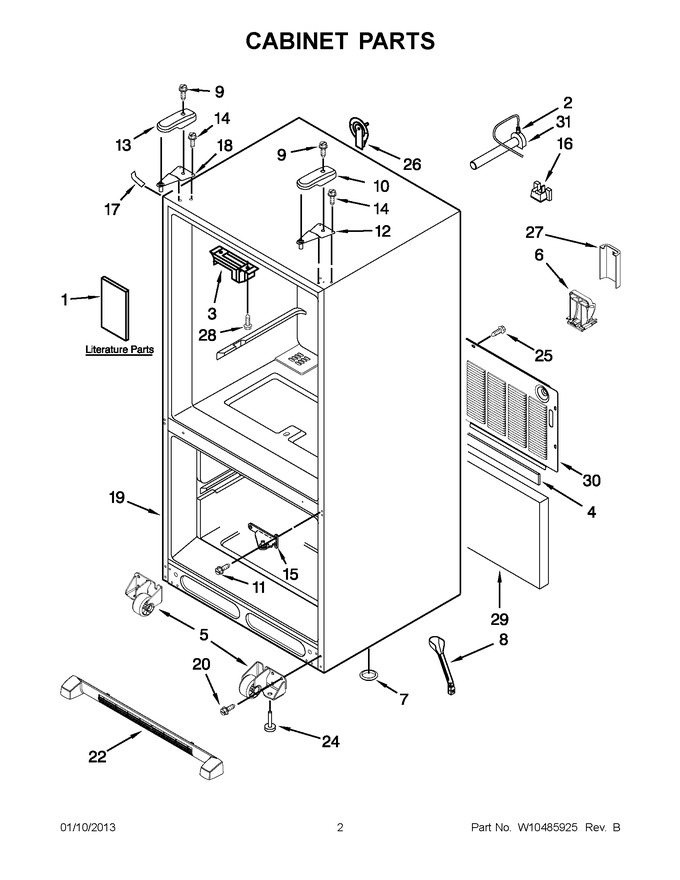

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10208326 | Energy Guide |
|
- | |||||
| 1 | W10477601 | Tech Sheet |
|
- | |||||
| 1 | W10366208 | Guide, Use & Care |
|
- | |||||
| 2 | WPM0114003 | Clip, Speed (Replaces: M0114003) |
|
$ 11.60 | |||||
| 3 | WP67003405 | Plate, Pivot (Replaces: 12698403) |
|
Immediately | $ 8.21 | ||||
| 4 | B5759655 | Gasket |
|
$ 13.03 | |||||
| 5 | W11820444 | Roller Foot Assembly (left Hand) (Replaces: W10515763) |
|
Immediately | $ 37.35 | ||||
| 5 | W11820445 | Roller Foot Assembly (right Hand) (Replaces: W10515762) |
|
Immediately | $ 37.35 | ||||
| 6 | W10528513 | Sweep, Dual Tube |
|
$ 43.74 | |||||
| 7 | A3076901 | Plug, Button |
|
$ 5.70 | |||||
| 8 | W10619951 | Tube-drain (Replaces: W10344402) |
|
Immediately | $ 42.39 | ||||
| 9 | WP8281196 | Screw (Replaces: 12992602) |
|
Immediately | $ 7.55 | ||||
| 10 | 12629801AP | Cover, Right Hinge (grey) |
|
$ 13.71 | |||||
| 11 | W11573362 | Screw (Replaces: W10339086) |
|
$ 14.72 | |||||
| 12 | 12626910ED | Hinge, Top Right |
|
$ 124.87 | |||||
| 13 | W10217487 | Cover, Left Hinge (grey) |
|
$ 22.48 | |||||
| 14 | WP489349 | Screw (Replaces: 12992403) |
|
Immediately | $ 8.43 | ||||
| 15 | 12655102AP | Hinge, Center (grey) |
|
$ 150.87 | |||||
| 16 | 12777701 | Block, Fill Tube |
|
$ 7.17 | |||||
| 17 | WP12587703AP | Cover, Corner (grey) (Replaces: 12587703AP) |
|
$ 8.07 | |||||
| 18 | 12626911ED | Hinge, Top Left |
|
$ 89.05 | |||||
| 19 | N/P | Cabinet (not A Serviceable Part) |
|
- | |||||
| 20 | 67006564 | Screw (Replaces: 12991302) |
|
Immediately | $ 8.15 | ||||
| 22 | WPW10534155 | Grille Assembly (grey) (Replaces: W10244558N) |
|
Immediately | $ 119.56 | ||||
| 24 | WPW10141622 | Brake, Roller (Replaces: W10141622) |
|
Immediately | $ 8.24 | ||||
| 25 | 67006425 | Screw (Replaces: 12990511) |
|
Immediately | $ 7.30 | ||||
| 26 | 12726003 | Cover, Water Line |
|
$ 19.19 | |||||
| 27 | W10208593 | Guard, Dual Water Valve |
|
$ 15.71 | |||||
| 28 | W10854958 | Screw (Replaces: 12990302) |
|
$ 7.90 | |||||
| 29 | 12820505 | Insulation |
|
$ 71.70 | |||||
| 30 | WPW10211855 | Cover, Unit (Replaces: W10211855) |
|
$ 207.99 | |||||
| 31 | W11176463 | Elbow, Fill Tube (Replaces: 10463203) |
|
Immediately | $ 119.86 |
