Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 13107852W Door, Left (white) Appelez-nous -
1 13107852B Door, Left (black) Appelez-nous -
2 13107855WQ Door, Right (white)   (Replaces: 13107855W) Special Order $ 893.74

2 13107855BQ Door, Right (black)   (Replaces: 13107855B) Special Order $ 1,158.68

3 WP67003637 Door, Dairy   (Replaces: 12804701SP) In-Stock Immediately $ 82.67

4 WP67001279 Tray, Dairy   (Replaces: 12369502SP) In-Stock Immediately $ 88.01

5 WPW10371193 Bucket (medium)   (Replaces: W10371193) In-Stock Immediately $ 74.80

6 W11311945 Screw   (Replaces: 12990204) Special Order $ 14.72

7 WPW10661886 Screw, Mount   (Replaces: W10303465) In-Stock Immediately $ 12.88

8 W10830189 Gasket, Door (2) (white)   (Replaces: W10443221) In-Stock Immediately $ 228.91

8 W11368721 Gasket, Door (2) (black)   (Replaces: W10435968) In-Stock Immediately $ 169.21

12 W10289496 Bucket, Gallon Special Order $ 35.05

14 WP12722803B Mullion, Door (black)   (Replaces: 12732501B) In-Stock Immediately $ 206.80

14 WP12722803W Mullion, Door (white)   (Replaces: 12732501W) In-Stock Immediately $ 261.21

15 WP98165 Screw   (Replaces: 12990504) Special Order $ 8.57

16 WP67003638 Closure, Door (white)   (Replaces: 12028505W) In-Stock Immediately $ 8.15

16 WP67003639 Closure, Door (black)   (Replaces: 12028505B) Special Order $ 90.32

17 12968202W Stop, Door (white) Special Order $ 69.29

17 W11708403 Stop, Door (black)   (Replaces: 12968202B) In-Stock Immediately $ 14.75

18 WPW10450021 Mat, Medium   (Replaces: 12567321SP) In-Stock Immediately $ 100.93

21 WPW10243392 Nameplate (black)   (Replaces: W10243392) Special Order $ 73.70

21 WPW10243393 Nameplate (white)   (Replaces: W10243393) Special Order $ 69.98

22 W11402028 Mat, Gallon   (Replaces: 12567320SP) In-Stock Immediately $ 89.74

25 W10314516N Handle, Door (black) Appelez-nous -
25 WPW10314515 Handle, Door (white)   (Replaces: W10314515N) Special Order $ 238.49


    View Diagram in Separate Window     Print Icon   Print Part List

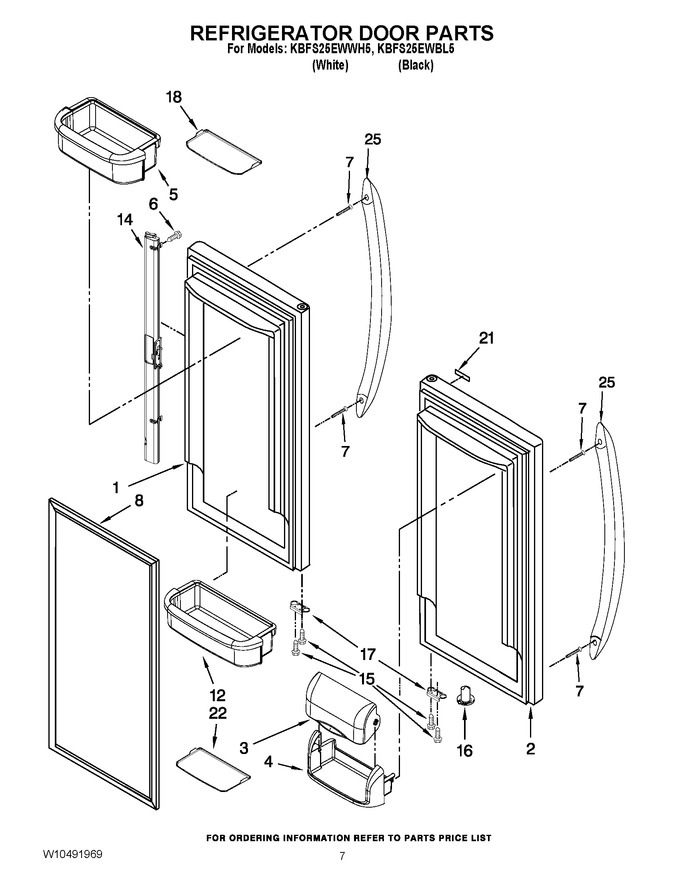

Diagram for KBFS25EWWH5
