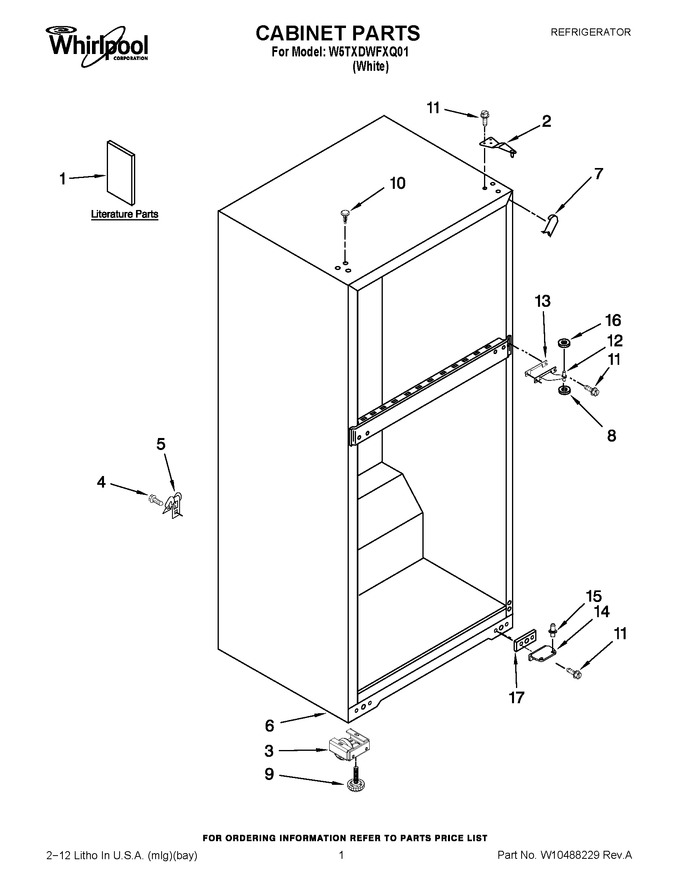

01 - Cabinet Parts
02 - Door Parts
03 - Liner Parts
04 - Unit Parts
05 - Shelf Parts
06 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10267792 | Energy Label |
|
- | |||||
| 1 | 2316016 | Use & Care Guide |
|
- | |||||
| 1 | W10473019 | Service & Wiring Sheet |
|
- | |||||
| 2 | WP2261963 | Hinge Assy, Top (Replaces: 2261963) |
|
Immediately | $ 99.45 | ||||
| 3 | WPW10142530 | Roller Assy, Front (includes Item 9) (Replaces: W10142530) |
|
Immediately | $ 118.10 | ||||
| 4 | WP489442 | Screw 8-18 X .600 (Replaces: 489442) |
|
Immediately | $ 11.49 | ||||
| 5 | 549193 | Clamp, Cord |
|
$ 14.06 | |||||
| 6 | N/P | Cabinet (not Serviced) |
|
- | |||||
| 7 | W10859322 | Corner Filler (Replaces: 2166003) |
|
$ 8.09 | |||||
| 8 | WP487576 | Washer, Nylon (Replaces: 487576) |
|
Immediately | $ 9.88 | ||||
| 9 | WPW10133299 | Leveler (Replaces: W10133299) |
|
$ 12.35 | |||||
| 10 | WP2151652 | Hole Plug (Replaces: 2201012) |
|
$ 22.87 | |||||
| 11 | WP489497 | Screw 12-24 X .700 (Replaces: 489497) |
|
Immediately | $ 29.09 | ||||
| 12 | WP2166037 | Hinge Assy, Center (Replaces: 2166086) |
|
$ 85.08 | |||||
| 13 | 2166043 | Hinge Shim, Center |
|
$ 69.76 | |||||
| 14 | WP2325482 | Hinge Assy, Bottom (Replaces: 2325482) |
|
Immediately | $ 80.00 | ||||
| 15 | WP2325483 | Hinge-pin, Bottom (Replaces: 2325483) |
|
Immediately | $ 7.55 | ||||
| 16 | WP489467 | Washer, Plastic (Replaces: 489341) |
|
Immediately | $ 11.42 | ||||
| 17 | WP2201567 | Hinge Shim, Bottom (Replaces: 2201567) |
|
Immediately | $ 8.16 |
