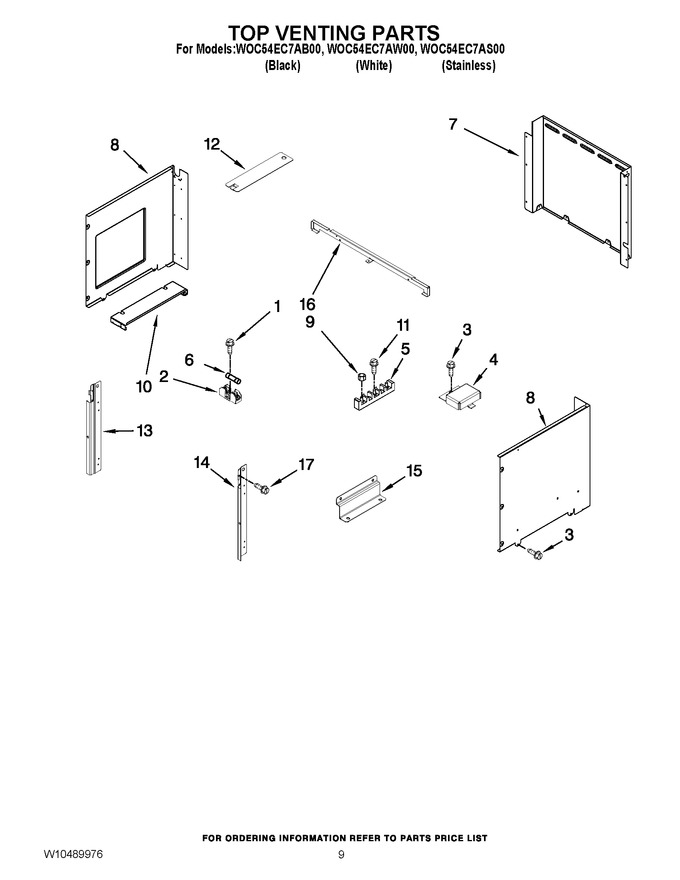

07 - Top Venting Parts


08 - Microwave Door Parts


09 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP4449154		Screw   (Replaces: 4449154)				$ 8.16
2	4454949		Holder, Fuse				$ 95.24
3	4448040		Screw		Appelez-nous	-
4	W11819303		Cover, Connector   (Replaces: 8285593)		Appelez-nous	-
5	WPW10245259		Block, Terminal   (Replaces: 7401P038-60)			Immediately	$ 35.17
6	WPW10017410		Fuse   (Replaces: W10017410)			Immediately	$ 22.23
7	W10283000		Chassis, Back Combo		Appelez-nous	-
8	W10351301		Side, Combo (right)		Appelez-nous	-
8	W10283028		Side, Combo (left)				$ 83.55
9	WP7103P027-60		Nut, Terminal Block   (Replaces: 7103P027-60)			Immediately	$ 7.55
10	W10356644		Support, Microwave Module		Appelez-nous	-
11	W11684512		Screw   (Replaces: 3400080)				$ 14.81
12	W10356437		Cover, Slot Module		Appelez-nous	-
13	W10360516		Rail, Lh				$ 84.67
14	W10360518		Rail, Rh				$ 84.67
15	W10283025		Side, Bracket		Appelez-nous	-
16	W10283023		Support, Crossbar		Appelez-nous	-
17	WP3400832		Screw   (Replaces: 3400832)			Immediately	$ 8.18
