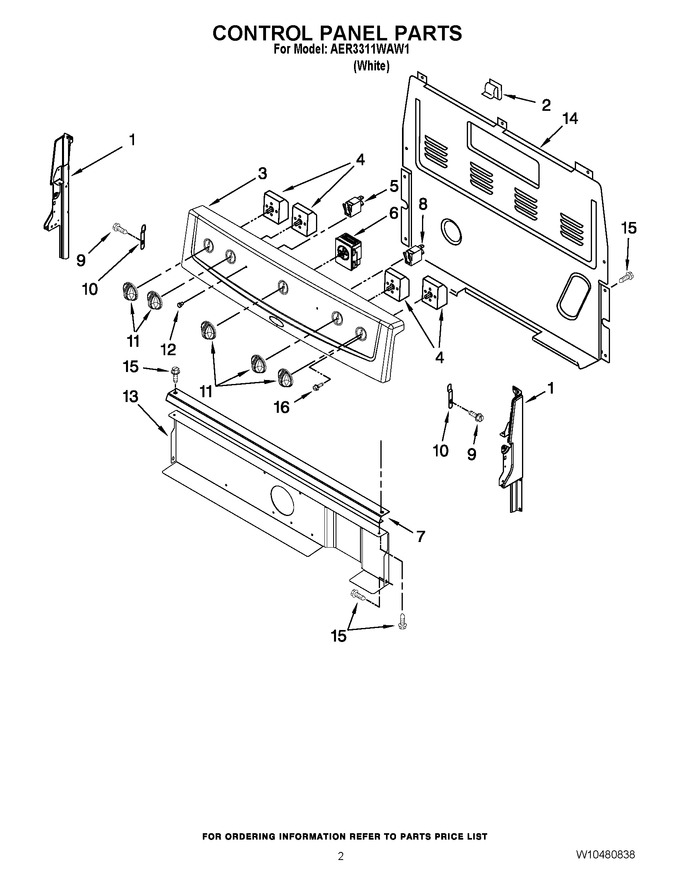

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11219365 | Endcap (white Left Hand) (Replaces: W10184433) |
|
$ 42.45 | |||||
| 1 | W11219370 | Endcap (white Right Hand) (Replaces: W10184434) |
|
$ 60.83 | |||||
| 2 | WP8273564 | Clip (Replaces: 8273564) |
|
$ 12.66 | |||||
| 3 | W11219378 | Panel, Backguard (white) (Replaces: W10259290) |
|
$ 134.80 | |||||
| 4 | 5500-287 | Switch, Infinite (use W/ 6`` Element) (Replaces: 3148951) |
|
Immediately | $ 52.39 | ||||
| 4 | 5500-287 | Switch, Infinite (use W/ 8`` Element) (Replaces: 3148953) |
|
Immediately | $ 52.39 | ||||
| 5 | WP8523265 | Indicator, Light (125v) (Replaces: 8523265) |
|
Immediately | $ 86.31 | ||||
| 6 | WP9762215 | Electric Control (Replaces: 9762215) |
|
Immediately | $ 365.17 | ||||
| 7 | W10525121 | Bracket Console Mounting (Replaces: W10182322) |
|
$ 98.85 | |||||
| 8 | WP8523266 | Indicator, Light (250v) (Replaces: 8523266) |
|
$ 117.50 | |||||
| 9 | WP3196175 | Screw (Replaces: 3196165) |
|
Immediately | $ 7.55 | ||||
| 10 | 3196200 | Clip, Spring |
|
$ 10.45 | |||||
| 11 | WP9761962 | Knob (white) (Replaces: 9761962) |
|
Immediately | $ 20.65 | ||||
| 12 | WP3196068 | Lens, Indicator (Replaces: 3196068) |
|
Immediately | $ 6.26 | ||||
| 13 | W10134247 | Shield, Heat |
|
Immediately | $ 358.82 | ||||
| 14 | WP8272473 | Cover, Upper Rear (Replaces: 8272473) |
|
$ 219.04 | |||||
| 15 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 14.72 | ||||
| 16 | WP3400882 | Screw (Replaces: 3400882) |
|
Immediately | $ 7.55 |
