SELECT A DIAGRAM

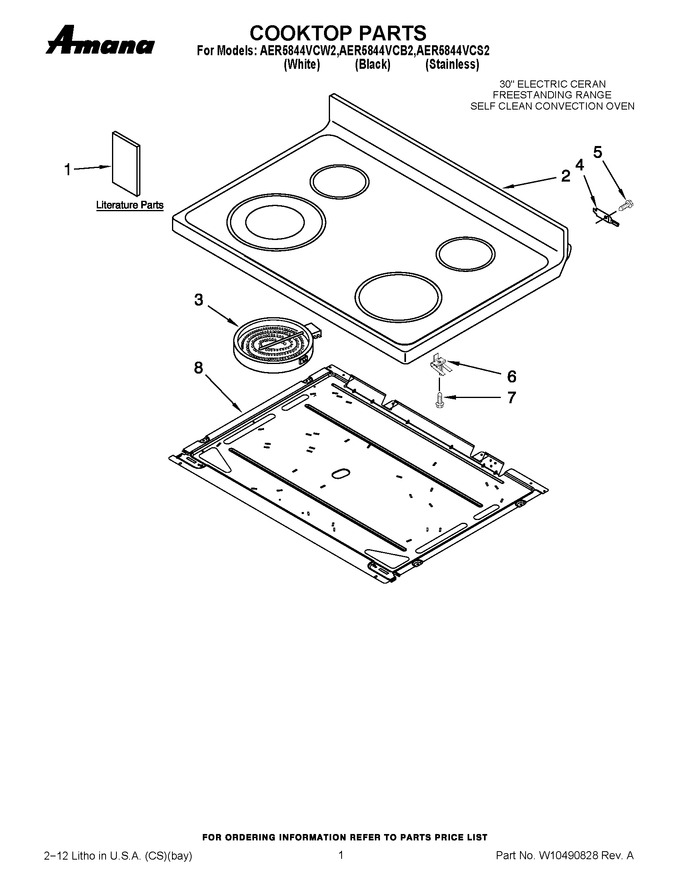

01 - Cooktop Parts
02 - Control Panel Parts
03 - Chassis Parts
04 - Drawer And Rack Parts
05 - Door Parts
06 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10434979 | Tech Sheet (english) |
|
- | |||||
| 1 | W10434980 | Tech Sheet (french) |
|
- | |||||
| 1 | W10403812 | Installation Instructions(english/french) |
|
- | |||||
| 1 | 9762761 | Safe Cooking (english) |
|
- | |||||
| 1 | W10065852 | Safe Cooking (french) |
|
- | |||||
| 1 | W10419380 | Owner?s Manual |
|
- | |||||
| 2 | W10245805 | Cooktop (black) (Replaces: W10176730) |
|
$ 553.83 | |||||
| 2 | W10245804 | Cooktop (white) (Replaces: W10176729) |
|
$ 769.30 | |||||
| 3 | W11047722 | Element, Surface (2500 W - Rf) (Replaces: 8273992) |
|
Immediately | $ 132.46 | ||||
| 3 | WPW10275049 | Element, Surface (2500/1200 W - Lf) (Replaces: W10275049) |
|
Immediately | $ 314.23 | ||||
| 3 | W10823711 | Element, Surface (1200w (lr-rr)) (Replaces: 8523698) |
|
Immediately | $ 204.39 | ||||
| 4 | WP3195060 | Hinge, Cooktop (Replaces: 3195060) |
|
Immediately | $ 13.18 | ||||
| 5 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.95 | ||||
| 6 | WPW10225448 | Spring, Locator (Replaces: W10225448) |
|
Immediately | $ 10.40 | ||||
| 7 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.95 | ||||
| 8 | W11728329 | Pan, Radiant Element (Replaces: W10106409) |
|
Immediately | $ 143.49 |
