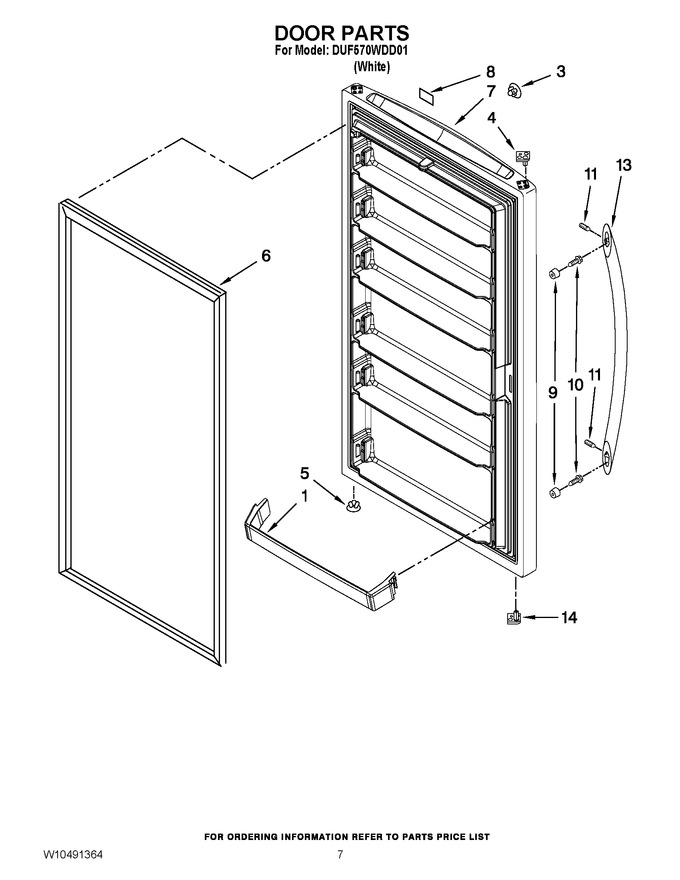

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4-82272-001		Rail, Door (1)				$ 39.71
3	WP2189000		Plug, Door (wh)   (Replaces: 1-60121-001)			Immediately	$ 7.77
4	2-81124-001		Stop, Door (upper)				$ 31.15
5	3-24898-007		Vent Plug				$ 11.34
6	WP4-65151-004		Gasket, Door   (Replaces: 4-65151-004)				$ 382.94
7	W10340638		Door Assembly (includes Interior Door Liner)		Appelez-nous	-
8	3-35752-002		Nameplate		Appelez-nous	-
9	3-65447-001		Bushing, Handle				$ 17.34
10	W11772394		Screw   (Replaces: 3-24004-091)			Immediately	$ 13.22
11	8533976		Set Screw				$ 8.35
13	3-82597-002		Handle Assembly (includes Item 11)				$ 85.01
14	2-81124-001		Stop, Door (lower)				$ 31.15
