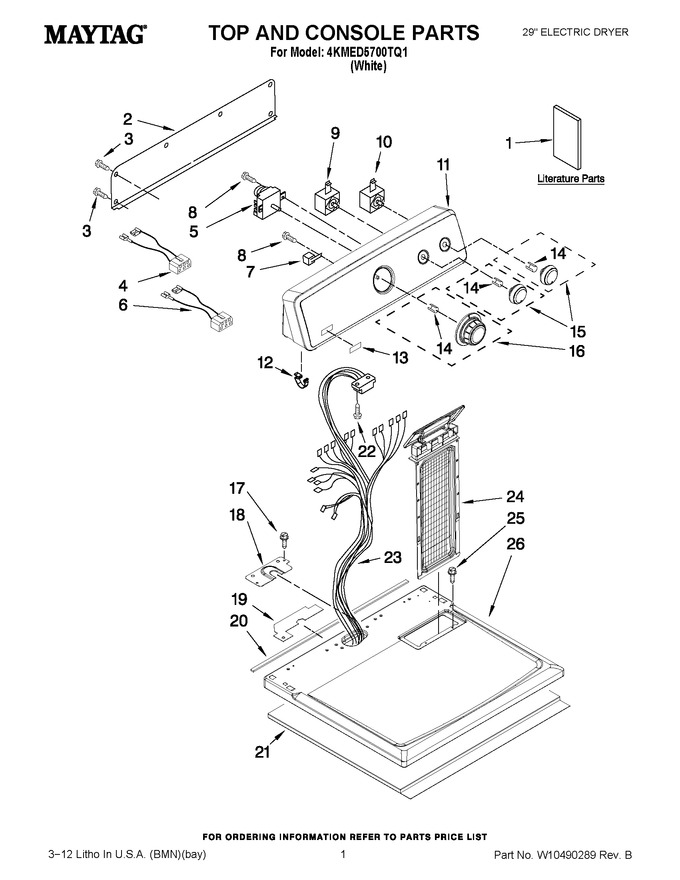

01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts


04 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10131620		Use & Care Guide (arabic)		Appelez-nous	-
1	W10396179		Wiring Diagram		Appelez-nous	-
1	W10131625		Sheet, Cycle Feature (english)		Appelez-nous	-
1	W10131626		Sheet, Cycle Feature (arabic)		Appelez-nous	-
1	W10131619		Use & Care Guide (english)		Appelez-nous	-
2	W10112576		Panel, Rear				$ 61.99
3	WP693995		Screw, 8-18 X 3/8   (Replaces: 693995)			Immediately	$ 7.55
4	W10113080		Wire, Jumper (buzzer On/off)		Appelez-nous	-
5	WP3979617		Timer, 60 Hz.   (Replaces: 3979617)			Immediately	$ 385.79
6	W10110861		Switch, Rotary Twist Mount		Appelez-nous	-
7	3952439		Buzzer, Mini		Appelez-nous	-
8	WP90767		Screw, 8-18 X 5/16   (Replaces: 8533971)			Immediately	$ 8.25
9	WP3399639		Switch, Temperature   (Replaces: 3399639)				$ 131.16
10	WPW10112668		Switch, Push-to-start   (Replaces: W10112668)				$ 128.11
11	W10086704		Console & Shell Assembly (includes Items 12 & 13)		Appelez-nous	-
12	WP8312709		Clip-console   (Replaces: 8312709)			Immediately	$ 16.59
13	W10203949		Badge Assembly				$ 72.04
14	WP8536939		Clip, Spring   (Replaces: 8536939)			Immediately	$ 8.20
15	WPW10110029		Knob, Control   (Replaces: W10110029)				$ 55.41
16	W10110030		Timer-knob Assembly				$ 26.39
17	WP33001882		Screw, 8-18 X 3/4   (Replaces: 337686)				$ 83.71
18	8565981		Bracket, Harness		Appelez-nous	-
19	W10112603		Seal-harness		Appelez-nous	-
20	W10224672		Seal-foam Control Bracket		Appelez-nous	-
21	W10123956		Panel, Dampening		Appelez-nous	-
22	WP681414		Screw   (Replaces: 343641)			Immediately	$ 8.47
23	W10386313		Harness, Wiring		Appelez-nous	-
24	W11778253		Screen, Lint   (Replaces: 8565972)			Immediately	$ 54.63
25	W11693756		Screw   (Replaces: 688983)			Immediately	$ 14.76
26	8579695		Top		Appelez-nous	-
