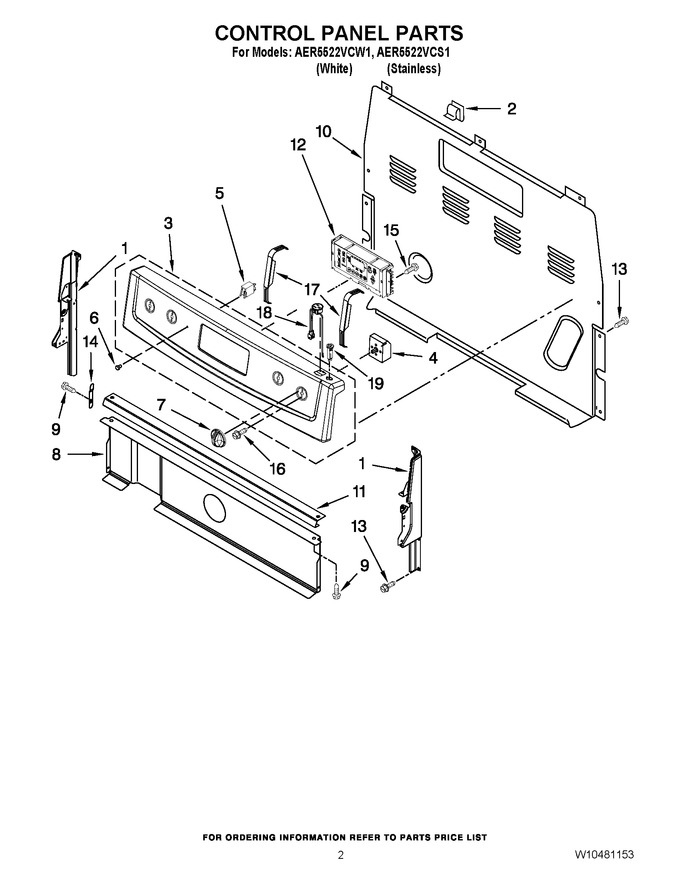

01 - Cooktop Parts
02 - Control Panel Parts
03 - Chassis Parts
04 - Drawer & Broiler Parts
05 - Door Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11219365 | Endcap (white Left Hand) (Replaces: W10184433) |
|
$ 38.21 | |||||
| 1 | W11219370 | Endcap (white Right Hand) (Replaces: W10184434) |
|
$ 54.75 | |||||
| 1 | W11219664 | Endcap (black Left Hand) (Replaces: W10184437) |
|
Immediately | $ 138.45 | ||||
| 1 | W11219665 | Endcap (black Right Hand) (Replaces: W10184438) |
|
Immediately | $ 40.65 | ||||
| 2 | WP8273564 | Clip (Replaces: 8273564) |
|
$ 11.39 | |||||
| 3 | W10170029 | Panel, Control (white) |
|
$ 65.66 | |||||
| 3 | W10182890 | Panel, Control (stainless Steel) |
|
$ 97.38 | |||||
| 4 | WP3148952 | Switch, Infinite (right Front) (Replaces: 3148952) |
|
Immediately | $ 62.56 | ||||
| 4 | WP3149400 | Switch, Infinite (right Rear) (Replaces: 3148954) |
|
Immediately | $ 81.46 | ||||
| 5 | WP8523265 | Light, Indicator (Replaces: 8523265) |
|
Immediately | $ 91.76 | ||||
| 6 | WP3196068 | Lens, Light (Replaces: 3196068) |
|
Immediately | $ 5.63 | ||||
| 7 | W10119706 | Knob, Infinite (black) |
|
$ 47.61 | |||||
| 7 | W10119705 | Knob, Infinite (white) |
|
Immediately | $ 47.85 | ||||
| 8 | W10134247 | Shield, Heat |
|
Immediately | $ 322.94 | ||||
| 9 | WP3196175 | Screw (Replaces: 3196165) |
|
Immediately | $ 6.80 | ||||
| 10 | WP8272473 | Cover, Upper (Replaces: 8272473) |
|
$ 197.14 | |||||
| 11 | W10525121 | Brkt-mntg,console (Replaces: W10182322) |
|
$ 88.97 | |||||
| 12 | W10271730 | Control (lcc95) (black) |
|
- | |||||
| 12 | W10271729 | Control (lcc95) (white) |
|
- | |||||
| 13 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 13.25 | ||||
| 14 | 3196200 | Clip, Spring |
|
$ 9.41 | |||||
| 15 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.16 | ||||
| 16 | WP3400882 | Screw (Replaces: 3400882) |
|
Immediately | $ 6.80 | ||||
| 17 | W11230932 | Brkt, Mntg Eoc (Replaces: W10138683) |
|
Immediately | $ 76.33 | ||||
| 18 | W10849725 | Receptacle (white) (Replaces: W10203476) |
|
Immediately | $ 100.00 | ||||
| 18 | W10861164 | Receptacle (black) (Replaces: W10203475) |
|
Immediately | $ 16.62 | ||||
| 19 | WP9757601 | Breaker, Circuit (white) (Replaces: 9757601) |
|
Immediately | $ 59.00 | ||||
| 19 | WP9757602 | Breaker, Circuit (black) (Replaces: 9757602) |
|
Immediately | $ 54.82 |
