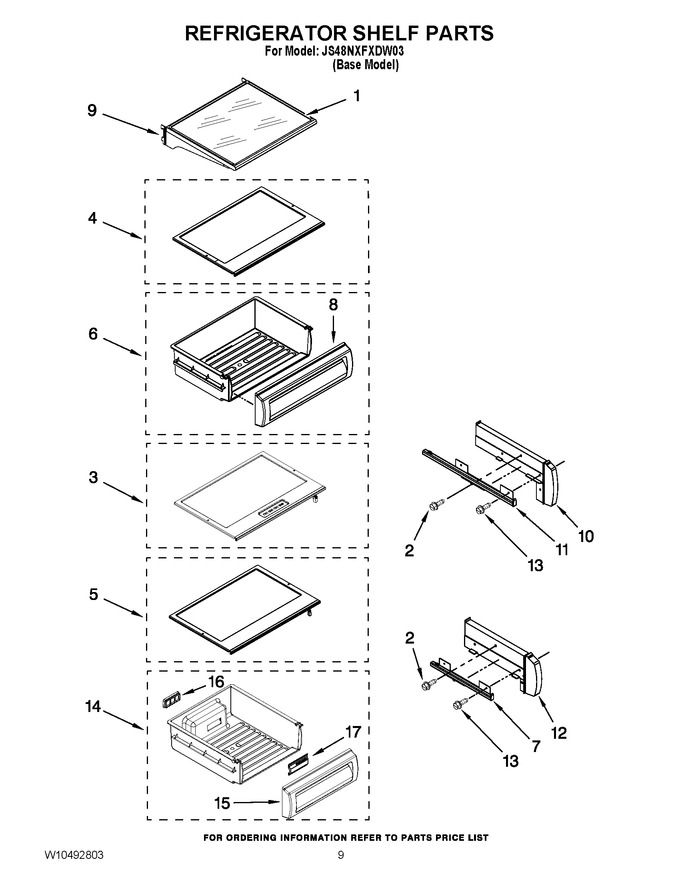

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10187538		Shelf Assy   (Replaces: W10187538)				$ 409.83
2	8281160		Screw		Appelez-nous	-
3	W10137287		Cover Assy, Crisper (upper)		Appelez-nous	-
4	W10217205		Cover Assy, Meat Pan				$ 282.09
5	W10189067		Cover Assy, Crisper (lower)		Appelez-nous	-
6	W10407641		Meat Pan Assy		Appelez-nous	-
7	2302954		Slide, Meat Pan (lh)				$ 343.49
7	2302955		Slide, Meat Pan (rh)				$ 343.18
8	WP2256367		Front, Meat Pan   (Replaces: 2256367)				$ 182.76
9	W10187549		Sidearm-shelf				$ 299.12
10	W10137277		Spacer, Crisper				$ 74.46
11	2302957		Slide, Crisper (rh)				$ 228.33
11	2302956		Slide, Crisper (lh)				$ 298.73
12	W10217428		Spacer, Pan		Appelez-nous	-
13	W11830745		Screw   (Replaces: 8533929)		Appelez-nous	-
14	W10407639		Pan Assembly Crisper				$ 183.29
15	W10407625		Front, Crisper Pan   (Replaces: 2256249)				$ 178.12
16	2307810		Duct Deli Pan		Appelez-nous	-
17	2317939		Air Deflector		Appelez-nous	-
