SELECT A DIAGRAM

01 - Oven Parts


02 - Oven Door Parts


03 - Internal Oven Parts

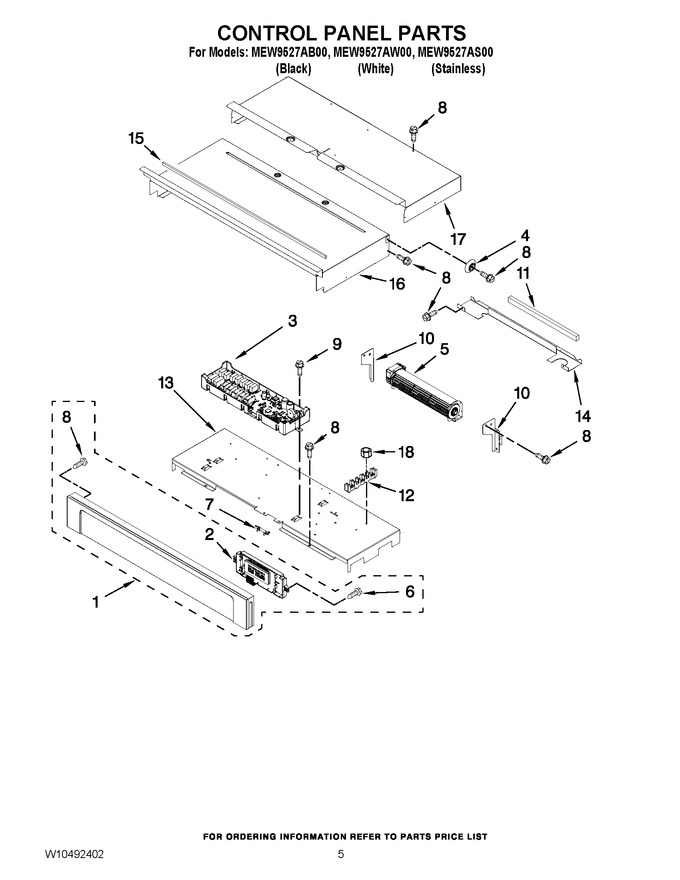

04 - Control Panel Parts


05 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10364109		Assembly, Control Panel (includes Overlay) (black)				$ 393.10
1	W10364110		Assembly, Control Panel (includes Overlay) (white)		Appelez-nous	-
1	W10364108		Assembly, Control Panel (includes Overlay) (stainless)				$ 370.84
2	W10284942		Board, Mrc2 Display				$ 348.82
3	WPW10260060		Board, Mrc2 Main   (Replaces: W10260060)			Immediately	$ 317.35
4	W10363824		Spacer, Lateral		Appelez-nous	-
5	W10286217		Blower				$ 208.35
6	WP12990527		Screw   (Replaces: 7101P403-60)			Immediately	$ 8.76
7	WPW10545255		Fuse, Thermal   (Replaces: W10436434)			Immediately	$ 27.91
8	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 8.25
9	WP7101P434-60		Screw   (Replaces: 7101P434-60)				$ 7.30
10	W10283078		Bracket, Blower (right)		Appelez-nous	-
10	W10351257		Bracket, Blower (left)		Appelez-nous	-
11	W10491987		Block, Foam   (Replaces: 4451758)			Immediately	$ 8.14
12	WPW10245259		Block, Terminal   (Replaces: 7401P038-60)			Immediately	$ 35.17
13	W10283005		Tray, Electronic		Appelez-nous	-
14	WPW10318191		Chassis, Divider Back   (Replaces: W10318191)				$ 81.94
15	WPW10657548		Gasket, Rubber   (Replaces: W10351292)				$ 89.66
16	W10318193		Chassis, Cover Top Front 27``				$ 136.08
17	W10318195		Chassis, Cover Top Back 27``				$ 111.04
18	WP7103P027-60		Nut, Terminal Block   (Replaces: 7103P027-60)			Immediately	$ 7.55

    View Diagram in Separate Window       Print Part List
