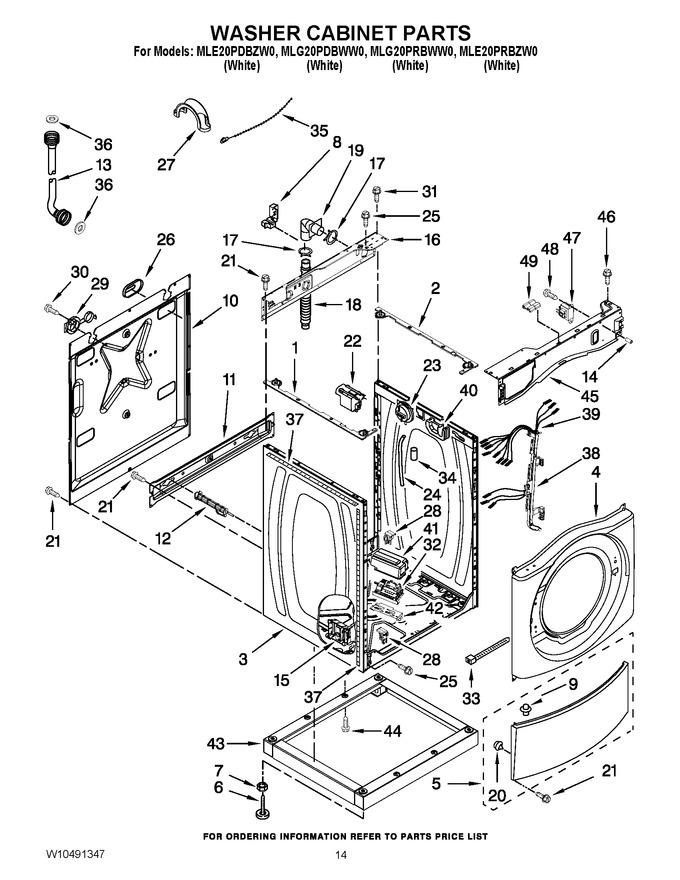

09 - Washer Cabinet Parts


10 - Dispenser Parts


11 - Tub And Basket Parts


12 - Pump And Motor Parts


13 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11175840		Rail-spacer, Left   (Replaces: W10405229)		Appelez-nous	-
2	W10405223		Rail-spacer, Right		Appelez-nous	-
3	W10198145		Cabinet   (Replaces: W10225458)		Appelez-nous	-
4	WPW10306505		Panel, Front   (Replaces: W10306505)				$ 374.67
5	WP8540664		Toe Panel   (Replaces: 8540813)				$ 377.11
6	W10862938		Foot, Leveling   (Replaces: W10245373)			Immediately	$ 13.22
7	WP3359452		Nut, Lock   (Replaces: 3359452)			Immediately	$ 7.55
8	8182635		Strain Relief, Power Cord   (Replaces: W10110676)				$ 17.56
9	8518891		Rivet				$ 14.07
10	W10258342		Panel, Rear		Appelez-nous	-
11	W10189659		Brace, Transport				$ 45.35
12	W10763471		Bolt, Shipping   (Replaces: W10251449)				$ 42.13
13	WP89503		Hose, Water Inlet (cold Water)   (Replaces: W10194208)			Immediately	$ 24.09
13	WP89503		Hose, Water Inlet (hot Water)   (Replaces: 8571378)			Immediately	$ 24.09
14	W10018050		Caplug		Appelez-nous	-
15	WPW10384849		Motor Control Unit   (Replaces: W10384849)			Immediately	$ 367.93
16	W10244560		Brace, Rear				$ 94.10
17	WP356138		Clamp, Hose   (Replaces: 356138)			Immediately	$ 8.52
18	WPW10106460		Hose, Drain-outer   (Replaces: W10106460)				$ 28.68
19	W11757170		Connector, Hose Outlet   (Replaces: W10003260)			Immediately	$ 6.71
20	238614		Bumper				$ 84.79
21	WP489442		Screw, 8-18 X 5/8   (Replaces: W10015090)			Immediately	$ 11.49
22	WPW10367632		Filter, Interference   (Replaces: W10339736)				$ 128.33
23	W10292407		Switch, Pressure				$ 38.65
24	W11252474		Hose, Pressure Switch   (Replaces: 8540294)			Immediately	$ 35.23
25	8540479		Screw, Grounding				$ 9.22
26	WP8540268		Cover, Transport   (Replaces: 8540268)				$ 7.30
27	WP8577378		U-bend, Drain Hose   (Replaces: 8577378)				$ 8.37
28	WPW10085220		Microswitch   (Replaces: W10085220)				$ 34.91
29	W11116978		Sleeve, Cord Support   (Replaces: 8540728)				$ 23.94
30	8182201		Screw, 3 X 8 Mm   (Replaces: 8540727)				$ 14.08
31	8540329		Screw		Appelez-nous	-
32	W11181678		Microcomputer, Machine Control   (Replaces: W10487818)			Immediately	$ 631.28
33	WP2205813		Cable Tie   (Replaces: 3429563)				$ 8.11
34	W11751592		Sleeve, Pressure Switch Hose   (Replaces: 2161302)			Immediately	$ 21.32
35	WPW10339879		Cable Tie   (Replaces: 3347868)				$ 8.30
36	WP16123		Washer, Water Inlet Hose 1-1/16 X 5/8   (Replaces: 3976300)				$ 8.16
37	WP8318396A		Seal, Foam-iec   (Replaces: 8318396)				$ 39.71
38	W10200785		Harness Channel, Side Front   (Replaces: W10168546)				$ 9.54
39	W10330830		Harness, Main Wiring Includes Item 38				$ 303.46
40	8540643		Bracket, Spring				$ 12.86
41	W10405233		Cover, Ccu				$ 70.97
42	W10198280		Bracket, Ccu		Appelez-nous	-
43	W10103350A		Pedestal, Commercial   (Replaces: W10103350)		Appelez-nous	-
44	WPW10346892		Screw, 12-14 X 5/8   (Replaces: 3400111)			Immediately	$ 7.55
45	W10294428		Bracket, Console		Appelez-nous	-
46	WP489442		Screw, 8-18 X 5/8   (Replaces: W10015090)			Immediately	$ 11.49
47	W11403858		Transformer, 120 To 22.5 Vac   (Replaces: W10198388)				$ 209.23
48	8540329		Screw, 8-18 X 7/16		Appelez-nous	-
49	W10198373		Retainer-base		Appelez-nous	-
NI	W10342208		Door Lock - Power		Appelez-nous	-
NI	W10342214		Ccu To Mcu-serial Communication (3 Pole)				$ 73.16
NI	W10342210		Ccu To Mcu-power (2 Pole)				$ 88.32
NI	W10330829		Ccu To Hot Fill Valve (2 Pole)   (Replaces: W10342201)		Appelez-nous	-
NI	W10342200		Ccu To Cold Fill Valve (4 Pole)		Appelez-nous	-
NI	N/P		The Following Cable Sets: (not Illustrated)		Appelez-nous	-
