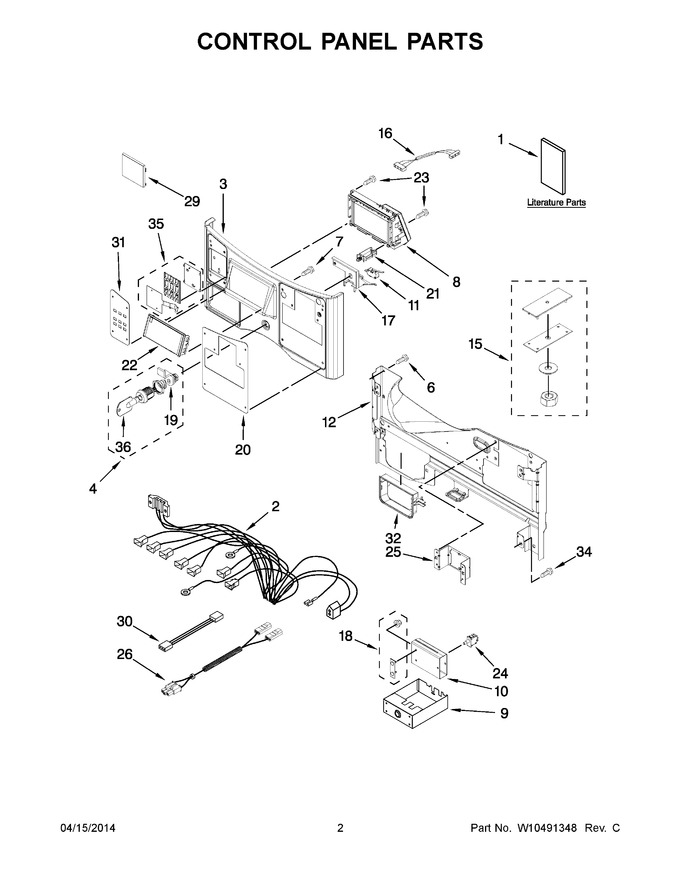

02 - Control Panel Parts


03 - Dryer Cabinet Parts


04 - Bulkhead And Blower Parts


05 - Dryer Door Parts


06 - Washer Door Parts


07 - Washer Cabinet Parts


08 - Dispenser Parts


09 - Tub And Basket Parts


10 - Pump And Motor Parts


11 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10335467		Instructions, Installation		Appelez-nous	-
1	W10394865		Sheet, Tech		Appelez-nous	-
2	W10242900		Harness, Main		Appelez-nous	-
3	W11181684		Panel Assembly, Console   (Replaces: W10198202)		Appelez-nous	-
4	W11231586		Lock, Service & Programming   (Replaces: W10198223)		Appelez-nous	-
6	WP488729		Screw   (Replaces: 3390647)			Immediately	$ 8.28
7	3400408		Screw		Appelez-nous	-
8	W10198221		Assembly, Techbox				$ 257.96
9	W11204019		Box, Coin   (Replaces: W10133248)				$ 163.85
10	W11204020		Assembly, Vault Body   (Replaces: W10133258)				$ 421.72
11	WPW10447152		Switch, Service Access   (Replaces: W10447152)				$ 43.26
12	W11200173		Bracket, Console   (Replaces: W10198369)		Appelez-nous	-
15	W11416034		Kit-coin Box, Security (to Be Serviced As A Kit)   (Replaces: W10169579)				$ 132.30
16	W11700545		Harness, Wire Dryer Ccu To Uic   (Replaces: W10242897)				$ 32.68
17	W10198375		Console, Support		Appelez-nous	-
18	W10159907		Assembly, Mounting Strap Weld		Appelez-nous	-
19	W11165684		Cam, Locking   (Replaces: W10133266)				$ 9.57
20	W10198335		Fascia		Appelez-nous	-
21	W10129069		Clip, Tube		Appelez-nous	-
22	W10198390		Display, Window				$ 86.45
23	WPW10273971		Screw   (Replaces: W10192860)			Immediately	$ 7.55
24	WPW10131838		Switch, Vault Service Door   (Replaces: W10131838)				$ 25.11
25	W10198322		Bracket		Appelez-nous	-
26	W10300896		Wire Harness, Vault Switch		Appelez-nous	-
29	W10198366		Cover Pd/pn		Appelez-nous	-
30	W10342214		Cable Set, Ui To Ccu Communication				$ 73.16
31	W10198331		Fascia Buttons		Appelez-nous	-
32	W10198345		Collar, Dispenser		Appelez-nous	-
34	WPW10131119		Screw   (Replaces: W10386302)				$ 7.30
35	WPW10198199		Assembly, Button Set   (Replaces: W10198199)				$ 233.34
36	WPW10114740		Key, Access Door   (Replaces: W10114740)				$ 137.49
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	W11519983		Card Reader, Conversion Kit   (Replaces: W10198451)				$ 78.10
NI	WPW10198367		Bezel   (Replaces: W10198367)				$ 24.53
