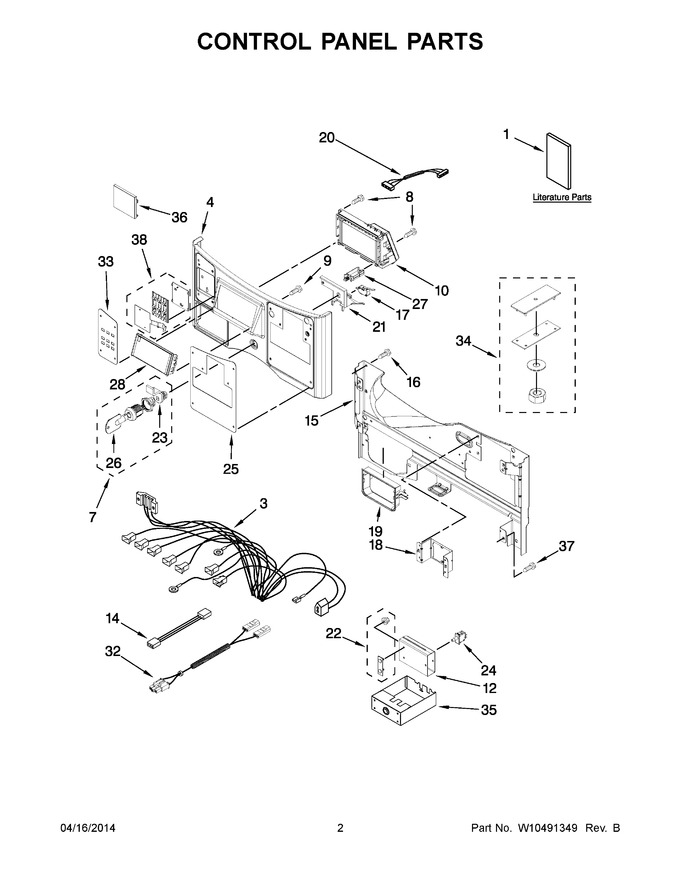

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10335467 | Instructions, Installation |
|
- | |||||
| 1 | W10394865 | Sheet, Tech |
|
- | |||||
| 3 | WPW10242899 | Harness, Wiring (Replaces: W10242899) |
|
$ 157.35 | |||||
| 4 | W11181684 | Panel Assembly, Console (Replaces: W10198202) |
|
- | |||||
| 7 | W11231586 | Lock, Service & Programming (Replaces: W10198223) |
|
- | |||||
| 8 | WPW10273971 | Screw (Replaces: W10192860) |
|
Immediately | $ 7.55 | ||||
| 9 | 3400408 | Screw |
|
- | |||||
| 10 | W10198221 | Assembly, Techbox |
|
$ 257.96 | |||||
| 12 | W11204020 | Assembly, Vault Body (Replaces: W10133258) |
|
$ 421.72 | |||||
| 14 | W10342214 | Cable Set, Ui To Ccu Communication |
|
$ 73.16 | |||||
| 15 | W11200173 | Bracket, Console (Replaces: W10198369) |
|
- | |||||
| 16 | WP488729 | Screw (Replaces: 3390647) |
|
Immediately | $ 8.28 | ||||
| 17 | WPW10447152 | Switch, Service Access (Replaces: W10447152) |
|
$ 43.26 | |||||
| 18 | W10198322 | Bracket |
|
- | |||||
| 19 | W10198345 | Collar, Dispenser |
|
- | |||||
| 20 | W11700545 | Harness, Wire Dryer Ccu To Uic (Replaces: W10242897) |
|
$ 32.68 | |||||
| 21 | W10198375 | Console, Support |
|
- | |||||
| 22 | W10159907 | Assembly, Mounting Strap Weld |
|
- | |||||
| 23 | W11165684 | Cam, Locking (Replaces: W10133266) |
|
$ 9.57 | |||||
| 24 | WPW10131838 | Switch, Vault Service Door (Replaces: W10131838) |
|
$ 25.11 | |||||
| 25 | W10198335 | Fascia |
|
- | |||||
| 26 | WPW10114740 | Key, Access Door (Replaces: W10114740) |
|
$ 137.49 | |||||
| 27 | W10129069 | Clip, Tube |
|
- | |||||
| 28 | W10198390 | Display, Window |
|
$ 86.45 | |||||
| 32 | W10300896 | Wire Harness, Vault Switch |
|
- | |||||
| 33 | W10198331 | Fascia Buttons |
|
- | |||||
| 34 | W11416034 | Kit-coin Box, Security (to Be Serviced As A Kit) (Replaces: W10169579) |
|
$ 132.30 | |||||
| 35 | W11204019 | Box, Coin (Replaces: W10133248) |
|
$ 163.85 | |||||
| 36 | W10198366 | Cover Pd/pn |
|
- | |||||
| 37 | WPW10131119 | Screw (Replaces: W10386302) |
|
$ 7.30 | |||||
| 38 | WPW10198199 | Assembly, Button Set (Replaces: W10198199) |
|
$ 233.34 | |||||
| NI | N/P | Following Parts Not Illustrated |
|
- | |||||
| NI | W11519983 | Card Reader, Conversion Kit (Replaces: W10198451) |
|
$ 78.10 | |||||
| NI | WPW10198367 | Bezel (Replaces: W10198367) |
|
$ 24.53 |
