SELECT A DIAGRAM

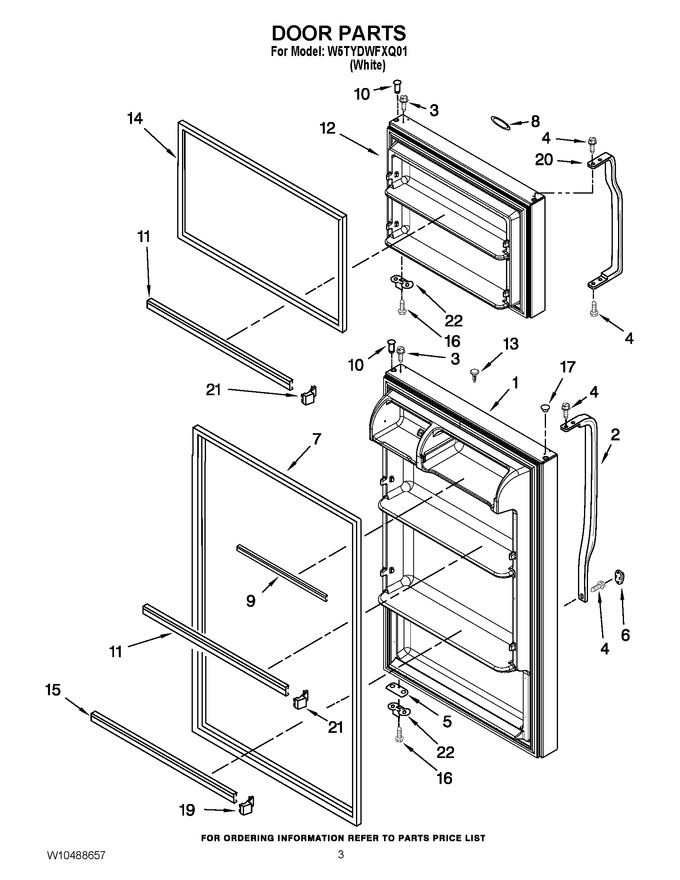

01 - Cabinet Parts


02 - Door Parts


03 - Liner Parts


04 - Unit Parts


05 - Shelf Parts


06 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LW10267742		Refrigerator Door (includes Items 7 & 10)   (Replaces: W10267742)		Appelez-nous	-
2	WP2221946W		Handle, Refrigerator   (Replaces: 2221946W)			Immediately	$ 130.11
3	WP8281206		Screw 8-18 X 1/2   (Replaces: 8281206)				$ 8.37
4	WP489357		Screw 8-18 X 5/8   (Replaces: 489357)			Immediately	$ 7.55
5	WP2258681W		Shim, Door Stop   (Replaces: 2258681W)			Immediately	$ 7.55
6	WP2202819W		Cover, Screw   (Replaces: 2202819W)			Immediately	$ 8.14
7	WP2319265T		Door Gasket, Magnetic   (Replaces: W10190033)			Immediately	$ 184.89
8	WP2213265		Nameplate   (Replaces: 2262218)			Immediately	$ 93.18
9	W11129820		Door Trim (top)   (Replaces: W10234242)			Immediately	$ 127.34
10	WP2183003		Thimble   (Replaces: 2262054)				$ 8.14
11	WP2266727		Door Trim (narrow)   (Replaces: 2266727)			Immediately	$ 92.50
12	W10267738		Freezer Door (includes Items 10 & 14)				$ 518.32
13	WP2189000		Hole Plug   (Replaces: 2189000)			Immediately	$ 7.77
14	WP2319263T		Door Gasket, Magnetic   (Replaces: W10190031)			Immediately	$ 169.53
15	WP2266738		Door Trim (wide)   (Replaces: 2266738)				$ 111.69
16	WP488921		Screw 8-15 X 1/2   (Replaces: 488921)			Immediately	$ 8.24
17	WP2212648		Plug, Hinge   (Replaces: 2212648)			Immediately	$ 8.19
19	WP2195916K		Endcap, Trim   (Replaces: 2195916)			Immediately	$ 13.18
20	WP2202098		Handle, Freezer   (Replaces: 2202098)				$ 156.82
21	WP2156003		Endcap, Trim   (Replaces: 2156003)			Immediately	$ 13.25
22	W11745278		Bracket, Door Stop   (Replaces: 2189202)			Immediately	$ 13.37
