View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM

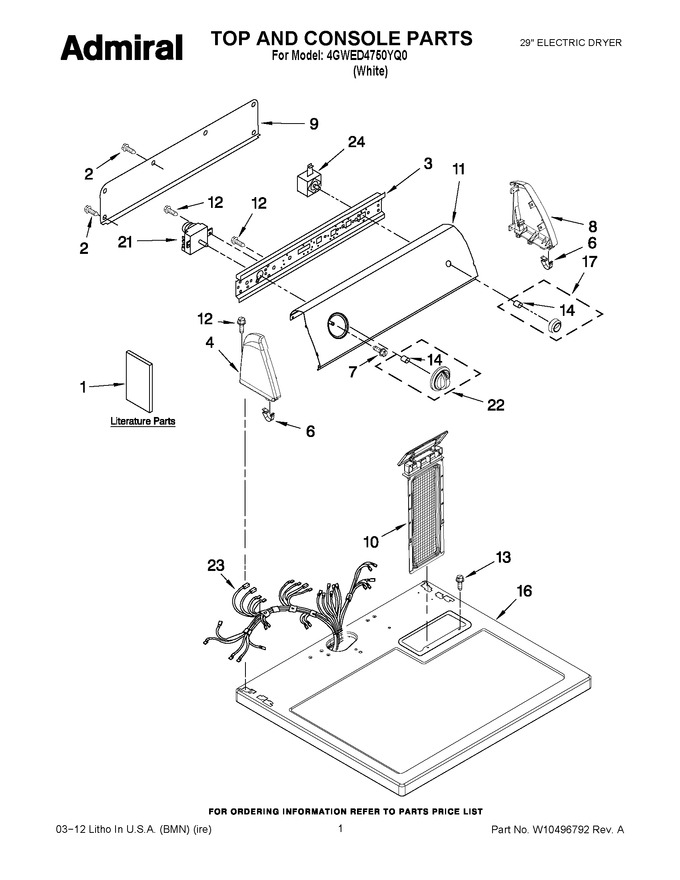

01 - Top And Console Parts
02 - Cabinet Parts
03 - Bulkhead Parts
04 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10454274 | Installation Instructions (english) |
|
- | |||||
| 1 | W10396178 | Wiring Diagram |
|
- | |||||
| 1 | W10454275 | U & C Guide (english) |
|
- | |||||
| 2 | WP693995 | Screw, Hex Head (Replaces: 693995) |
|
Immediately | $ 7.55 | ||||
| 3 | 8566052 | Bracket,control |
|
- | |||||
| 4 | WP8565957 | Cap, End (l.h.) (Replaces: 8566035) |
|
$ 64.76 | |||||
| 6 | WP8312709 | Clip-console (Replaces: 8312709) |
|
Immediately | $ 16.35 | ||||
| 7 | WP90767 | Screw, Grounding (Replaces: 3348629) |
|
Immediately | $ 8.25 | ||||
| 8 | WP8565954 | Cap, End (r.h.) (Replaces: 8566032) |
|
$ 65.84 | |||||
| 9 | W10103406 | Panel, Rear Console |
|
$ 135.31 | |||||
| 10 | W11778253 | Screen, Lint (Replaces: 8557857) |
|
Immediately | $ 54.63 | ||||
| 11 | W10365084 | Panel, Control |
|
- | |||||
| 12 | WP90767 | Screw, 8-18 X 5/16 (Replaces: 90767) |
|
Immediately | $ 8.25 | ||||
| 13 | W11693756 | Screw, 8-18 X 5/8 (Replaces: 688983) |
|
Immediately | $ 14.76 | ||||
| 14 | WP8536939 | Clip, Spring (Replaces: 8536939) |
|
Immediately | $ 8.20 | ||||
| 16 | WP8563663 | Top (Replaces: 8559800) |
|
Immediately | $ 349.25 | ||||
| 17 | W10034770 | Knob, Push-to-start |
|
- | |||||
| 21 | WP8299781 | Timer, 60 Hz. (Replaces: 8299781) |
|
Immediately | $ 380.55 | ||||
| 22 | W10034750 | Timer Knob Assembly |
|
$ 28.27 | |||||
| 23 | W10386309 | Harness, Wiring |
|
- | |||||
| 24 | WP3977456 | Switch, Push-to-start (Replaces: 3977456) |
|
Immediately | $ 26.66 |
