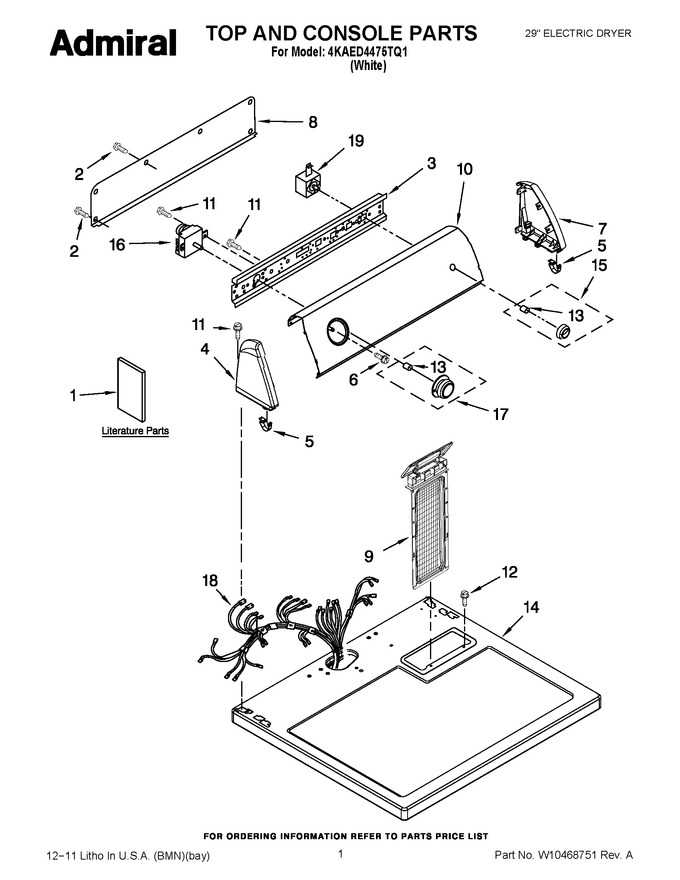

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10396178		Wiring Diagram		Appelez-nous	-
1	W10131617		Guide, Use & Care (english)		Appelez-nous	-
1	W10131618		Guide, Use & Care (arabic)		Appelez-nous	-
1	W10131613		Instructions, Installation (english)		Appelez-nous	-
1	W10131614		Instructions, Installation (arabic)		Appelez-nous	-
1	W10131621		Sheet, Cycle Feature (english)		Appelez-nous	-
1	W10131622		Sheet, Cycle Feature (arabic)		Appelez-nous	-
2	WP693995		Screw, Hex Head   (Replaces: 693995)			Immediately	$ 7.55
3	8579672		Bracket-control		Appelez-nous	-
4	8579674		Cap, End (l.h.)		Appelez-nous	-
5	WP8312709		Clip-console   (Replaces: 8312709)			Immediately	$ 16.35
6	3400859		Screw, Grounding   (Replaces: 8533951)				$ 13.88
7	8579673		Cap, End (r.h.)		Appelez-nous	-
8	W10103406		Panel, Rear Console   (Replaces: 8274261)				$ 135.31
9	W11778253		Screen, Lint   (Replaces: 8557857)			Immediately	$ 54.63
10	W10115454		Panel, Control		Appelez-nous	-
11	WP90767		Screw, 8-18 X 5/16   (Replaces: 8533971)			Immediately	$ 8.25
12	W11693756		Screw, 8-18 X 5/8   (Replaces: 688983)			Immediately	$ 14.76
13	WP8536939		Clip, Spring   (Replaces: 8536939)			Immediately	$ 8.20
14	WP8563663		Top   (Replaces: 8559800)			Immediately	$ 349.25
15	W10110065		Knob, Push-to-start				$ 87.57
16	WP8299781		Timer, 60 Hz.   (Replaces: 8299781)			Immediately	$ 380.55
17	W10110064		Timer Knob Assembly				$ 26.97
18	W10386309		Harness, Wiring		Appelez-nous	-
19	WP3977456		Switch, Push-to-start   (Replaces: 3977456)			Immediately	$ 26.66
