SELECT A DIAGRAM

Diagram for 01 - Glass Cartridge
01 - Glass Cartridge


New Model Search:


1-855-472-4566
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 8119P297-60 Tech Sheet (english) Appelez-nous -
1 8119P298-60 Tech Sheet (french) Appelez-nous -
1 9762761 Tips For Safer Cooking Appelez-nous -
1 8111P465-60 Use & Care Guide Appelez-nous -
2 7920P204-60 Glass/frame Assy. Appelez-nous -
3 4005F786-51 Cover, Junction Box Appelez-nous -
4 4011F493-51 Bottom, Burner Box Appelez-nous -
5 7406P470-60 Element (6``) Appelez-nous -
6 7406P471-60 Element (8``) Appelez-nous -
7 5171P759-60 Harness, Main Appelez-nous -
8 8004P093-60 Support, Element Special Order $ 10.61

10 WP90767 Screw   (Replaces: 7101P426-60) In-Stock Immediately $ 8.25

11 5171P758-60 Harness, Light Appelez-nous -
12 7002P481-60 Insulation Appelez-nous -
13 WP71002569 Gasket, Switch   (Replaces: 7201P077-60) In-Stock Immediately $ 10.57

14 WP90767 Screw   (Replaces: 7101P426-60) In-Stock Immediately $ 8.25

15 3605F349-51 Plate, Switch Appelez-nous -
16 4005F784-51 Cover, Access Appelez-nous -
17 8008P068-60 Grommet, Wire Special Order $ 16.79

18 3801F915-51 Bracket, Hold Down Appelez-nous -
19 7104P015-60 Clip Appelez-nous -
20 WPW10281322 Kit, Wire Adapter   (Replaces: 7401P157-60) Special Order $ 8.87

21 7101P678-60 Screw Appelez-nous -
22 WP74008252 Switch, Infinite   (Replaces: 7403P848-60) Special Order $ 185.16

23 WPW10293874 Grommet   (Replaces: 8008P076-60) In-Stock Immediately $ 8.46

24 7737P401-60 Knob Appelez-nous -
25 WP7101P309-60 Screw   (Replaces: 7101P309-60) In-Stock Immediately $ 7.30


    View Diagram in Separate Window     Print Icon   Print Part List

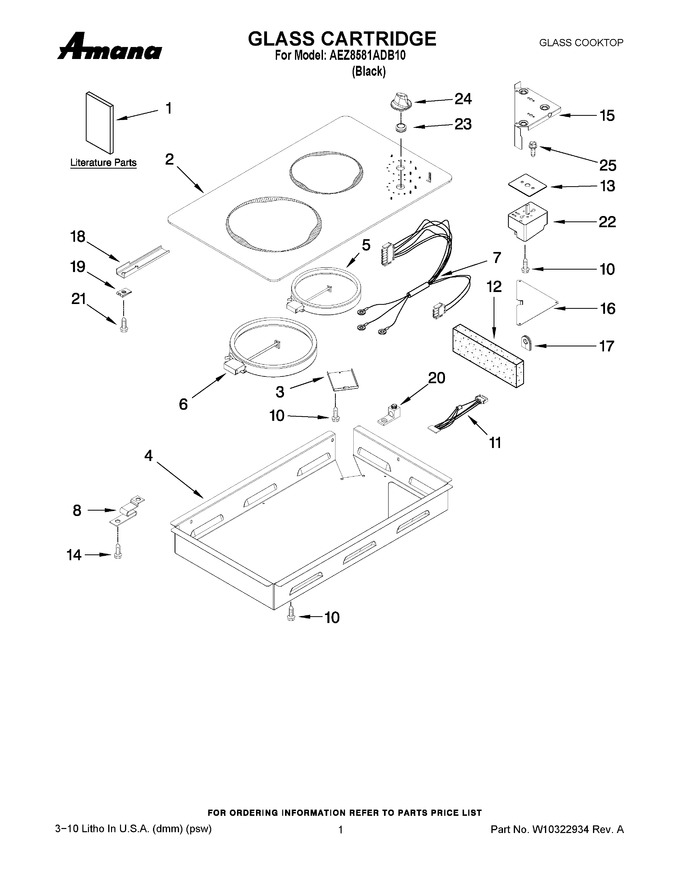

Diagram for AEZ8581ADB10
