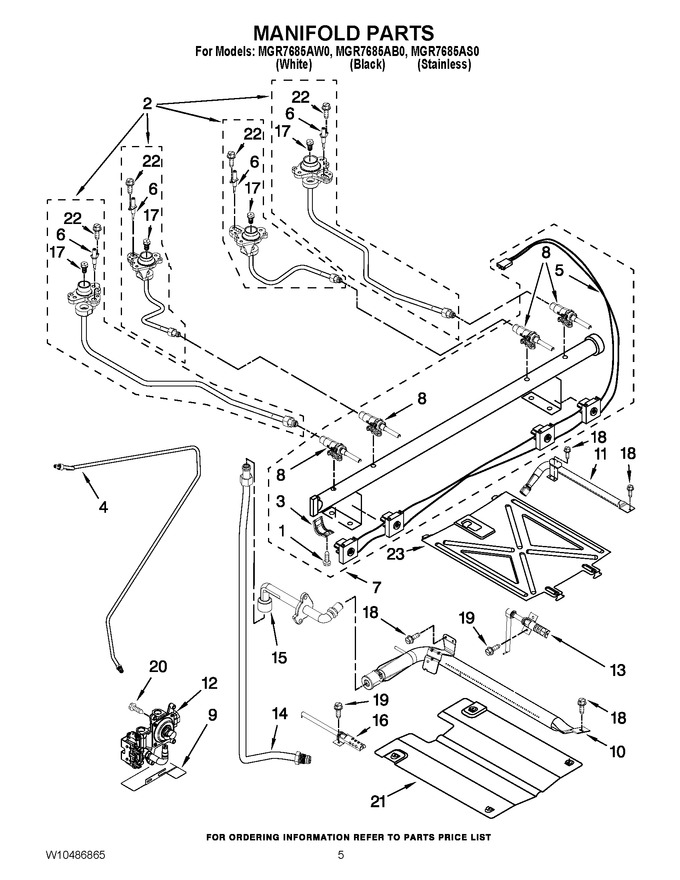

04 - Manifold Parts


05 - Door Parts


06 - Drawer And Rack Parts


07 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10295997		Screw, Valve				$ 7.32
2	W10347411		Holder, Orifice ((lf) 15k)				$ 45.63
2	W10157418		Holder, Orifice ((lr) 9.5k)				$ 49.23
2	WPW10157415		Holder, Orifice ((rr) 5k)   (Replaces: W10157415)				$ 115.46
2	WPW10347410		Holder, Orifice ((rf) 15k)   (Replaces: W10347410)				$ 111.56
3	W10949105		Bracket, Saddle   (Replaces: W10295996)				$ 22.75
4	W11680399		Tubing, Main Supply   (Replaces: W10215439)				$ 159.35
5	WPW10295998		Harness, Igniter Includes Switches   (Replaces: W10295998)				$ 228.23
6	WPW10216419		Ignitor, Top Burner   (Replaces: W10216419)			Immediately	$ 36.72
7	W10314241		Assembly, Manifold		Appelez-nous	-
8	WPW10279615		Valve (lf/rf)   (Replaces: W10279615)				$ 258.91
8	WPW10279614		Valve (lr)   (Replaces: W10279614)				$ 279.81
8	WPW10247744		Valve (rr)   (Replaces: W10247744)				$ 280.12
9	W10224921		Bracket, Regulator		Appelez-nous	-
10	WP8054078		Burner, Broiler   (Replaces: 8054078)				$ 239.36
11	WP9758078		Burner, Bake   (Replaces: 9758078)				$ 226.07
12	WPW10602001		Valve/regulator   (Replaces: W10224914)				$ 340.97
13	WP9758079		Electrode, Bake   (Replaces: 9758079)			Immediately	$ 41.01
14	W10420040		Tubing (broiler Fitting To Valve)				$ 194.54
15	W10340259		Fitting, Broiler		Appelez-nous	-
16	WP8054129		Electrode, Broil   (Replaces: 8054129)			Immediately	$ 137.14
17	WPW10170506		Orifice, Burner (left Rear)   (Replaces: W10170506)				$ 97.85
17	WPW10170508		Orifice, Burner (right Rear)   (Replaces: W10170508)				$ 95.21
17	WPW10347414		Orifice, Burner (lf/rf)   (Replaces: W10347414)				$ 90.50
18	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 14.72
19	W11684507		Screw   (Replaces: 3196385)				$ 14.27
20	WP3400016		Screw   (Replaces: 3400016)				$ 8.39
21	W10137062		Baffle, Broil Burner		Appelez-nous	-
22	WP8273062		Screw   (Replaces: 8273062)			Immediately	$ 7.91
23	WPW10184491		Spreader, Flame   (Replaces: W10184491)				$ 253.52
NI	WPW10170534		Lp Kit, Surface Burners   (Replaces: W10170534)				$ 110.89
NI	WPW10400495		Orifice, Lp Bake   (Replaces: W10400495)				$ 94.32
NI	WPW10400498		Orifice, Lp Broil   (Replaces: W10400498)				$ 116.21
