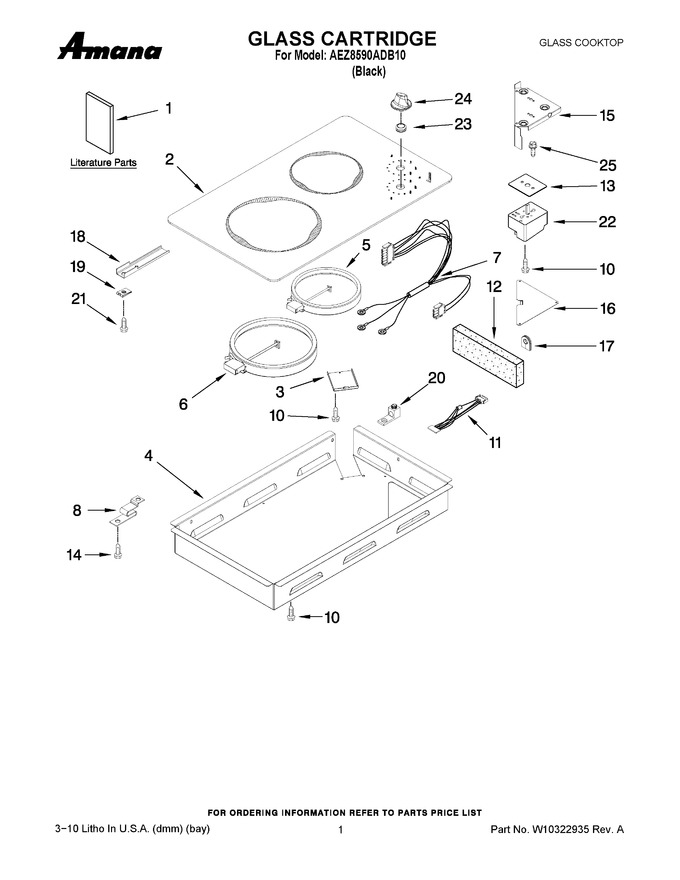

01 - Glass Cartridge


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8119P294-60		Tech Sheet (english)		Appelez-nous	-
1	8119P295-60		Tech Sheet (french)		Appelez-nous	-
1	9762761		Tips For Safer Cooking		Appelez-nous	-
1	8111P465-60		Use & Care Guide		Appelez-nous	-
2	7920P204-60		Glass/frame Assy.		Appelez-nous	-
3	4005F786-51		Cover, Junction Box		Appelez-nous	-
4	4011F493-51		Bottom, Burner Box		Appelez-nous	-
5	W10823711		Element (6``)   (Replaces: 8523698)			Immediately	$ 204.39
6	WP74011005		Element (8``)   (Replaces: 7406P420-60)			Immediately	$ 322.00
7	5171P723-60		Harness, Main		Appelez-nous	-
8	8004P093-60		Support, Element				$ 10.61
10	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 8.25
11	5171P722-60		Harness, Light		Appelez-nous	-
12	7002P481-60		Insulation		Appelez-nous	-
13	WP71002569		Gasket, Switch   (Replaces: 7201P077-60)			Immediately	$ 10.57
14	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 8.25
15	3605F349-51		Plate, Switch		Appelez-nous	-
16	4005F784-51		Cover, Access		Appelez-nous	-
17	8008P068-60		Grommet, Wire				$ 16.79
18	3801F915-51		Bracket, Hold Down		Appelez-nous	-
19	7104P015-60		Clip		Appelez-nous	-
20	WPW10281322		Kit, Wire Adapter   (Replaces: 7401P157-60)				$ 8.87
21	7101P678-60		Screw		Appelez-nous	-
22	7450P062-60		Switch, Infinite		Appelez-nous	-
23	WPW10293874		Grommet   (Replaces: 8008P076-60)			Immediately	$ 8.46
24	7737P401-60		Knob		Appelez-nous	-
25	WP7101P309-60		Screw   (Replaces: 7101P309-60)			Immediately	$ 7.30
