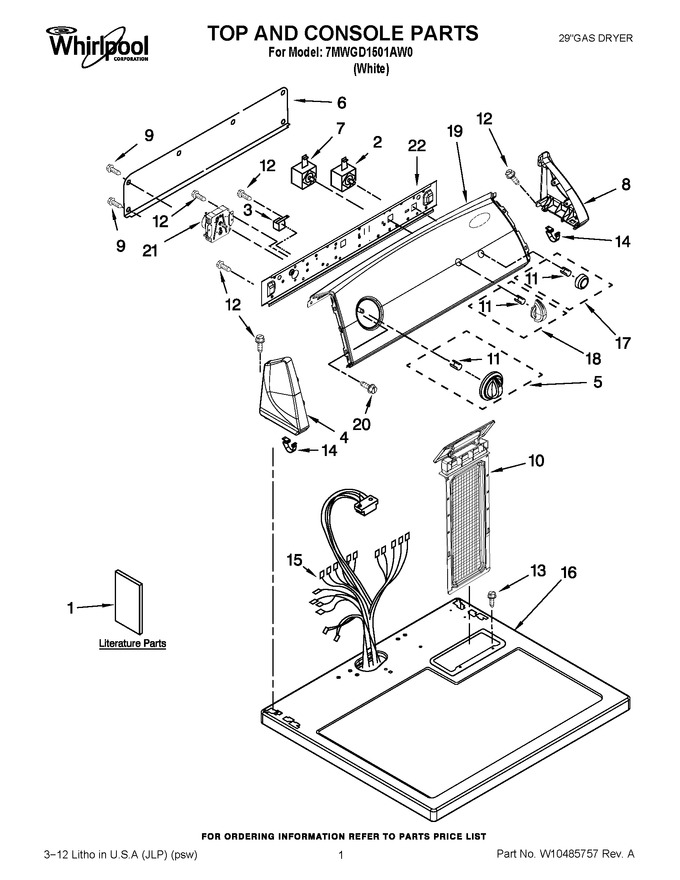

01 - Top And Console Parts
02 - Cabinet Parts
03 - Bulkhead Parts
04 - Optional Parts (not Included)
05 - W10336852 Burner Assembly
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10329763 | Instructions, Installation |
|
- | |||||
| 1 | W10470333 | Use & Care Guide |
|
- | |||||
| 1 | 8576796 | Wiring Diagram |
|
- | |||||
| 2 | WP3977456 | Switch, Push-to-start (Replaces: 3977456) |
|
Immediately | $ 26.66 | ||||
| 3 | WP694419 | Buzzer, Mini (Replaces: 694419) |
|
$ 134.05 | |||||
| 4 | WP8565957 | Cap, End (l.h.) (Replaces: 8566035) |
|
$ 64.76 | |||||
| 5 | W10034750 | Knob, Timer Assembly |
|
$ 28.27 | |||||
| 6 | W10103406 | Panel, Rear Console |
|
$ 135.31 | |||||
| 7 | 3405152 | Switch, Rotary |
|
$ 131.07 | |||||
| 8 | WP8565954 | Cap, End (r.h.) (Replaces: 8566032) |
|
$ 65.84 | |||||
| 9 | WP693995 | Screw, Hex Washer Head (Replaces: 693995) |
|
Immediately | $ 7.55 | ||||
| 10 | W11778253 | Screen, Lint (Replaces: 8557857) |
|
Immediately | $ 54.63 | ||||
| 11 | WP8536939 | Clip, Spring (Replaces: 8536939) |
|
Immediately | $ 8.20 | ||||
| 12 | WP90767 | Screw, 8-18 X 5/16 (Replaces: 3348629) |
|
Immediately | $ 8.25 | ||||
| 13 | W11693756 | Screw, 8-18 X 5/8 (Replaces: 688983) |
|
Immediately | $ 14.76 | ||||
| 14 | WP8312709 | Clip, Console (Replaces: 8312709) |
|
Immediately | $ 16.35 | ||||
| 15 | 8299876 | Harness, Wiring |
|
- | |||||
| 16 | WP8563663 | Top (Replaces: 8559800) |
|
Immediately | $ 349.25 | ||||
| 17 | W10034770 | Knob, Push To Start |
|
- | |||||
| 18 | W10034380 | Knob, Control |
|
$ 25.06 | |||||
| 19 | W10466822 | Panel, Control |
|
- | |||||
| 20 | WP3390631 | Screw, Grounding (Replaces: 3390631) |
|
$ 8.25 | |||||
| 21 | WP3977678 | Timer Assembly (60 Hz.) (Replaces: 3977678) |
|
$ 332.54 | |||||
| 22 | 8566052 | Bracket, Control |
|
- |
